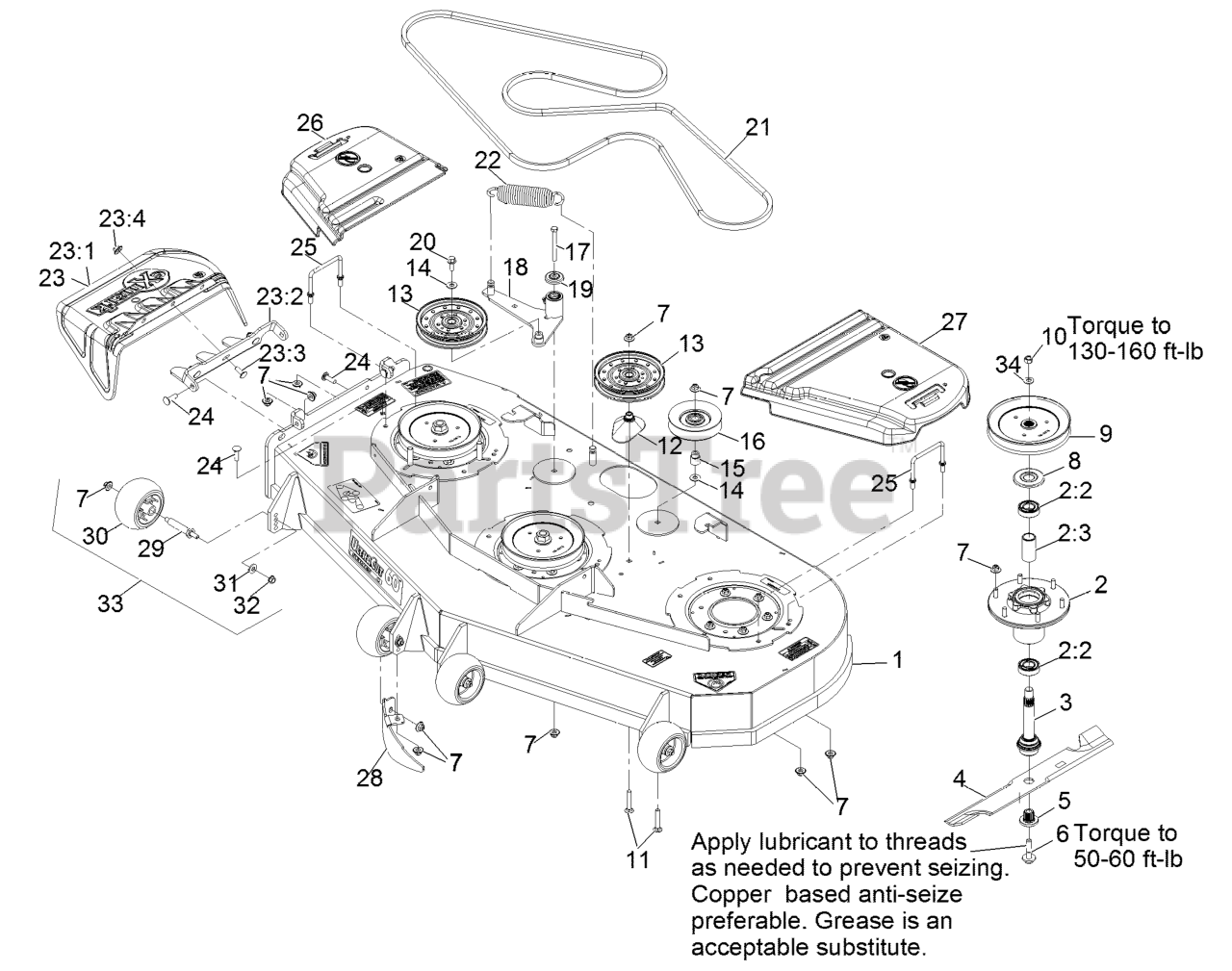

VT740EKC604 - Exmark 60" Vantage Stand-On Mower, Kohler ECV740 EFI (SN: 312000000 - 312999999) (2012) Deck Assembly Parts Diagram

60" Vantage Stand-On Mower, Kohler ECV740 EFI

Deck Assembly Parts Diagram

  • Title

1

Exmark 116-5029

DECK ASM-604

$3423.99

$

Usually ships in 3-6 days

0

2

Exmark 116-3344

ASM-CUTTER HSG WITH BEARINGS

$158.99

$

In Stock, Qty 20+

0

2:2

Exmark 116-0720

BEARING-BALL

$22.99

$

In Stock, Qty 18

0

2:3

Exmark 116-3312

SPACER-BEARING

$9.49

$

In Stock, Qty 6

0

3

Exmark 116-3341

ASM-SPINDLE AND SEAL

Note: Apply Mobil HTS grease (P/N 103-5217 1.5 oz packet) (or a food-grade anti-seize). See operator s manual for locations.

$89.99

$

In Stock, Qty 15

0

4

Exmark 103-6388

103-6388-S
(Superseded to 103-6388-S)

$37.99

$

In Stock, Qty 20+

0

4

Exmark 103-6383

103-6383-S
(Superseded to 103-6383-S)

$34.99

$

In Stock, Qty 5

0

4

Exmark 116-5174

Blade-Extreme 2, 20.50"

$

$

Currently unavailable

4

Exmark 103-6403

103-6403-S
(Superseded to 103-6403-S)

$31.99

$

In Stock, Qty 20+

0

4

Exmark 103-6393

103-6393-S
(Superseded to 103-6393-S)

Note: Requires installation of mulch kit for proper mulching. See your Exmark dealer for details.

$30.99

$

In Stock, Qty 20+

0

5

Exmark 103-3037

BUSHING,SPLINED

$22.99

$

In Stock, Qty 20+

0

6

Exmark 109-9220

SCREW,SEMS 1/2-20 X 2.19

$8.49

$

In Stock, Qty 20+

0

7

Exmark 109-6658

Nut-Nyloc 3/8-16 Flg

$1.49

$

Usually ships in 3-6 days

0

8

Exmark 116-1286

GUARD,BEARING TOP .989

$5.49

$

In Stock, Qty 10

0

9

Exmark 116-0676

SHEAVE,BLADE DRIVE 7.25

Note: Apply Mobil HTS grease (P/N 103-5217 1.5 oz packet) (or a food-grade anti-seize). See operator s manual for locations.

$68.99

$

In Stock, Qty 20+

0

10

Exmark 116-7306

NUT-HEX

$2.99

$

In Stock, Qty 11

0

11

Exmark 3231-7

Bolt-Carriage 3/8-16 X 2 1/4

$6.99

$

In Stock, Qty 15

0

12

Exmark 109-2872

SPACER-PULLEY

$22.99

$

Usually ships in 3-6 days

0

13

Exmark 116-4667

126-7685
(Superseded to 126-7685)

$62.99

$

In Stock, Qty 14

0

14

Exmark 3256-4

WASHER-FLAT

$1.99

$

In Stock, Qty 20+

0

15

Exmark 1-633456

BUSHING-IDLER

$5.49

$

In Stock, Qty 20+

0

16

Exmark 1-603805

PULLEY-IDLER

$54.99

$

In Stock, Qty 14

0

17

Exmark 3231-5

SCREW-CARR

$1.49

$

In Stock, only 2 left!

0

18

Exmark 116-6045

DECK IDLER ASM

$142.99

$

Usually ships in 3-6 days

0

19

Exmark 103-2916

GUARD-TOP

$2.99

$

In Stock, Qty 9

0

20

Exmark 3234-11

SCREW-HHF

$4.49

$

In Stock, Qty 20+

0

21

Exmark 99-4627

V-BELT
(Superseded to 99-4627-SL)

$180.99

$

Usually ships in 3-6 days

0

22

Exmark 116-6317

SPRING-EXTENSION

$28.99

$

In Stock, Qty 11

0

23

Exmark 109-7188

ASM,DISCHARGE CHUTE

$104.99

$

In Stock, only 2 left!

0

23:1

Exmark 109-2738

CHUTE,DISCHARGE

$74.99

$

In Stock, Qty 7

0

23:2

Exmark 109-8675-01

BRACKET,DISCHARGE CHUTE

$51.99

$

In Stock, only 1 left!

0

23:3

Exmark 3231-22

SCREW-CARR

$3.49

$

In Stock, Qty 20+

0

23:4

Exmark 109-6658

Nut-Nyloc 3/8-16 Flg

$1.49

$

Usually ships in 3-6 days

0

24

Exmark 3231-28

Bolt-Carriage 3/8-16 X 1 1/4

$4.49

$

In Stock, Qty 20+

0

25

Exmark 109-6982

WIREFORM-COVER

$11.99

$

In Stock, only 4 left!

0

26

Exmark 116-0094

COVER-BELT, RH

$86.99

$

In Stock, only 4 left!

0

27

Exmark 109-6938

COVER-BELT, LH

$96.99

$

In Stock, only 2 left!

0

28

Exmark 116-5614-01

DOGLEG - LZ60

$60.99

$

Usually ships in 3-6 days

0

29

Exmark 99-2842

126-2928
(Superseded to 126-2928)

$27.99

$

In Stock, Qty 7

0

30

Exmark 1-603299

ROLLER-SCALP, ANTI

$23.99

$

In Stock, Qty 20+

0

31

Exmark 98-5975

WASHER-BELLEVILLE

$3.49

$

In Stock, Qty 20+

0

32

Exmark 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

33

Exmark 103-4051

116-9981
(Superseded to 116-9981)

$52.99

$

In Stock, Qty 20+

0

34

Exmark 103-2802

WASHER

$5.49

$

In Stock, Qty 16

0
