VT691KA524CA - Exmark 52" Vantage Stand-On Mower, Kawasaki FS691V, CARB (SN: 312000000 - 312999999) (2012) Wheel Motor Assembly No. 116-4851 Parts Diagram

52" Vantage Stand-On Mower, Kawasaki FS691V, CARB

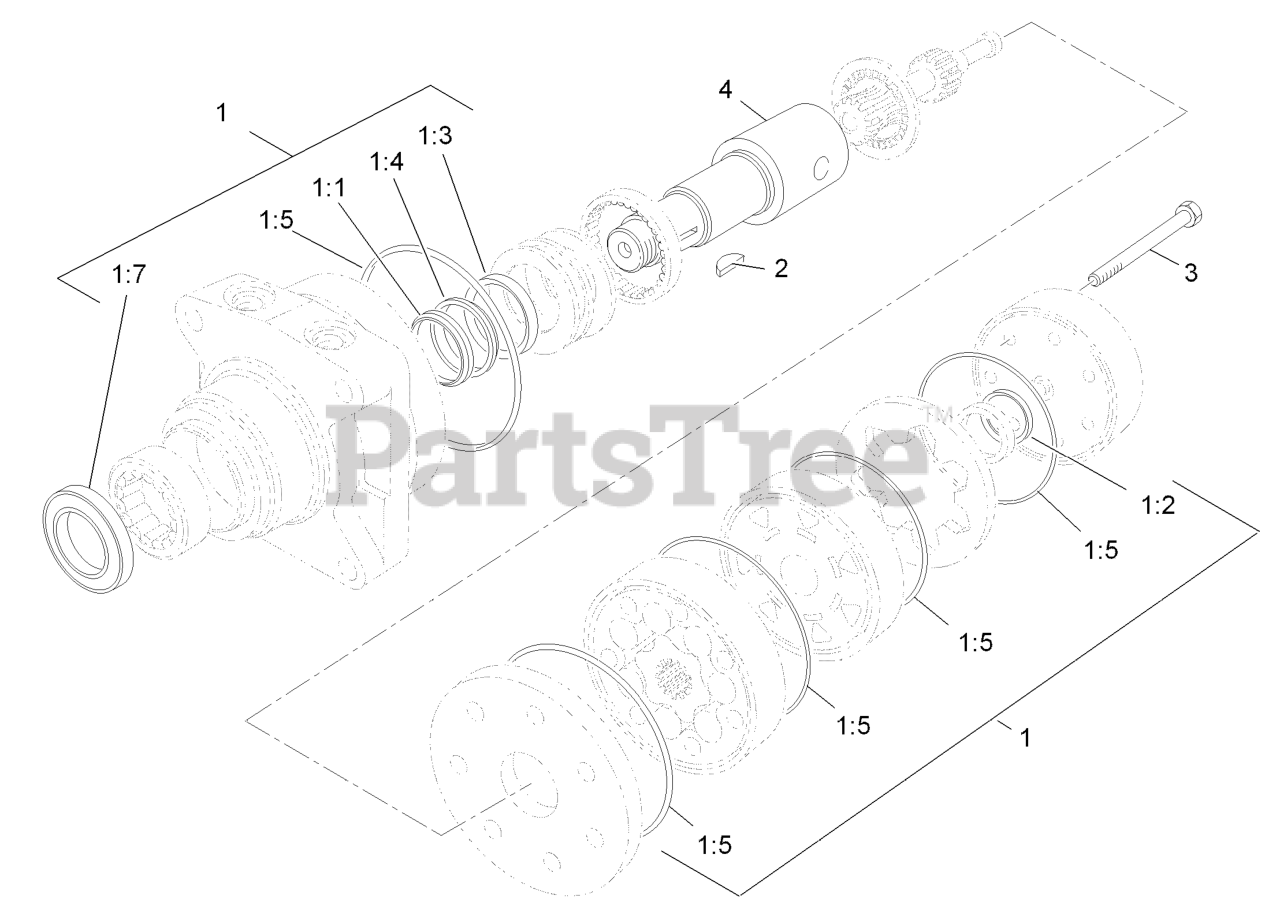

Wheel Motor Assembly No. 116-4851 Parts Diagram

  • Title
1

Exmark 1-000119

SEAL KIT

$201.99

$

In Stock, only 2 left!

0

1:1

Ring-Back Up

Note: (Not Used) Not serviced separately

$

$

Not available

1:2

Seal-Commutator

Note: (Not Used) Not serviced separately

$

$

Not available

1:3

Seal-Shaft (Viton)

Note: (Not Used) Not serviced separately

$

$

Not available

1:4

Washer-Back Up, Steel

Note: (Not Used) Not serviced separately

$

$

Not available

1:5

Ring-Seal (Viton)

Note: (Not Used) Not serviced separately

$

$

Not available

1:7

Seal-Dirt And Water

Note: (Not Used) Not serviced separately

$

$

Not available

2

Exmark 3257-8

KEY-WOODRUFF

$5.49

$

In Stock, Qty 5

0

3

Exmark 106-5549

BOLT-SPECIAL

$13.99

$

Usually ships in 3-6 days

0

4

Exmark 106-8764

SHAFT-COUPLING

$927.99

$

Usually ships in 3-6 days

0
