VT691KA524CA - Exmark 52" Vantage Stand-On Mower, Kawasaki FS691V, CARB (SN: 312000000 - 312999999) (2012) Engine Assembly Parts Diagram

52" Vantage Stand-On Mower, Kawasaki FS691V, CARB

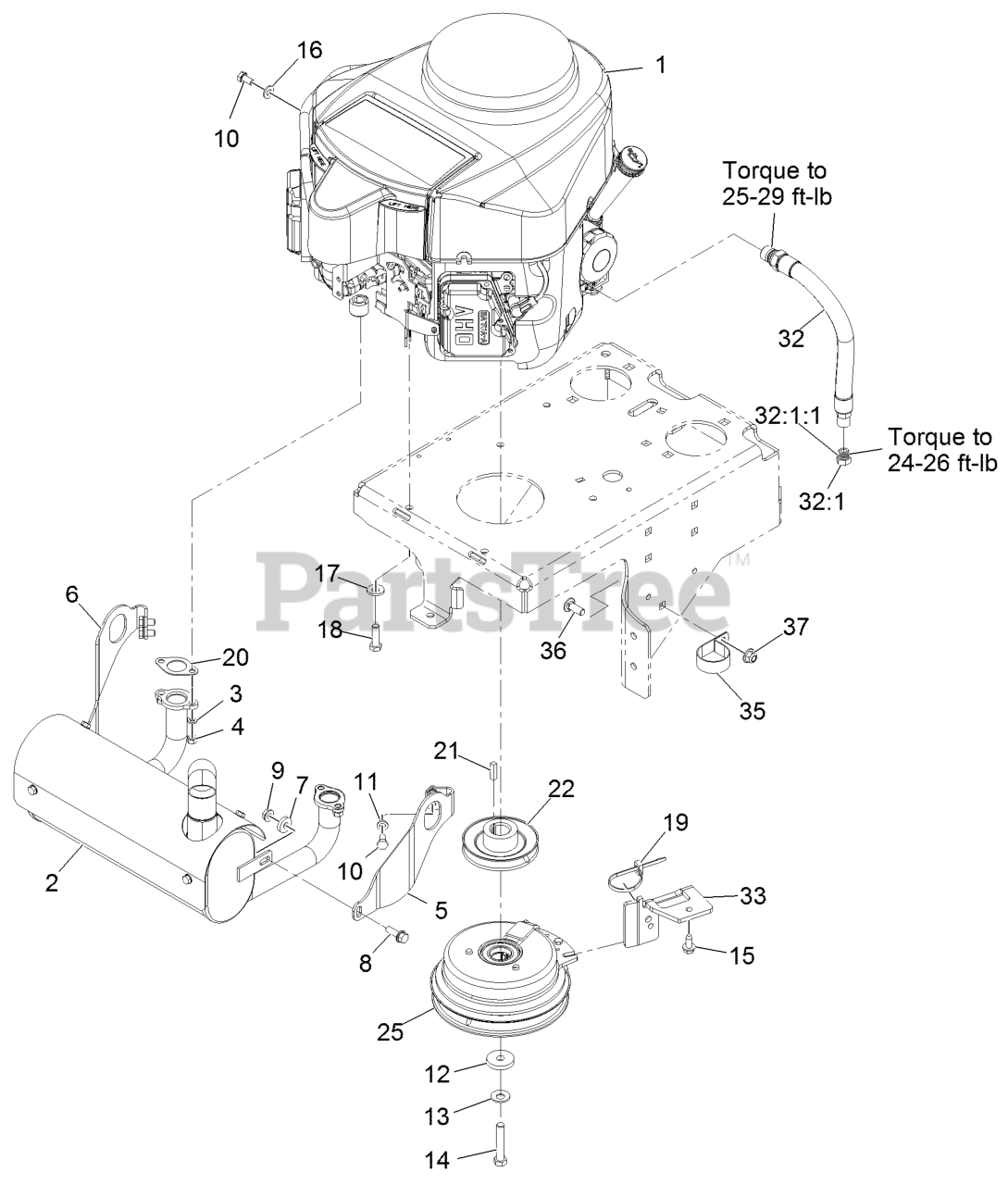

Engine Assembly Parts Diagram

  • Title
1

Engine-Kawasaki

Note: (Not Used) Not serviced separately, Obtain parts from www.kawpowerepc.com

$

$

Not available

2

Exmark 116-2352

116-8747
(Superseded to 116-8747)

$395.99

$

In Stock, only 1 left!

0

3

Exmark 114-3550

WASHER-LOCK

$1.49

$

In Stock, Qty 6

0

$1.99

$

In Stock, Qty 20+

0

5

Exmark 116-2353

BRACKET-MUFFLER MOUNT, LH

$70.99

$

In Stock, only 1 left!

0

6

Exmark 116-2354

BRACKET-MUFFLER MOUNT, RH

$70.99

$

In Stock, only 1 left!

0

7

$1.49

$

In Stock, only 2 left!

0

8

Exmark 3234-29

SCREW-HHF

$2.99

$

In Stock, Qty 14

0

9

$3.49

$

In Stock, Qty 12

0

10

Exmark 33114-016

SCREW-HH

$0.99

$

In Stock, only 4 left!

0

11

Exmark 3253-4

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

12

$6.49

$

In Stock, only 1 left!

0

13

Exmark 1-603610

WASHER-SPRING

$5.49

$

In Stock, Qty 5

0

14

Exmark 3212-9

SCREW-HH

Note: Use Pro-Lock, Nut Type (P/N 1-840022, .5ml tube) on threads.

$12.99

$

Usually ships in 3-6 days

0

15

Exmark 32144-70

Screw-HWH 5/16-18 X 3/4 Tf

$2.99

$

In Stock, Qty 20+

0

16

Exmark 33094-00

WASHER-PLAIN

$0.99

$

In Stock, only 2 left!

0

17

Exmark 98-5975

WASHER-BELLEVILLE

$3.49

$

In Stock, Qty 20+

0

18

Exmark 323-7

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

19

Exmark 3290-378

TIE-CABLE

$0.99

$

In Stock, Qty 8

0

20

Exmark 1-653313

GASKET-EXHAUST

$4.99

$

Usually ships in 3-6 days

0

$2.99

$

In Stock, only 2 left!

0

22

$80.99

$

Usually ships in 3-6 days

0

25

Exmark 116-3553

CLUTCH-WARNER

$460.99

$

Usually ships in 3-6 days

0

32

Exmark 116-4924

ENGINE OIL DRAIN HOSE ASM

$37.99

$

In Stock, Qty 5

0

32:1

Exmark 353-508

PLUG-HH

$8.49

$

In Stock, only 1 left!

0

32:1:1

Exmark 237-42

O-RING

$2.99

$

In Stock, Qty 9

0

33

Exmark 116-3811-01

BRACKET-ANCHOR, CLUTCH

$38.99

$

Usually ships in 3-6 days

0

35

Exmark 2412-147

CLAMP-R

$9.49

$

Usually ships in 3-6 days

0

36

Exmark 3231-22

SCREW-CARR

$3.49

$

In Stock, Qty 20+

0

37

Exmark 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0
