VT651KA484 - Exmark 48" Vantage Stand-On Mower, Kawasaki FS651V (SN: 312000000 - 312999999) (2012) Platform Assembly No. 116-1804 Parts Diagram

48" Vantage Stand-On Mower, Kawasaki FS651V

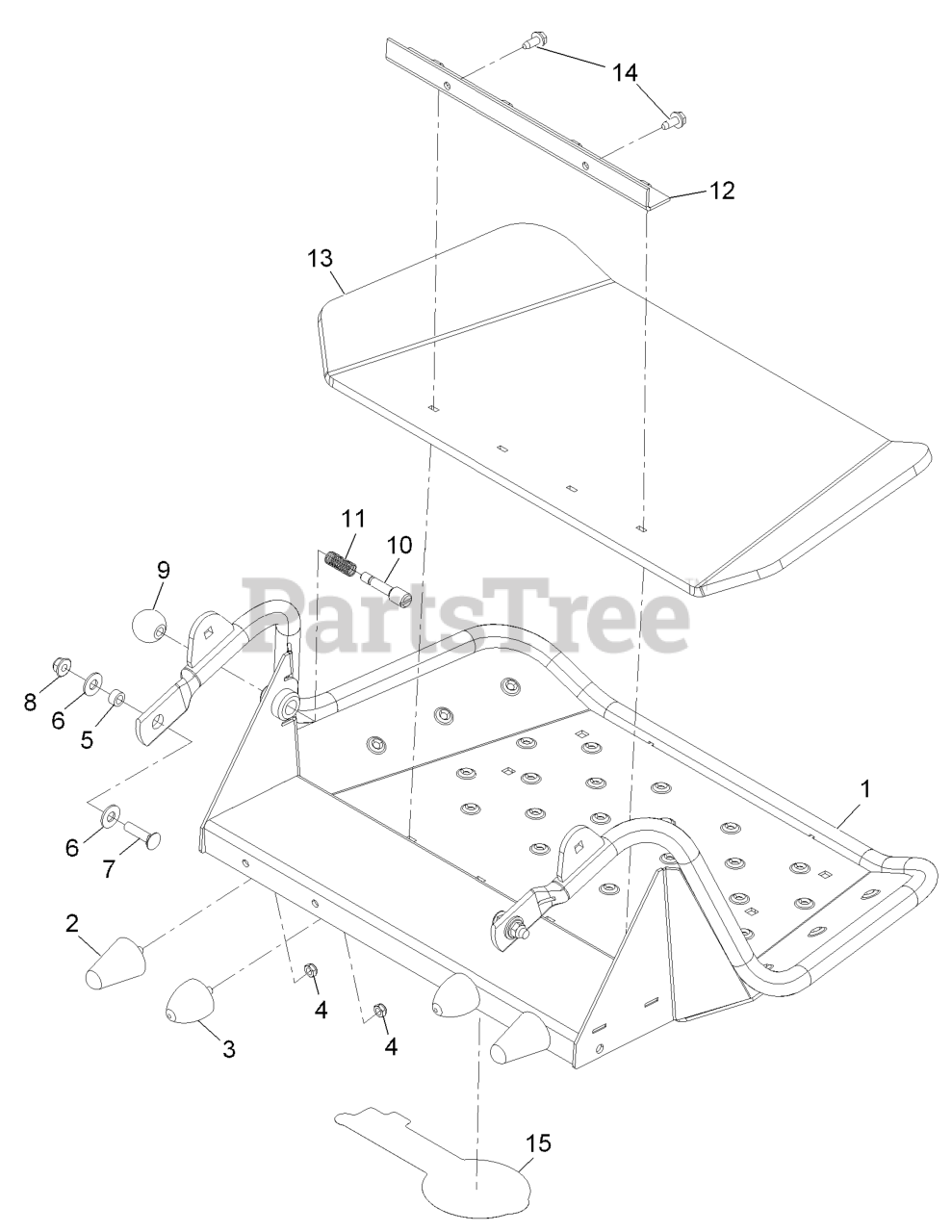

Platform Assembly No. 116-1804 Parts Diagram

  • Title

1

Exmark 117-9641-03

PLATFORM ASM

$562.99

$

Usually ships in 3-6 days

0

2

Exmark 114-1925

BUMPER-RUBBER

$26.99

$

In Stock, only 1 left!

0

3

Exmark 114-1926

BUMPER-RUBBER

$28.99

$

Usually ships in 3-6 days

0

4

Exmark 3296-47

NUT-LOCK, NI

$3.99

$

In Stock, Qty 12

0

5

Exmark 111044

SPACER

$1.49

$

In Stock, Qty 20+

0

6

Exmark 3256-4

WASHER-FLAT

$1.99

$

In Stock, Qty 20+

0

7

Exmark 3231-4

SCREW-CARR

$3.99

$

In Stock, Qty 20+

0

8

Exmark 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

9

Exmark 1-603175

KNOB-BALL

$11.99

$

In Stock, Qty 7

0

10

Exmark 119-8650

PIN-LATCH

Note: Use Pro-Lock, Nut Type (P/N 1-840022, .5ml tube) on threads.

$20.99

$

In Stock, only 1 left!

0

11

Exmark 114-5348

SPRING

$2.99

$

In Stock, Qty 20+

0

12

Exmark 114-1920-03

CLAMP-SHIELD

$43.99

$

Usually ships in 3-6 days

0

13

Exmark 114-5349

126-7157
(Superseded to 126-7157)

$110.99

$

In Stock, only 1 left!

0

14

Exmark 32144-70

Screw-HWH 5/16-18 X 3/4 Tf

$2.99

$

In Stock, Qty 20+

0

15

Exmark 1-653546

DECAL, EXMARK LOGO

$20.99

$

In Stock, only 3 left!

0
