VT541KA363 - Exmark 36" Vantage Stand-On Mower, Kawasaki FS541V (SN: 312000000 - 312999999) (2012) Fuel Tank Mounting Assembly Parts Diagram

36" Vantage Stand-On Mower, Kawasaki FS541V

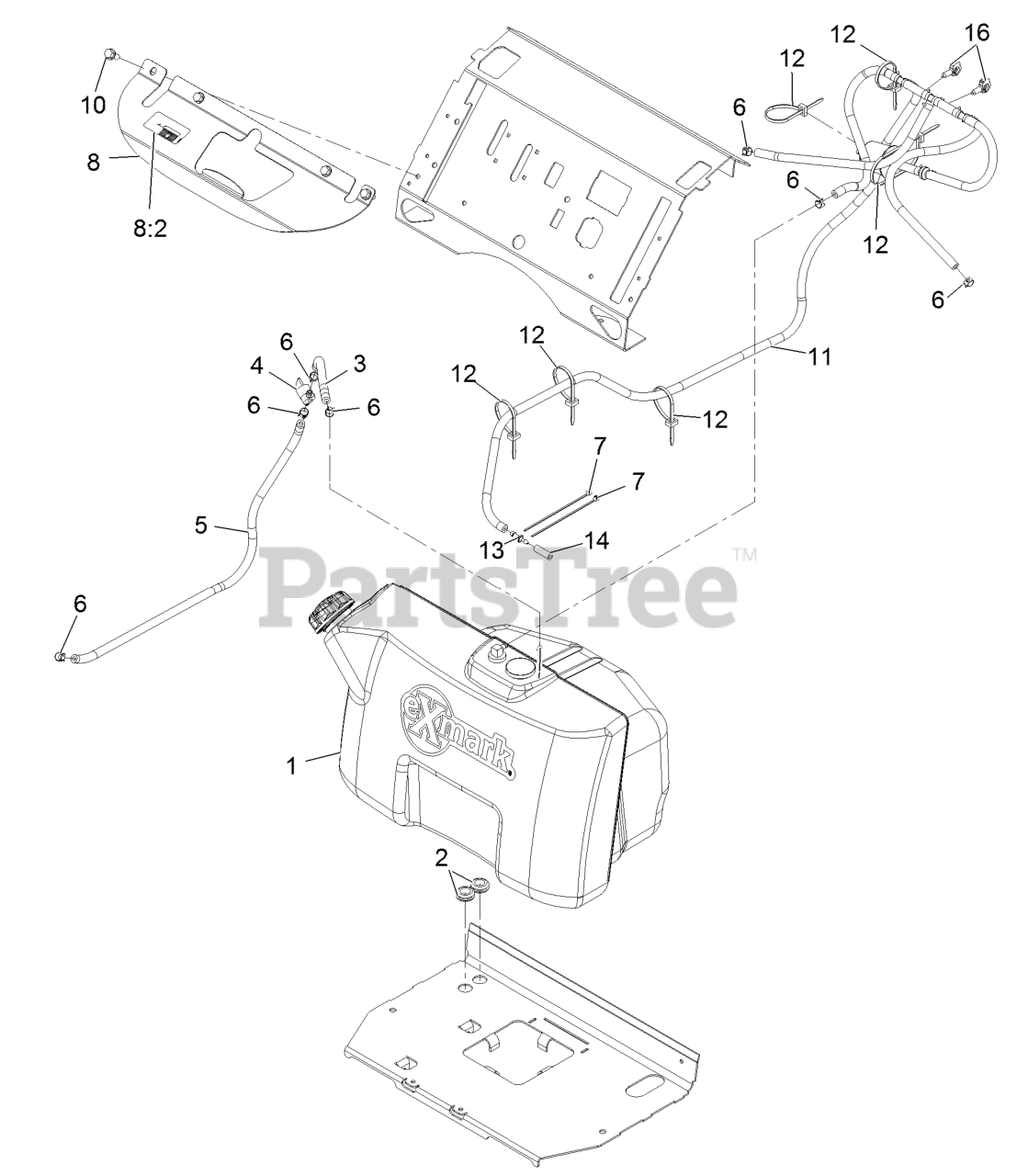

Fuel Tank Mounting Assembly Parts Diagram

  • Title

1

Exmark 116-4577

135-0647
(Superseded to 135-0647)

$834.99

$

Usually ships in 3-6 days

0

2

Exmark 112-7069

GROMMET

$3.49

$

Usually ships in 3-6 days

0

3

Exmark 107-9297

HOSE-FUEL

$7.99

$

In Stock, only 2 left!

0

4

Exmark 1-603770

VALVE-FUEL

$8.49

$

In Stock, Qty 5

0

5

Exmark 110-1872

HOSE-FUEL

$33.99

$

Usually ships in 3-6 days

0

6

Exmark 2412-98

CLAMP-HOSE

$1.49

$

In Stock, Qty 20+

0

7

Exmark 1-303287

TIE-CABLE

$1.49

$

Usually ships in 3-6 days

0

8

Exmark 116-3088

BRACKET-TANK

$74.99

$

Usually ships in 3-6 days

0

8:2

Exmark 116-3290

DECAL-FILL, FUEL

$3.49

$

In Stock, only 1 left!

0

10

Exmark 32144-11

SCREW-THD ROLL, HWH

$7.99

$

In Stock, Qty 6

0

11

Exmark 116-4636

VENT ASM

$

$

Not available

12

Exmark 3290-378

TIE-CABLE

$0.99

$

In Stock, Qty 8

0

13

Exmark 106-8150

FITTING-STRAIGHT

$3.99

$

Usually ships in 3-6 days

0

14

Exmark 51-3216

HOSE-FUEL

$5.49

$

In Stock, only 4 left!

0

16

Exmark 32180-040

CLIP-HARNESS

$2.99

$

Usually ships in 3-6 days

0
