VT24KA524CA - Exmark 52" Vantage Stand-On Mower, 24hp Kawasaki, CARB (SN: 920000 - 999999) (2011) Deck Assembly Parts Diagram

52" Vantage Stand-On Mower, 24hp Kawasaki, CARB

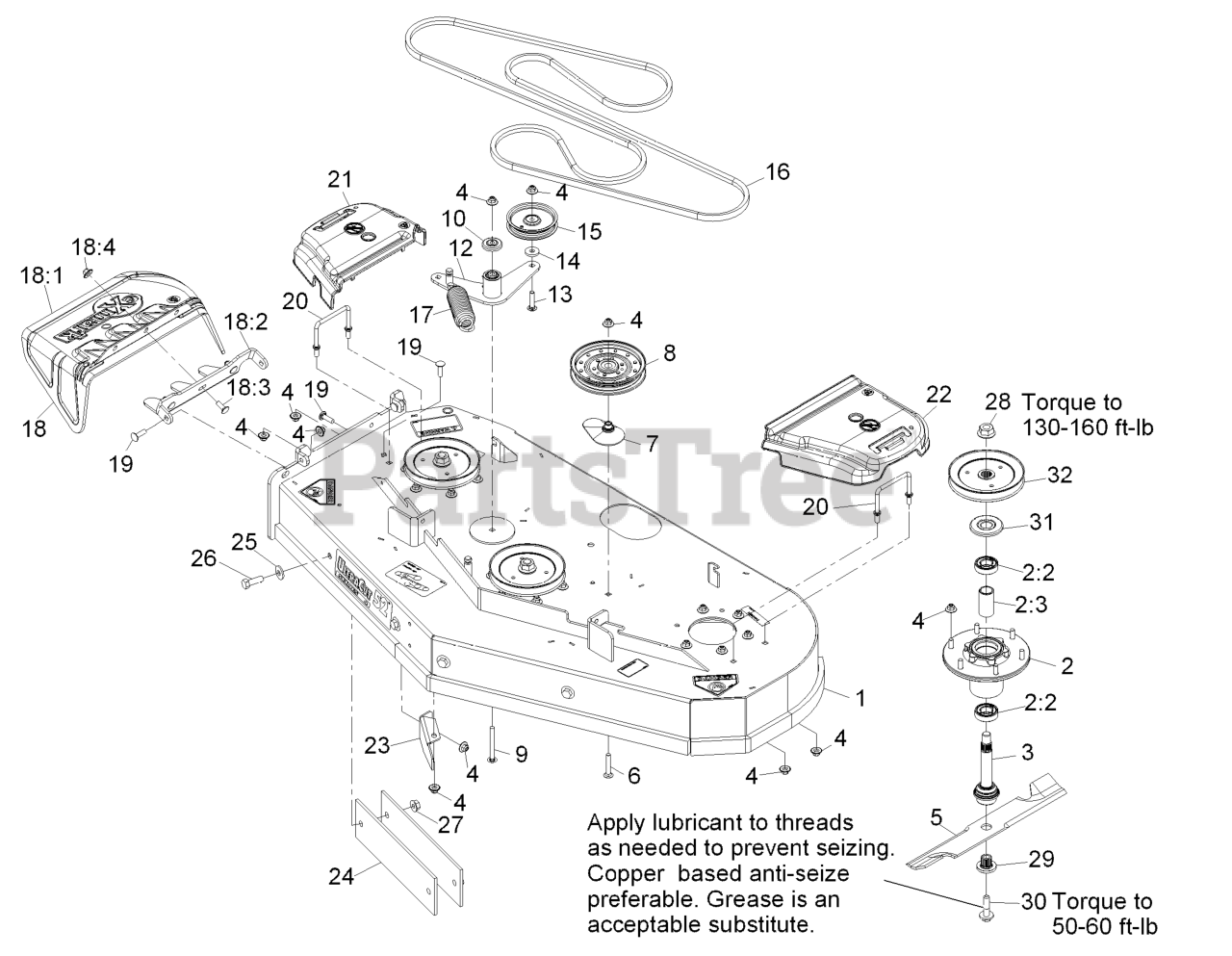

Deck Assembly Parts Diagram

  • Title

1

Exmark 116-4001

DECK ASM-524

$2894.99

$

Usually ships in 3-6 days

0

2

Exmark 116-3344

ASM-CUTTER HSG WITH BEARINGS

$158.99

$

In Stock, Qty 20+

0

2:2

Exmark 116-0720

BEARING-BALL

$22.99

$

In Stock, Qty 20+

0

2:3

Exmark 116-3312

SPACER-BEARING

$9.49

$

In Stock, Qty 5

0

3

Exmark 116-3341

ASM-SPINDLE AND SEAL

Note: Apply Mobil HTS grease (P/N 103-5217 1.5 oz packet) (or a food-grade anti-seize). See operator s manual for locations.

$89.99

$

In Stock, Qty 20+

0

4

Exmark 109-6658

Nut-Nyloc 3/8-16 Flg

$1.49

$

In Stock, Qty 20+

0

5

Exmark 103-6397

116-5175-S
(Superseded to 116-5175-S)

$30.99

$

In Stock, Qty 20+

0

5

Exmark 103-6402

103-6402-S
(Superseded to 103-6402-S)

$30.99

$

In Stock, Qty 20+

0

5

Exmark 103-6392

103-6392-S
(Superseded to 103-6392-S)

Note: Requires installation of mulch kit for proper mulching. See your Exmark dealer for details.

$30.99

$

In Stock, Qty 20+

0

5

Exmark 103-6382

103-6382-S
(Superseded to 103-6382-S)

$36.99

$

In Stock, only 4 left!

0

5

Exmark 103-6387

103-6387-S
(Superseded to 103-6387-S)

$31.99

$

In Stock, Qty 11

0

6

Exmark 3231-7

Bolt-Carriage 3/8-16 X 2 1/4

$6.99

$

In Stock, Qty 11

0

7

Exmark 109-2872

SPACER-PULLEY

$22.99

$

In Stock, Qty 20+

0

8

Exmark 1-633109

126-7685
(Superseded to 126-7685)

$62.99

$

In Stock, Qty 20+

0

9

Exmark 3231-11

SCREW-CARR

$5.49

$

In Stock, Qty 12

0

10

Exmark 103-2916

GUARD-TOP

$2.99

$

In Stock, Qty 20+

0

12

Exmark 116-3806

IDLER ARM ASM W/BEARINGS

$254.99

$

Usually ships in 3-6 days

0

13

Exmark 116-3381

SCREW-CARR SPECIAL

$2.99

$

Usually ships in 3-6 days

0

14

Exmark 1-373034

WASHER

$3.49

$

In Stock, Qty 20+

0

15

Exmark 93-1622

PULLEY-IDLER

$42.99

$

In Stock, Qty 20+

0

16

Exmark 116-3111

BELT-V
(Superseded to 116-3111-SL)

$165.99

$

Usually ships in 3-6 days

0

17

Exmark 116-0133

116-6317
(Superseded to 116-6317)

$28.99

$

In Stock, Qty 20+

0

18

Exmark 109-7188

ASM,DISCHARGE CHUTE

$115.99

$

In Stock, only 3 left!

0

18:1

Exmark 109-2738

CHUTE,DISCHARGE

$81.99

$

In Stock, Qty 20+

0

18:2

Exmark 109-8675-01

BRACKET,DISCHARGE CHUTE

$54.99

$

In Stock, only 1 left!

0

18:3

Exmark 3231-22

SCREW-CARR

$3.49

$

In Stock, Qty 20+

0

18:4

Exmark 109-6658

Nut-Nyloc 3/8-16 Flg

$1.49

$

In Stock, Qty 20+

0

19

Exmark 3231-28

Bolt-Carriage 3/8-16 X 1 1/4

$4.49

$

In Stock, Qty 20+

0

20

Exmark 109-6982

WIREFORM-COVER

$11.99

$

In Stock, Qty 10

0

21

Exmark 109-6935

COVER-BELT, RH

$38.99

$

In Stock, Qty 7

0

22

Exmark 109-6936

COVER-BELT, LH

$38.99

$

In Stock, Qty 12

0

23

Exmark 109-9915-01

BAFFLE,DISCHARGE 52/60

$37.99

$

Usually ships in 3-6 days

0

24

Exmark 116-1822-01

BAR,WEIGHT

$64.99

$

Usually ships in 3-6 days

0

25

Exmark 1-513435

WASHER-SPRING

$5.49

$

In Stock, Qty 20+

0

26

Exmark 325-6

SCREW-HH

$3.49

$

In Stock, only 4 left!

0

27

Exmark 32128-49

NUT-HHF

$1.99

$

In Stock, Qty 20+

0

28

Exmark 104-0753

NUT-FLANGE

$4.99

$

In Stock, only 2 left!

0

29

Exmark 103-3037

BUSHING,SPLINED

$22.99

$

In Stock, Qty 20+

0

30

Exmark 109-9220

SCREW,SEMS 1/2-20 X 2.19

$8.49

$

In Stock, Qty 20+

0

31

Exmark 116-1286

GUARD,BEARING TOP .989

$5.49

$

In Stock, Qty 20+

0

32

Exmark 116-0675

SHEAVE,BLADE DRIVE 6.50

Note: Apply Mobil HTS grease (P/N 103-5217 1.5 oz packet) (or a food-grade anti-seize). See operator s manual for locations.

$94.99

$

In Stock, Qty 20+

0
