VT24KA484CA - Exmark 48" Vantage Stand-On Mower, 24hp Kawasaki, CARB (SN: 920000 - 999999) (2011) Fuel Tank Mounting Assembly Parts Diagram

48" Vantage Stand-On Mower, 24hp Kawasaki, CARB

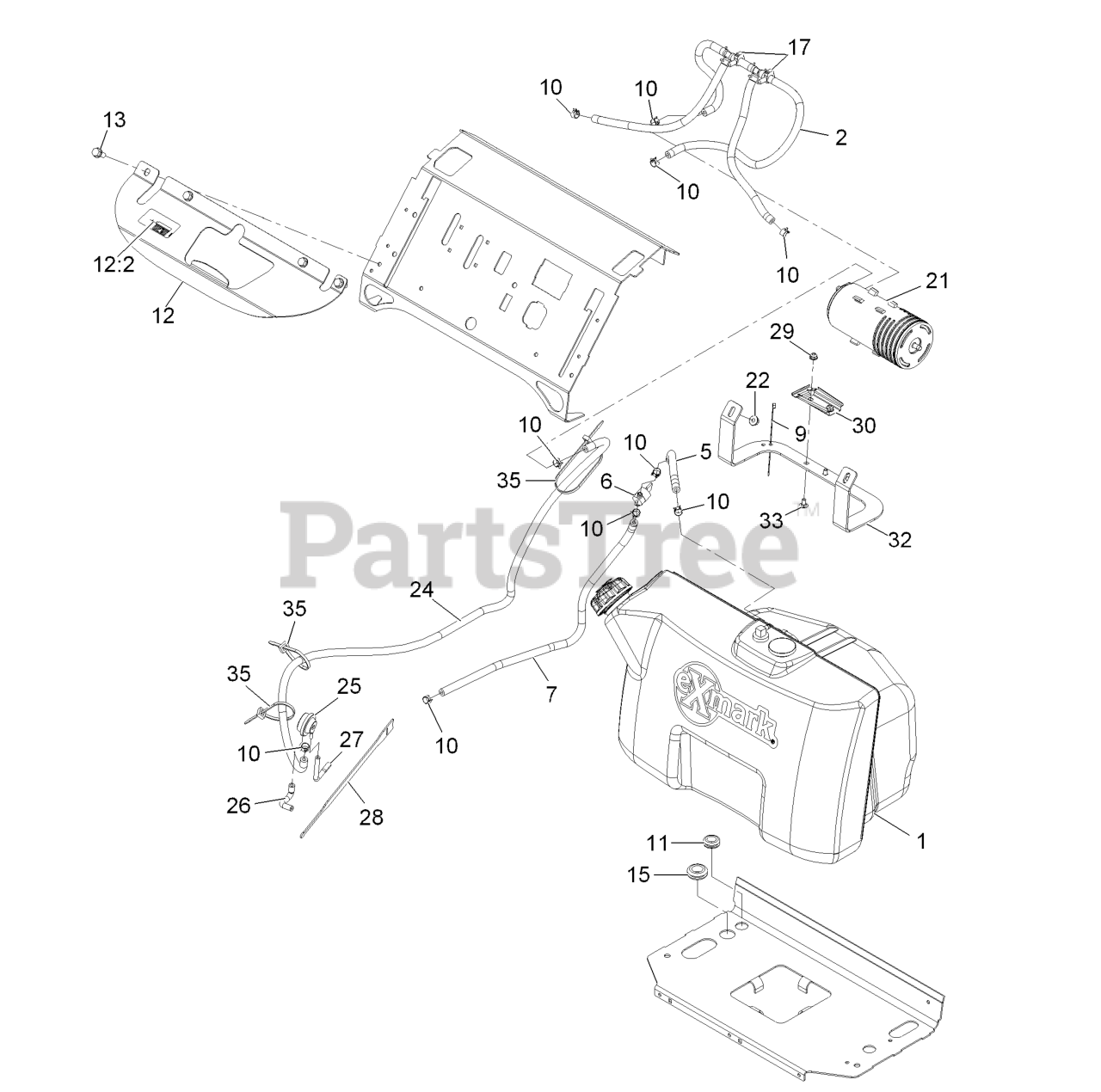

Fuel Tank Mounting Assembly Parts Diagram

  • Title
1

Exmark 116-4577

135-0647
(Superseded to 135-0647)

$751.99

$

In Stock, only 1 left!

0

2

Exmark 116-5170

VENT ASM

$62.99

$

Usually ships in 3-6 days

0

5

Exmark 107-9297

HOSE-FUEL

$7.99

$

In Stock, only 2 left!

0

6

Exmark 1-603770

VALVE-FUEL

$8.49

$

In Stock, Qty 7

0

7

Exmark 109-0301

HOSE-FUEL

$13.99

$

Usually ships in 3-6 days

0

9

Exmark 1-303287

TIE-CABLE

$1.49

$

Usually ships in 3-6 days

0

10

Exmark 2412-98

CLAMP-HOSE

$1.49

$

In Stock, Qty 20+

0

11

Exmark 112-7069

GROMMET

$3.49

$

Usually ships in 3-6 days

0

12

Exmark 116-3088

BRACKET-TANK

$71.99

$

Usually ships in 3-6 days

0

12:2

Exmark 116-3290

DECAL-FILL, FUEL

$3.49

$

In Stock, only 1 left!

0

13

Exmark 32144-11

SCREW-THD ROLL, HWH

$7.99

$

In Stock, Qty 6

0

15

Exmark 117-2781

GROMMET

$7.99

$

Usually ships in 3-6 days

0

17

Exmark 32180-040

CLIP-HARNESS

$2.99

$

Usually ships in 3-6 days

0

21

Exmark 117-1221

CANISTER-CARBON, 800CC

$75.99

$

In Stock, only 1 left!

0

22

Exmark 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 17

0

24

Exmark 63-9720

HOSE-FUEL

$21.99

$

Usually ships in 3-6 days

0

25

Exmark 116-2232

VALVE-CONTROL, VACUUM

$33.99

$

In Stock, only 3 left!

0

26

Exmark 119-8502

HOSE-VENT, FORMED

$6.49

$

Usually ships in 3-6 days

0

27

Exmark 119-8501

HOSE-VENT, FORMED

$6.49

$

Usually ships in 3-6 days

0

28

Exmark 116-2469

STRAP-VELCRO, CABLE TIE

$18.99

$

Usually ships in 3-6 days

0

29

$1.49

$

In Stock, Qty 20+

0

30

Exmark 114-0292

BRACKET-CANISTER, CARBON

$12.99

$

Usually ships in 3-6 days

0

32

Exmark 116-5600-03

BRACKET,CANISTER MOUNTING

$60.99

$

Usually ships in 3-6 days

0

33

Exmark 116-5611

SCREW-CARR

$5.49

$

Usually ships in 3-6 days

0

35

Exmark 3290-378

TIE-CABLE

$0.99

$

In Stock, Qty 8

0
