VT24KA484CA - Exmark 48" Vantage Stand-On Mower, 24hp Kawasaki, CARB (SN: 920000 - 999999) (2011) Electrical Assembly Parts Diagram

48" Vantage Stand-On Mower, 24hp Kawasaki, CARB

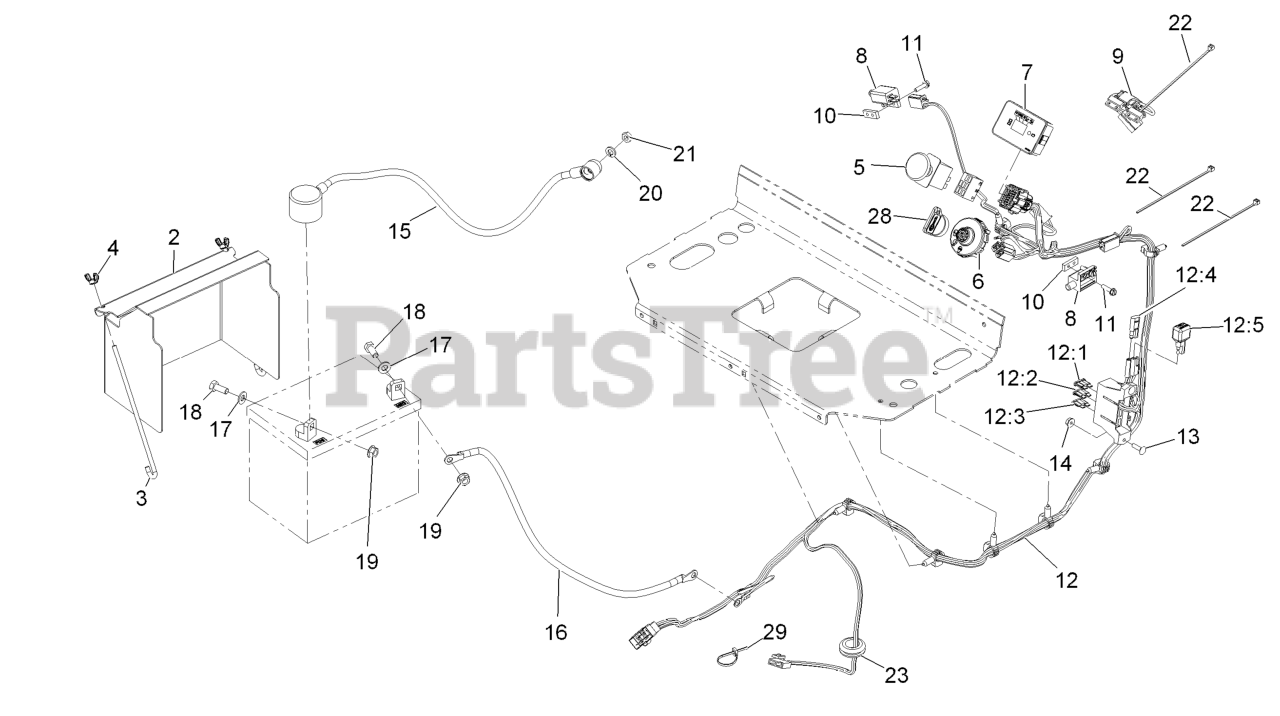

Electrical Assembly Parts Diagram

  • Title
2

Exmark 117-0543-01

COVER-BATTERY

$88.99

$

Usually ships in 3-6 days

0

3

Exmark 1-633651

BOLT-HOLDDOWN

$7.99

$

In Stock, only 2 left!

0

4

Exmark 1-543792

WINGNUT

$6.49

$

In Stock, Qty 14

0

5

Exmark 114-0279

SWITCH-PTO, ON-ON

$59.99

$

In Stock, only 2 left!

0

6

Exmark 117-2222

137-4101
(Superseded to 137-4101)

$31.99

$

In Stock, only 3 left!

0

7

Exmark 115-4180

117-3886
(Superseded to 117-3886)

$189.99

$

In Stock, only 1 left!

0

8

Exmark 1-513152

SWITCH-CLOSED, NORMALLY

$13.99

$

In Stock, Qty 15

0

9

Exmark 116-2833

HARNESS-SWITCH, REED

$105.99

$

Usually ships in 3-6 days

0

10

Exmark 1-633181

PLATE-TAPPED

$6.49

$

In Stock, only 2 left!

0

11

Exmark 32105-13

SCREW-HWH

$1.99

$

In Stock, Qty 5

0

12

Exmark 116-4615

HARNESS-WIRE

Note: Use dielectric grease on all wiring harness connectors.

$378.99

$

Usually ships in 3-6 days

0

12:1

Exmark 109103

FUSE-BLADE, 30 AMP

$6.49

$

In Stock, Qty 6

0

12:2

Exmark 109102

FUSE-BLADE, 25 AMP

$5.49

$

In Stock, Qty 9

0

12:3

Exmark 218-578

FUSE-BLADE, 10 AMP

$2.99

$

In Stock, Qty 6

0

12:4

Exmark 116-0053

CAP-PLUG

$38.99

$

Usually ships in 3-6 days

0

12:5

$66.99

$

In Stock, Qty 5

0

13

Exmark 3229-20

SCREW-CARR

$1.99

$

Usually ships in 3-6 days

0

14

$0.99

$

In Stock, Qty 11

0

15

Exmark 115-3864

CABLE-BATTERY, POSITIVE

$29.99

$

In Stock, only 1 left!

0

16

Exmark 105-0836

CABLE-BATTERY, BLACK

$19.99

$

Usually ships in 3-6 days

0

17

Exmark 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

18

Exmark 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

19

Exmark 109-5715

NUT-HHF, SMOOTH

$1.49

$

Usually ships in 3-6 days

0

20

Exmark 325-33

SCREW-HH

$13.99

$

In Stock, only 4 left!

0

21

Exmark 3217-5

NUT-HEX

$0.99

$

In Stock, Qty 8

0

22

Exmark 1-303287

TIE-CABLE

$1.49

$

Usually ships in 3-6 days

0

23

Exmark 117-2781

GROMMET

$7.99

$

Usually ships in 3-6 days

0

28

Exmark 103-2106

KEY-IGNITION

$5.49

$

In Stock, Qty 7

0

29

Exmark 3290-378

TIE-CABLE

$0.99

$

In Stock, Qty 8
