VT20KAS524 - Exmark 52" Vantage Stand-On Mower, 20hp Kawasaki (SN: 850000 - 919999) (2010) Ground Drive Group Parts Diagram

52" Vantage Stand-On Mower, 20hp Kawasaki

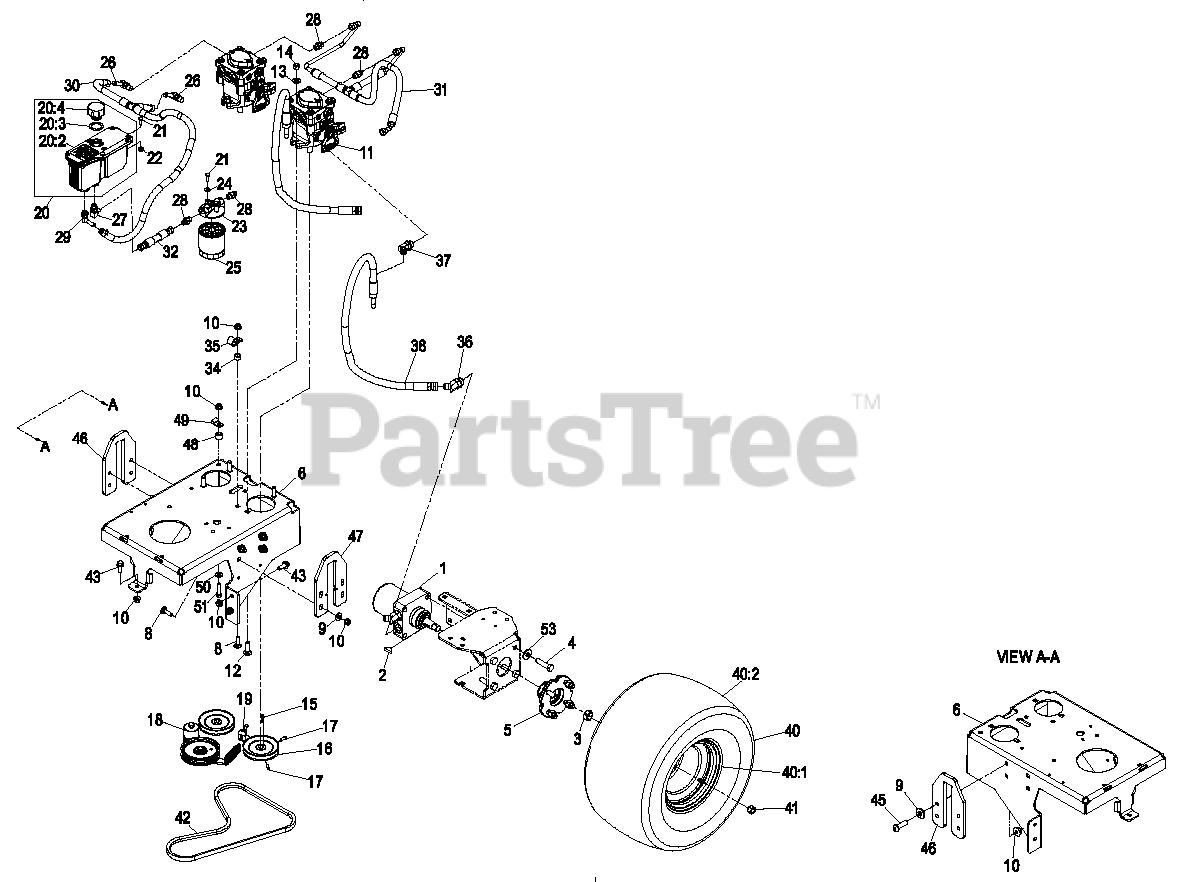

Ground Drive Group Parts Diagram

  • Title

1

Exmark 114-0549

HYD MOTOR ASM

$1381.99

$

In Stock, only 1 left!

0

2

Exmark 3257-8

KEY-WOODRUFF

$5.49

$

In Stock, Qty 5

0

3

Exmark 85-7310

NUT-MOTOR, WHEEL

$27.99

$

Usually ships in 3-6 days

0

4

Exmark 325-8

SCREW-HH

$5.49

$

In Stock, Qty 17

0

5

Exmark 105-0800

WHEEL HUB ASM

$248.99

$

In Stock, only 1 left!

0

6

Exmark 116-3215-01

BASE-ENGINE

$

$

Not available

8

Exmark 3231-25

BOLT-CARR
(Superseded to 119-4162)

$1.99

$

In Stock, Qty 20+

0

9

Exmark 98-5975

WASHER-BELLEVILLE

$3.49

$

In Stock, Qty 20+

0

10

Exmark 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

11

Exmark 116-2572

PUMP - HYDRAULIC

$1354.99

$

Usually ships in 3-6 days

0

12

Exmark 323-23

SCREW-HH

$5.49

$

In Stock, Qty 20+

0

13

Exmark 3256-25

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

14

Exmark 3296-48

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

15

Exmark 1-807272

KEY

$5.99

$

In Stock, Qty 9

0

16

Exmark 105-5648

PULLEY-PUMP

$125.99

$

Usually ships in 3-6 days

0

17

Exmark 3241-5

SCREW-SET

$2.49

$

In Stock, only 2 left!

0

18

Exmark 116-2823

PUMP IDLER ASM

$164.99

$

Usually ships in 3-6 days

0

19

Exmark 117-0447-01

BRACKET-ANCHOR, SPRING

$30.99

$

Usually ships in 3-6 days

0

20

Exmark 116-2066

RESERVOIR ASM

$191.99

$

Usually ships in 3-6 days

0

20:2

Exmark 116-0404

DECAL-HYDRAULIC TANK

$1.99

$

In Stock, Qty 15

0

20:3

Exmark 103-1949

GASKET-CAP
(Superseded to 142-2792)

$1.49

$

In Stock, Qty 20+

0

20:4

Exmark 103-1948

Cap-Reservoir, HYD
(Superseded to 103-7615)

$32.99

$

In Stock, Qty 20+

0

21

Exmark 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

22

Exmark 32128-32

NUT-HHF

$2.99

$

In Stock, Qty 20+

0

23

Exmark 104-7836

HEAD-FILTER

$18.99

$

In Stock, only 3 left!

0

24

Exmark 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

25

Exmark 109-4180

FILTER-25 MICRON, BI-DIRE

$49.99

$

In Stock, Qty 13

0

26

Exmark 100-4887

FITTING-ELBOW, 90

$29.99

$

In Stock, only 1 left!

0

27

Exmark 103-1802

FITTING-ELBOW, 90 DEG

$23.99

$

In Stock, only 2 left!

0

28

Exmark 103-2156

FITTING-STRAIGHT

$42.99

$

In Stock, only 3 left!

0

29

Exmark 103-1807

FITTING-BARBED, 45 DEG

$28.99

$

Usually ships in 3-6 days

0

30

Exmark 116-2579

TANK HOSE ASM

$45.99

$

Usually ships in 3-6 days

0

31

Exmark 116-2650

HOSE ASSEMBLY - CHARGE

$154.99

$

Usually ships in 3-6 days

0

32

Exmark 116-2604

HYD HOSE ASM

$22.99

$

Usually ships in 3-6 days

0

34

Exmark 1-653069

SPACER-WHEEL

$12.99

$

Usually ships in 3-6 days

0

35

Exmark 1-633396

CLIP-LOOM

$5.49

$

Usually ships in 3-6 days

0

36

Exmark 1-523222

FITTING-HYD, 45 DEG

$63.99

$

Usually ships in 3-6 days

0

37

Exmark 1-523221

FITTING-HYD, 45 DEG

$49.99

$

Usually ships in 3-6 days

0

38

Exmark 116-2944

116-7260
(Superseded to 116-7260)

$127.99

$

Usually ships in 3-6 days

0

40

Exmark 117-0429

WHEEL ASM

$386.99

$

Usually ships in 3-6 days

0

40:1

Exmark 106-8133

RIM-8 INCH

$

$

Not available

40:2

Exmark 117-0428

TIRE

$265.99

$

Usually ships in 3-6 days

0

41

Exmark 242-50

NUT-LUG
(Superseded to 139-2564)

$1.49

$

In Stock, only 4 left!

0

42

Exmark 114567

BELT-V, LOWER PTO
(Superseded to 114567-SL)

$34.99

$

Usually ships in 3-6 days

0

43

Exmark 3234-42

SCREW-HHF 3/8-16 X 1

$3.49

$

In Stock, Qty 20+

0

45

Exmark 3274-63

SCREW-HSBH

$4.99

$

In Stock, only 1 left!

0

46

Exmark 116-3547

PLATE, LIFT RH

$

$

Not available

47

Exmark 116-3546

PLATE, LIFT LH

$82.99

$

Usually ships in 3-6 days

0

48

Exmark 108326

SPACER-PIVOT

$23.99

$

Usually ships in 3-6 days

0

49

Exmark 116-3362

CLIP-TUBE

$5.49

$

Usually ships in 3-6 days

0

50

Exmark 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

51

Exmark 323-8

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

52

Exmark 109-9828

BOTTLE-OIL, 32OZ HYDRAULIC

Note: Not shown

$18.99

$

In Stock, Qty 20+

0

53

Exmark 1-513435

WASHER-SPRING

$5.49

$

In Stock, Qty 20+

0
