VT20KAS524 - Exmark 52" Vantage Stand-On Mower, 20hp Kawasaki (SN: 850000 - 919999) (2010) Fuel Tank Group Parts Diagram

52" Vantage Stand-On Mower, 20hp Kawasaki

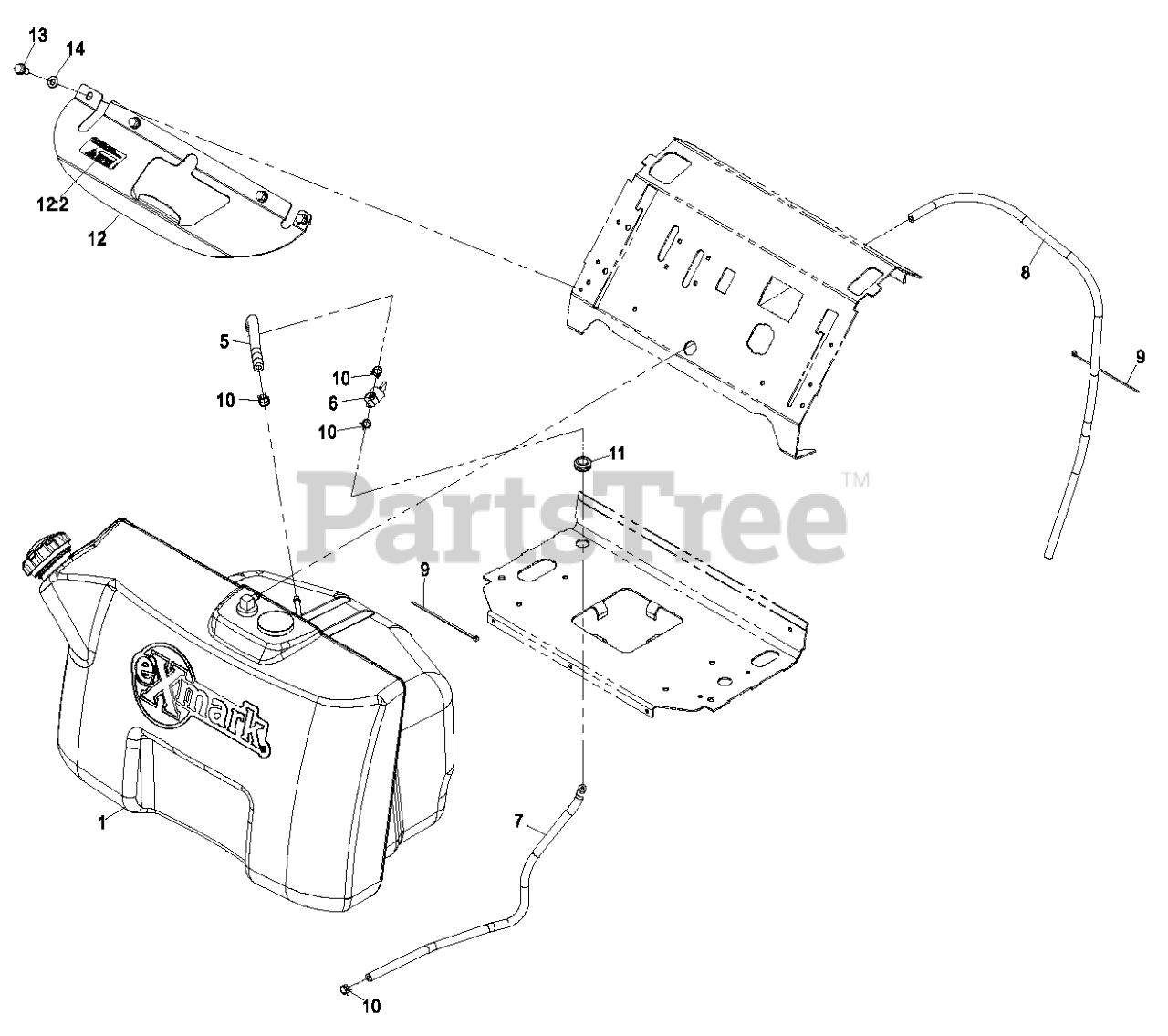

Fuel Tank Group Parts Diagram

  • Title

1

Exmark 116-3417

116-6713
(Superseded to 116-6713)

$

$

Not available

Exmark 116-3517

116-6713
(Superseded to 116-6713)

$

$

Not available

5

Exmark 107-9297

HOSE-FUEL

$7.99

$

In Stock, only 2 left!

0

6

Exmark 1-603770

VALVE-FUEL

$8.49

$

In Stock, Qty 7

0

7

Exmark 109-0301

HOSE-FUEL

$13.99

$

Usually ships in 3-6 days

0

8

Exmark 109-3491

HOSE-FUEL

$26.99

$

Usually ships in 3-6 days

0

9

Exmark 1-303287

TIE-CABLE

$1.49

$

Usually ships in 3-6 days

0

10

Exmark 2412-98

CLAMP-HOSE

$1.49

$

In Stock, Qty 20+

0

11

Exmark 112-7069

GROMMET

$3.49

$

Usually ships in 3-6 days

0

12

Exmark 116-3088

BRACKET-TANK

$71.99

$

Usually ships in 3-6 days

0

12:2

Exmark 116-3290

DECAL-FILL, FUEL

$3.49

$

In Stock, only 1 left!

0

13

Exmark 32144-11

SCREW-THD ROLL, HWH

$7.99

$

In Stock, Qty 6

0

14

Exmark 3256-70

WASHER-FLAT

$1.49

$

In Stock, Qty 14

0
