VT20KAS524 - Exmark 52" Vantage Stand-On Mower, 20hp Kawasaki (SN: 850000 - 919999) (2010) Controls Group Parts Diagram

52" Vantage Stand-On Mower, 20hp Kawasaki

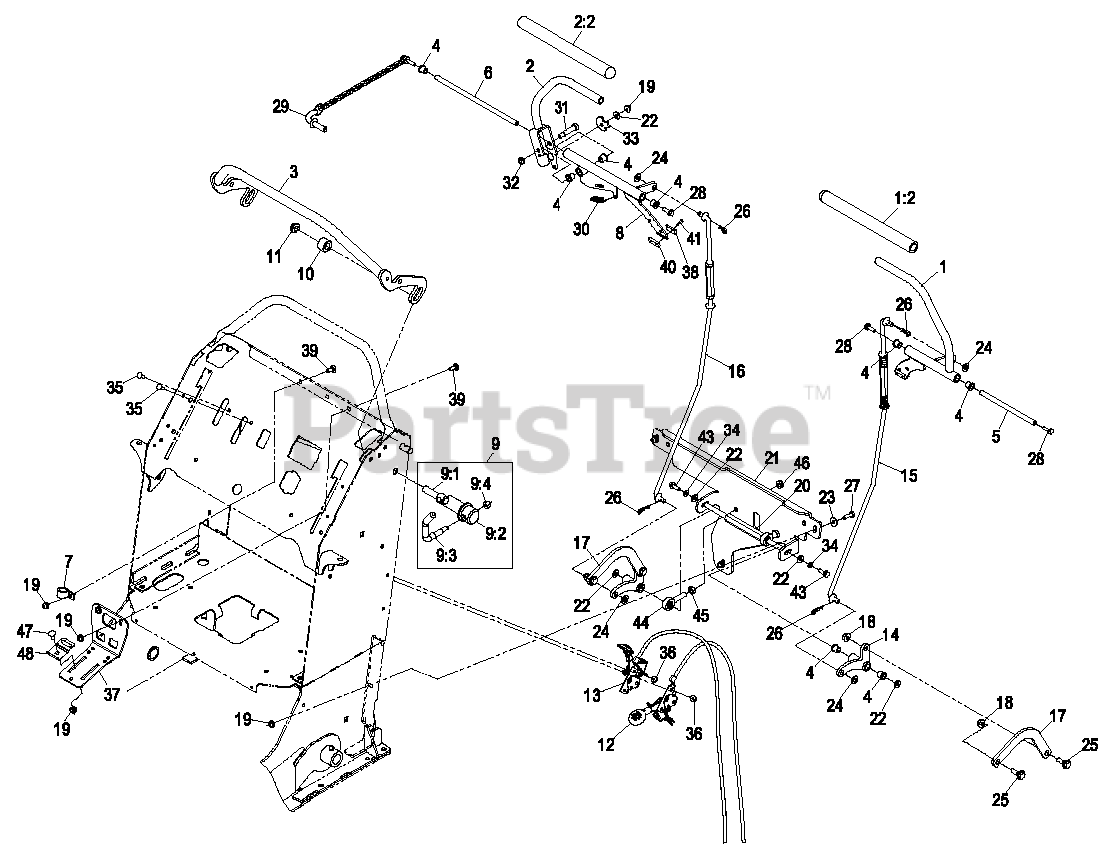

Controls Group Parts Diagram

  • Title

1

Exmark 116-2677

LEVER ASM, LH

$109.99

$

Usually ships in 3-6 days

0

1:2

Exmark 116-2357

GRIP-HANDLE, CONTROL

$10.99

$

Usually ships in 3-6 days

0

2

Exmark 116-2356

LEVER ASM, RH

$109.99

$

Usually ships in 3-6 days

0

2:2

Exmark 116-2357

GRIP-HANDLE, CONTROL

$10.99

$

Usually ships in 3-6 days

0

3

Exmark 116-1858-03

116-6985-03
(Superseded to 116-6985-03)

$127.99

$

Usually ships in 3-6 days

0

4

Exmark 103-9928

BEARING

$7.99

$

In Stock, Qty 11

0

5

Exmark 114-0260

SHAFT-PIVOT
(Superseded to 119-1885)

$21.99

$

Usually ships in 3-6 days

0

6

Exmark 114-1904

119-1886
(Superseded to 119-1886)

$22.99

$

Usually ships in 3-6 days

0

7

Exmark 2412-87

CLAMP-CABLE

$3.49

$

Usually ships in 3-6 days

0

8

Exmark 116-2679-03

CONTROL,MOTION ASM RH

$101.99

$

Usually ships in 3-6 days

0

9

Exmark 107-1664

LEVER ASM

$75.99

$

Usually ships in 3-6 days

0

9:1

Exmark 106-3239

SCREW-LOCK

$52.99

$

Usually ships in 3-6 days

0

9:2

Exmark 107-1644

CAP-LOCK

$38.99

$

In Stock, only 2 left!

0

9:3

Exmark 106-3241

107-1664
(Superseded to 107-1664)

$75.99

$

Usually ships in 3-6 days

0

9:4

Exmark 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

10

Exmark 116-2319

SPACER-CLAMP

$8.49

$

Usually ships in 3-6 days

0

11

Exmark 3296-45

NUT-HEX

$4.49

$

In Stock, Qty 20+

0

12

Exmark 116-3277

116-4276
(Superseded to 116-4276)

$49.99

$

In Stock, only 1 left!

0

13

Exmark 116-2309

116-4277
(Superseded to 116-4277)

$44.99

$

In Stock, only 1 left!

0

14

Exmark 116-2675

LEVER-BELLCRANK, MOTION

$62.99

$

Usually ships in 3-6 days

0

15

Exmark 116-3323

LINKAGE-TRACKING CONTROL,

$129.99

$

Usually ships in 3-6 days

0

16

Exmark 116-3324

LINKAGE-MOTION CONTROL, R

$129.99

$

Usually ships in 3-6 days

0

17

Exmark 116-2671

LINK-BELLCRANK, PUMP

$16.99

$

In Stock, only 2 left!

0

18

Exmark 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 17

0

19

Exmark 104-7201

NUT-HF

$1.49

$

In Stock, Qty 20+

0

20

Exmark 116-3119

SHAFT-BELLCRANK PIVOT

$34.99

$

Usually ships in 3-6 days

0

21

Exmark 116-3202-03

BRACKET-BELLCRANK

$104.99

$

Usually ships in 3-6 days

0

22

Exmark 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

23

Exmark 3256-2

WASHER-FLAT
(Superseded to 3256-2)

$0.99

$

In Stock, Qty 20+

0

24

Exmark 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

25

Exmark 116-2670

SCREW-SHOULDER

$7.99

$

In Stock, Qty 5

0

26

Exmark 1-806003

PIN-COTTER

$1.49

$

In Stock, Qty 20+

0

27

Exmark 321-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

28

Exmark 3234-4

SCREW-HHF

$0.99

$

In Stock, Qty 13

0

29

Exmark 114-0409

HOC PIN ASM

$52.99

$

In Stock, only 4 left!

0

30

Exmark 114-0249

SPRING-EXTENSION

$13.99

$

Usually ships in 3-6 days

0

31

Exmark 114-0239

SCREW-HSH

$12.99

$

In Stock, only 2 left!

0

32

Exmark 3296-47

NUT-LOCK, NI

$3.99

$

In Stock, Qty 10

0

33

Exmark 114-0268

CAM-LEVER

$6.49

$

Usually ships in 3-6 days

0

34

Exmark 325-33

SCREW-HH

$13.99

$

In Stock, only 4 left!

0

35

Exmark 1-807533

BOLT-CARR

$1.49

$

In Stock, Qty 6

0

36

Exmark 3290-148

NUT-HF

$0.99

$

In Stock, Qty 11

0

37

Exmark 116-4572

BRACKET, REED SWITCH

$50.99

$

Usually ships in 3-6 days

0

38

Exmark 116-2832

ACTUATOR-SWITCH, REED

$26.99

$

Usually ships in 3-6 days

0

39

Exmark 3229-1

BOLT-CARR

$3.99

$

In Stock, Qty 20+

0

40

Exmark 116-3227

PLATE-TAPPED

$10.99

$

In Stock, only 2 left!

0

41

Exmark 116-3330

SCREW-HH

$12.99

$

In Stock, only 2 left!

0

43

Exmark 117-8304

SCREW-HHF

$3.49

$

Usually ships in 3-6 days

0

44

Exmark 1-613204

BALLJOINT

$31.99

$

In Stock, only 2 left!

0

45

Exmark 3220-3

NUT-HJ

$0.99

$

In Stock, Qty 17

0

46

Exmark 3296-5

NUT-HEX

$3.49

$

In Stock, Qty 8

0

47

Exmark 3229-11

SCREW-CARR

$1.49

$

In Stock, Qty 20+

0

48

Exmark 116-4573

CLAMP, REED SWITCH

$11.99

$

Usually ships in 3-6 days

0
