VT20KA484 - Exmark 48" Vantage Stand-On Mower, 20hp Kawasaki (SN: 920000 - 999999) (2011) Main Frame Assembly Parts Diagram

48" Vantage Stand-On Mower, 20hp Kawasaki

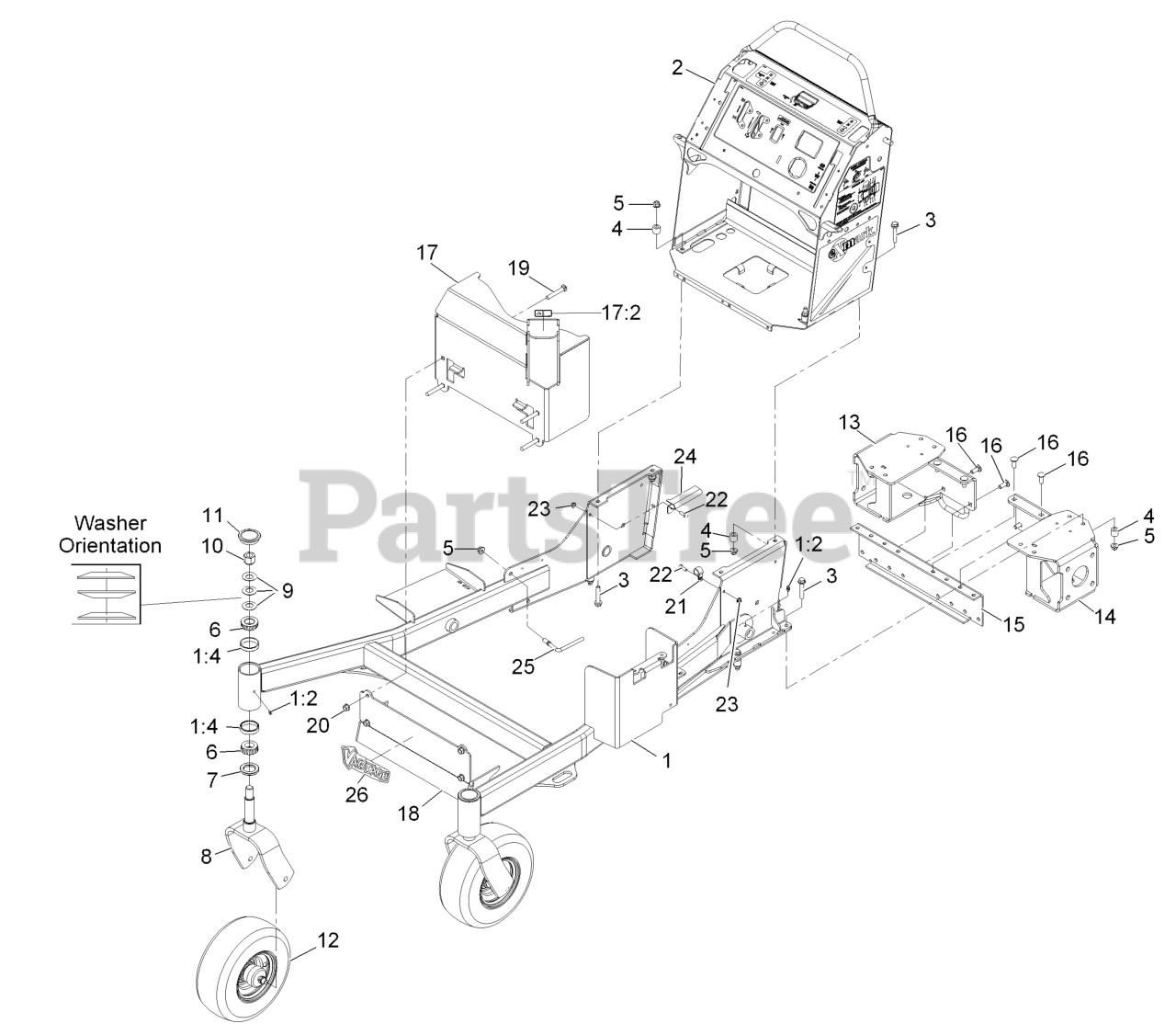

Main Frame Assembly Parts Diagram

  • Title

1

Exmark 116-2486

116-7045
(Superseded to 116-7045)

$1718.99

$

Usually ships in 3-6 days

0

1:2

Exmark 302-5

FITTING-GREASE

$3.49

$

In Stock, Qty 20+

0

1:4

Exmark 1-811010

PLUG

$5.49

$

In Stock, Qty 11

0

2

Exmark 116-5013

CONTROL TOWER ASM
(Superseded to 135-0159)

$1117.99

$

Usually ships in 3-6 days

0

3

Exmark 108-3742

SCREW-HHF

$6.49

$

Usually ships in 3-6 days

0

4

Exmark 98-8895

SPACER

$26.99

$

Usually ships in 3-6 days

0

5

Exmark 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

6

Exmark 1-543509

Cone-Bearing Tapered Roller

$13.99

$

In Stock, Qty 20+

0

7

Exmark 1-543511

SEAL-GREASE

$12.99

$

In Stock, Qty 20+

0

8

Exmark 103-8618-01

FORK-CASTER

$128.99

$

In Stock, Qty 13

0

9

Exmark 1-633508

WASHER-BELLVILLE

$3.49

$

In Stock, Qty 20+

0

10

Exmark 3296-51

NUT-LOCK, NI

$6.49

$

In Stock, Qty 14

0

11

Exmark 103-4882

CAP-GREASE

$7.99

$

In Stock, Qty 20+

0

12

Exmark 112-3810

WHEEL/TIRE AND BEARING AS

$210.99

$

In Stock, only 2 left!

0

13

Exmark 119-7222-03

RH MOTOR MOUNT ASM

$328.99

$

Usually ships in 3-6 days

0

14

Exmark 119-7220-03

LH MOTOR MOUNT ASM

$

$

Not available

15

Exmark 119-7224-03

MOUNT-MOTOR, CENTER

$

$

Not available

16

Exmark 3231-22

SCREW-CARR

$3.49

$

In Stock, Qty 20+

0

17

Exmark 116-2490

MUFFLER GUARD ASM
(Superseded to 126-5015)

$210.99

$

Usually ships in 3-6 days

0

17:2

Exmark 106-5517

DECAL-WARNING

$5.49

$

In Stock, only 2 left!

0

18

Exmark 116-3113-01

PANEL-GUARD

$108.99

$

Usually ships in 3-6 days

0

19

Exmark 3231-31

SCREW-CARR

$6.99

$

In Stock, Qty 20+

0

20

Exmark 32128-21

NUT-HF

$0.99

$

In Stock, Qty 20+

0

21

Exmark 2412-87

CLAMP-CABLE

$3.49

$

Usually ships in 3-6 days

0

22

Exmark 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

23

Exmark 104-7201

NUT-HF

$1.49

$

In Stock, Qty 20+

0

24

Exmark 116-5067

BRACKET-HOSE, FUEL (DOUBL

$22.99

$

Usually ships in 3-6 days

0

25

Exmark 116-3382

GUIDE-HOSE, SUPPORT

$21.99

$

Usually ships in 3-6 days

0

26

Exmark 116-3137

DECAL-VANTAGE LOGO

$11.99

$

In Stock, only 3 left!

0
