VT20KA484 - Exmark 48" Vantage Stand-On Mower, 20hp Kawasaki (SN: 850000 - 919999) (2010) Platform Assembly - 116-1804 Parts Diagram

48" Vantage Stand-On Mower, 20hp Kawasaki

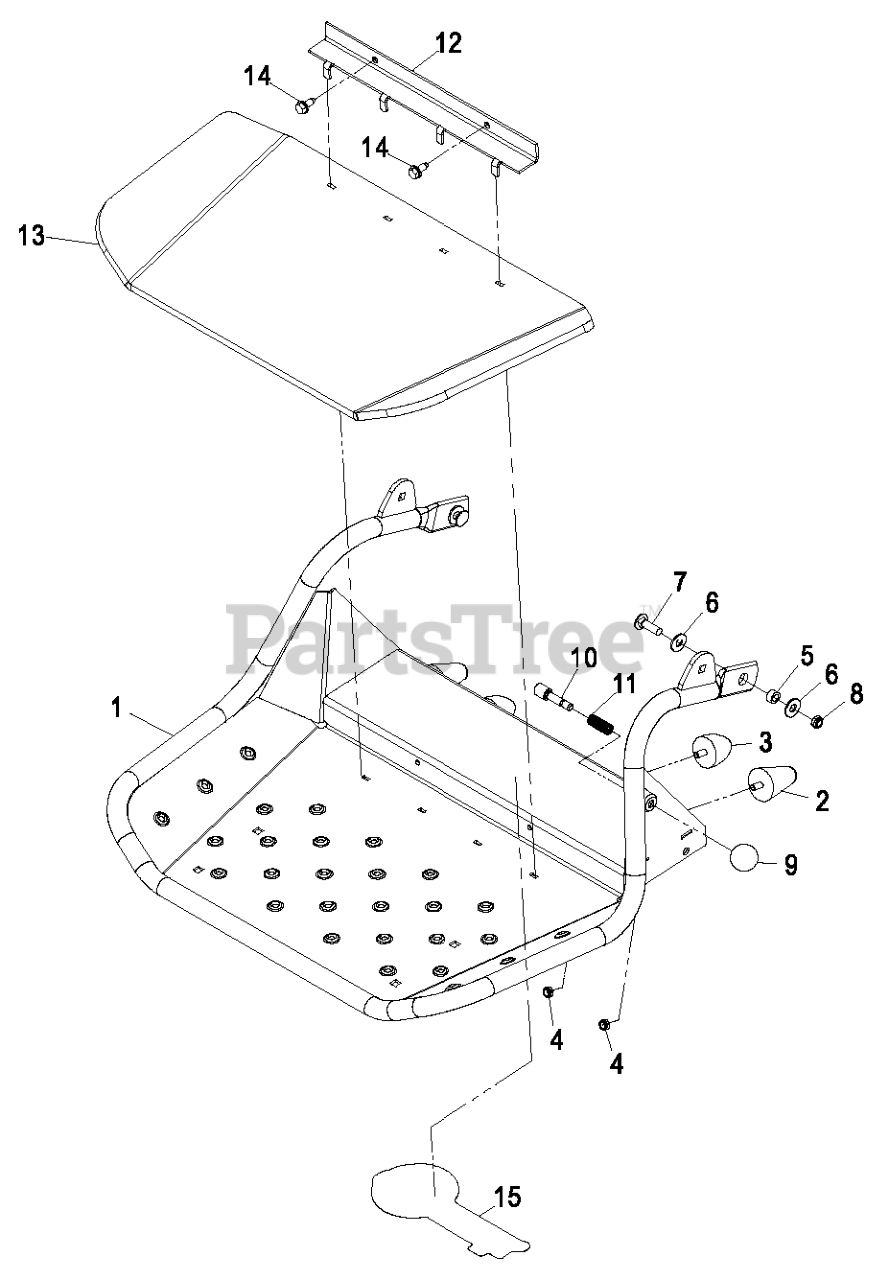

Platform Assembly - 116-1804 Parts Diagram

  • Title

1

Exmark 117-9641-03

PLATFORM ASM

$562.99

$

Usually ships in 3-6 days

0

2

Exmark 114-1925

BUMPER-RUBBER

$26.99

$

In Stock, only 1 left!

0

3

Exmark 114-1926

BUMPER-RUBBER

$28.99

$

In Stock, Qty 10

0

4

Exmark 3296-47

NUT-LOCK, NI

$3.99

$

In Stock, Qty 10

0

5

Exmark 111044

SPACER

$1.49

$

In Stock, Qty 20+

0

6

Exmark 3256-4

WASHER-FLAT

$1.99

$

In Stock, Qty 20+

0

7

Exmark 3231-25

BOLT-CARR
(Superseded to 119-4162)

$1.99

$

In Stock, Qty 15

0

8

Exmark 3296-59

121-4600
(Superseded to 121-4600)

$1.49

$

In Stock, Qty 17

0

9

Exmark 1-603175

KNOB-BALL

$11.99

$

In Stock, Qty 7

0

10

Exmark 114-5288

119-8650
(Superseded to 119-8650)

$20.99

$

In Stock, only 1 left!

0

11

Exmark 114-5348

SPRING

$2.99

$

In Stock, Qty 20+

0

12

Exmark 114-1920-03

CLAMP-SHIELD

$43.99

$

Usually ships in 3-6 days

0

13

Exmark 114-5349

126-7157
(Superseded to 126-7157)

$110.99

$

In Stock, only 1 left!

0

14

Exmark 32144-70

Screw-HWH 5/16-18 X 3/4 Tf

$2.99

$

In Stock, Qty 20+

0

15

Exmark 1-653546

DECAL, EXMARK LOGO

$20.99

$

In Stock, only 3 left!

0
