VT20KA484 - Exmark 48" Vantage Stand-On Mower, 20hp Kawasaki (SN: 850000 - 919999) (2010) Cutter Housing Assembly - 109-9018 Parts Diagram

48" Vantage Stand-On Mower, 20hp Kawasaki

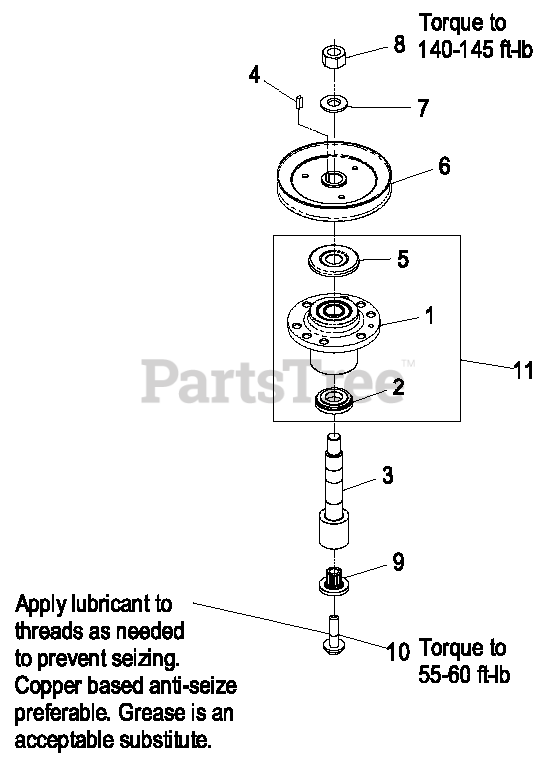

Cutter Housing Assembly - 109-9018 Parts Diagram

  • Title

1

Exmark 103-8353

103-8280
(Superseded to 103-8280)

$254.99

$

In Stock, only 3 left!

0

2

Exmark 103-2535

SPACER-GUARD, BOTTOM

$12.99

$

In Stock, only 3 left!

0

3

Exmark 103-9086

KIT, SPLINED SPINDLE 103-

Note: Apply Mobil HTS grease (P/N 103-5217 1.5 oz packet) (or a food grade antiseize) between the jackshaft and bearings, jackshaft and sheaves, spindles and bearings, spindles and sheaves, and under top bearing guard. DO NOT use a copper or nickel based antise

$214.99

$

In Stock, only 3 left!

0

4

Exmark 103-2982

KEY

$2.99

$

In Stock, Qty 12

0

5

Exmark 103-1330

GUARD-BEARING, TOP

$5.49

$

In Stock, only 2 left!

0

6

Exmark 116-0186

SHEAVE,BLADE DRIVE

$91.99

$

Usually ships in 3-6 days

0

7

Exmark 103-2802

WASHER

$5.49

$

In Stock, Qty 14

0

8

Exmark 3217-46

NUT-HH

$12.99

$

In Stock, Qty 13

0

9

Exmark 103-3037

BUSHING,SPLINED

$22.99

$

In Stock, Qty 20+

0

10

Exmark 109-9220

SCREW,SEMS 1/2-20 X 2.19

$8.49

$

In Stock, Qty 20+

0

11

Exmark 103-8280

KIT, CUTTER HOUSING

$254.99

$

In Stock, only 3 left!

0
