VT18KA363CA - Exmark 36" Vantage Stand-On Mower, 18hp Kawasaki, CARB (SN: 920000 - 999999) (2011) Platform Assembly No. 116-3523 Parts Diagram

36" Vantage Stand-On Mower, 18hp Kawasaki, CARB

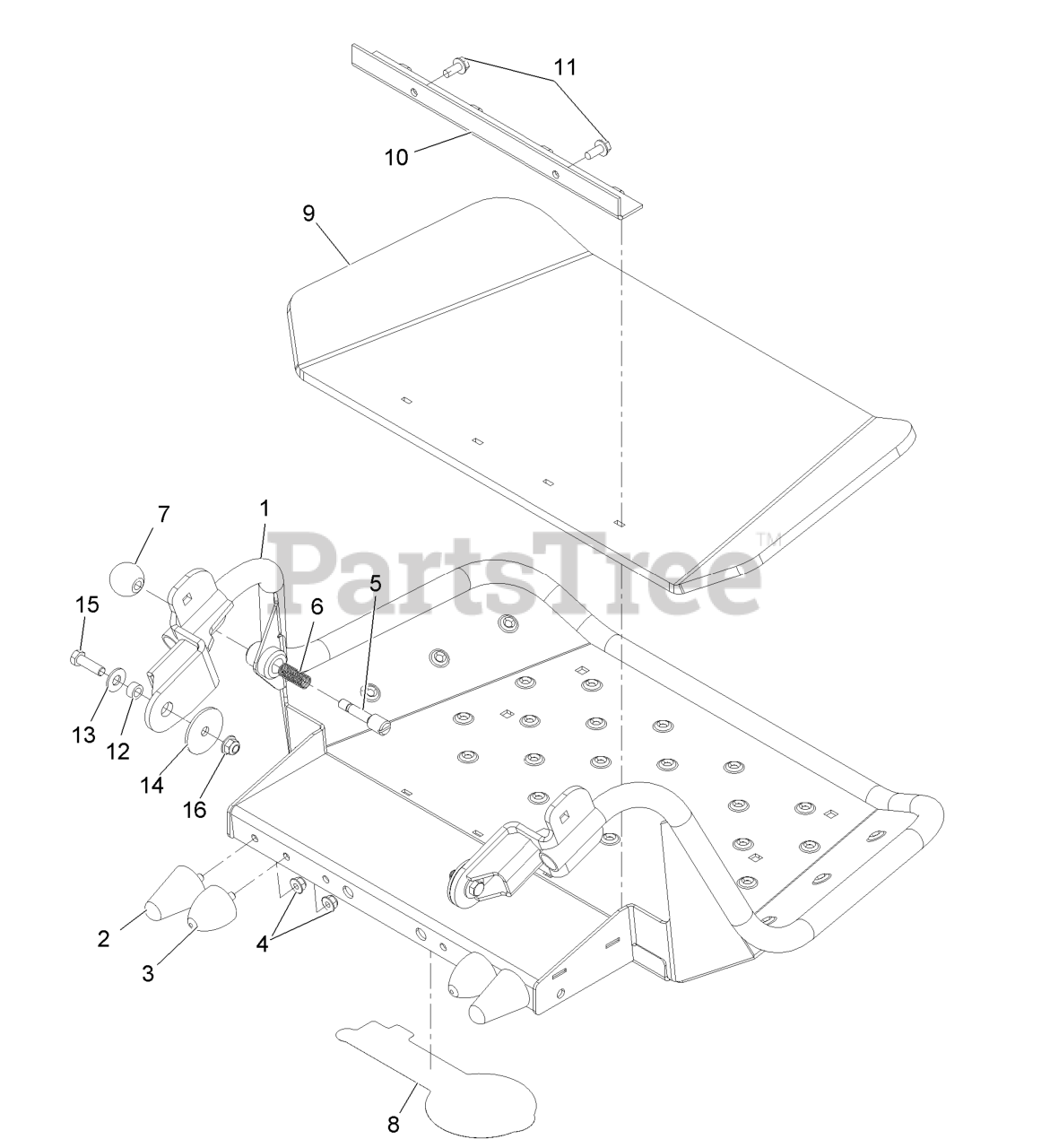

Platform Assembly No. 116-3523 Parts Diagram

  • Title

1

Exmark 117-7660-03

132-9403-03
(Superseded to 132-9403-03)

$607.99

$

Usually ships in 3-6 days

0

2

Exmark 114-1925

BUMPER-RUBBER

$25.99

$

In Stock, only 2 left!

0

3

Exmark 114-1926

BUMPER-RUBBER

$27.99

$

In Stock, only 1 left!

0

4

Exmark 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

5

Exmark 119-8650

PIN-LATCH

Note: Use Pro-Lock, Nut Type (P/N 1-840022, .5ml tube) on threads.

$20.99

$

In Stock, only 1 left!

0

6

Exmark 114-5348

SPRING

$2.99

$

In Stock, Qty 20+

0

7

Exmark 1-603175

KNOB-BALL

$11.99

$

In Stock, Qty 8

0

8

Exmark 1-653546

DECAL, EXMARK LOGO

$20.99

$

In Stock, only 3 left!

0

9

Exmark 114-5349

126-7157
(Superseded to 126-7157)

$107.99

$

In Stock, only 1 left!

0

10

Exmark 114-1920-03

CLAMP-SHIELD

$43.99

$

In Stock, only 1 left!

0

11

Exmark 32144-11

SCREW-THD ROLL, HWH

$7.99

$

In Stock, Qty 6

0

12

Exmark 111044

SPACER

$1.49

$

In Stock, Qty 20+

0

13

Exmark 3256-4

WASHER-FLAT

$1.99

$

In Stock, Qty 20+

0

14

Exmark 83-1040

WASHER-FLAT

$4.49

$

In Stock, only 3 left!

0

15

Exmark 323-7

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

16

Exmark 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0
