VT18KA363CA - Exmark 36" Vantage Stand-On Mower, 18hp Kawasaki, CARB (SN: 920000 - 999999) (2011) Control Assembly Parts Diagram

36" Vantage Stand-On Mower, 18hp Kawasaki, CARB

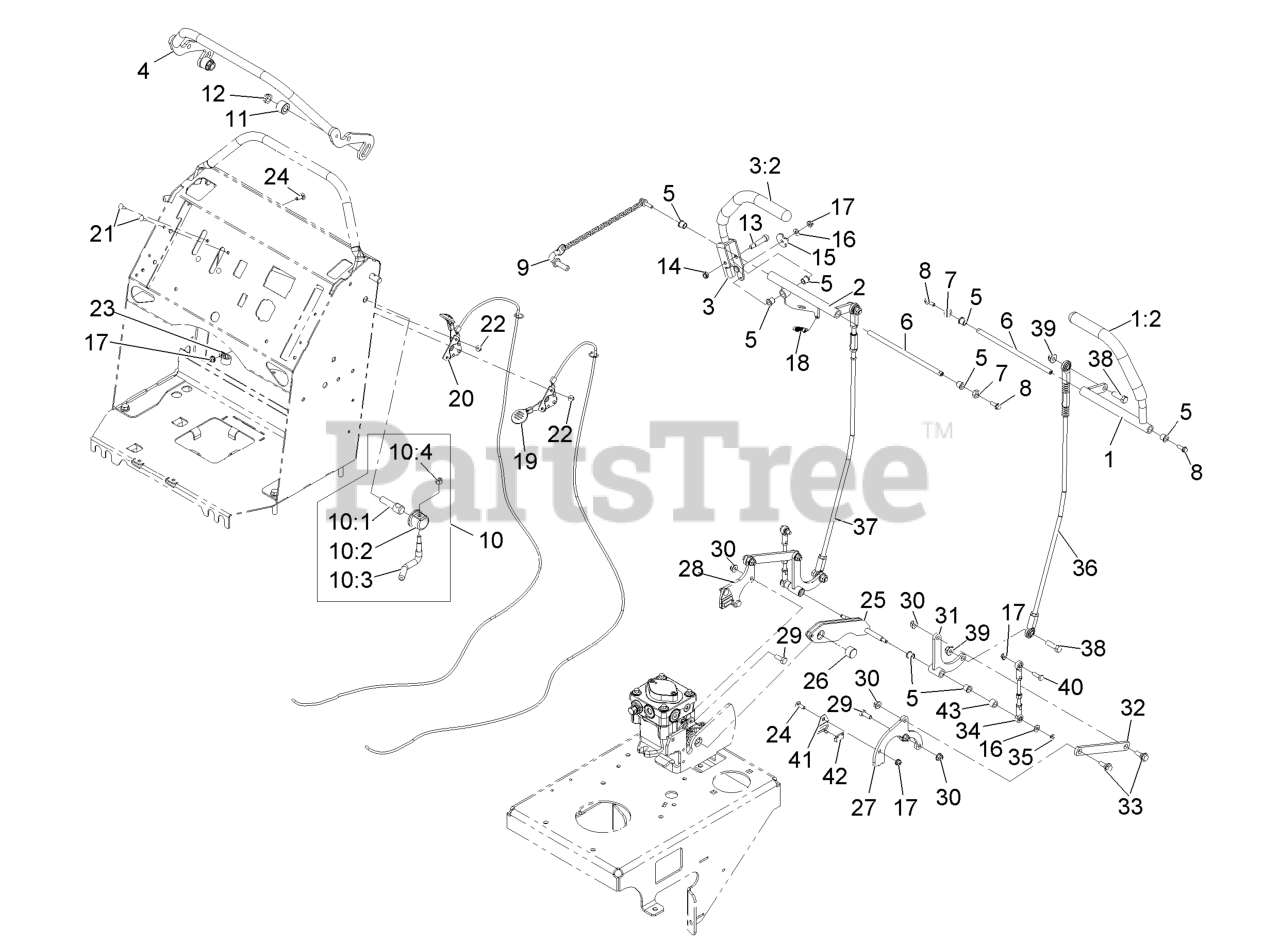

Control Assembly Parts Diagram

  • Title

1

Exmark 116-4195

LEVER ASM, LH

$126.99

$

In Stock, only 1 left!

0

1:2

Exmark 116-2357

GRIP-HANDLE, CONTROL

$11.99

$

Usually ships in 3-6 days

0

2

Exmark 116-4196-03

MOTION CONTROL ASM, LH

$110.99

$

Usually ships in 3-6 days

0

3

Exmark 116-2356

LEVER ASM, RH

$127.99

$

Usually ships in 3-6 days

0

3:2

Exmark 116-2357

GRIP-HANDLE, CONTROL

$11.99

$

Usually ships in 3-6 days

0

4

Exmark 116-1858-03

116-6985-03
(Superseded to 116-6985-03)

$140.99

$

Usually ships in 3-6 days

0

5

Exmark 103-9928

BEARING

$7.99

$

In Stock, Qty 14

0

6

Exmark 116-4197

SHAFT-PIVOT, MOTION CONTR

$21.99

$

Usually ships in 3-6 days

0

7

Exmark 116-4198

SPACER-SHAFT, DRIVE LEVER

$6.49

$

Usually ships in 3-6 days

0

8

Exmark 117-8304

SCREW-HHF

$3.49

$

Usually ships in 3-6 days

0

9

Exmark 114-0409

HOC PIN ASM

$53.99

$

In Stock, only 4 left!

0

10

Exmark 107-1664

LEVER ASM

$75.99

$

In Stock, only 2 left!

0

10:1

Exmark 106-3239

SCREW-LOCK

$53.99

$

Usually ships in 3-6 days

0

10:2

Exmark 107-1644

CAP-LOCK

$40.99

$

In Stock, only 2 left!

0

10:3

Exmark 106-3241

107-1664
(Superseded to 107-1664)

$75.99

$

In Stock, only 2 left!

0

10:4

Exmark 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

11

Exmark 116-2319

SPACER-CLAMP

$8.49

$

Usually ships in 3-6 days

0

12

Exmark 3296-45

NUT-HEX

$4.49

$

In Stock, Qty 20+

0

13

Exmark 114-0239

SCREW-HSH

$12.99

$

In Stock, only 2 left!

0

14

Exmark 3296-47

NUT-LOCK, NI

$3.99

$

In Stock, Qty 20+

0

15

Exmark 114-0268

CAM-LEVER

$6.49

$

Usually ships in 3-6 days

0

16

Exmark 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

17

Exmark 104-7201

NUT-HF

$1.49

$

In Stock, Qty 20+

0

18

Exmark 114-0249

SPRING-EXTENSION

$13.99

$

Usually ships in 3-6 days

0

19

Exmark 116-4276

CONTROL-THROTTLE

$54.99

$

In Stock, Qty 9

0

20

Exmark 116-4277

CONTROL-CHOKE

$48.99

$

Usually ships in 3-6 days

0

21

Exmark 1-807533

BOLT-CARR

$1.49

$

In Stock, only 4 left!

0

22

Exmark 3290-148

NUT-HF

$0.99

$

In Stock, Qty 10

0

23

Exmark 2412-87

CLAMP-CABLE

$3.49

$

Usually ships in 3-6 days

0

24

Exmark 3229-1

BOLT-CARR

$3.99

$

In Stock, Qty 20+

0

25

Exmark 116-4740

BELLCRANK LINK ASM

$98.99

$

Usually ships in 3-6 days

0

26

Exmark 116-4203

PIN-BELLCRANK LINK RETAIN

$7.99

$

Usually ships in 3-6 days

0

27

Exmark 116-4737

ARM-PUMP CONTROL

$35.99

$

Usually ships in 3-6 days

0

28

Exmark 116-4738

116-7000
(Superseded to 116-7000)

$27.99

$

Usually ships in 3-6 days

0

29

Exmark 322-4

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

30

Exmark 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

31

Exmark 116-4205

BELLCRANK-LOWER

$79.99

$

Usually ships in 3-6 days

0

32

Exmark 116-4208

LINK-BELLCRANK, PUMP

$15.99

$

Usually ships in 3-6 days

0

33

Exmark 116-2670

SCREW-SHOULDER

$7.99

$

In Stock, Qty 20+

0

34

Exmark 116-4210

VERTICAL ADJUST LINK

$106.99

$

Usually ships in 3-6 days

0

35

Exmark 32151-86

E-RING

$2.99

$

In Stock, Qty 20+

0

36

Exmark 116-4213

LINKAGE-TRACKING CONTROL,

$177.99

$

Usually ships in 3-6 days

0

37

Exmark 116-4214

LINKAGE-TRACKING CONTROL,

$177.99

$

Usually ships in 3-6 days

0

38

Exmark 323-7

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

39

Exmark 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

40

Exmark 321-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

41

Exmark 116-4739

CLAMP-SWITCH

$16.99

$

In Stock, only 2 left!

0

42

Exmark 116-2832

ACTUATOR-SWITCH, REED

$30.99

$

Usually ships in 3-6 days

0

43

Exmark 52-2480

SPACER-WHEEL

$6.49

$

In Stock, Qty 10

0
