VT18KA363 - Exmark 36" Vantage Stand-On Mower, 18hp Kawasaki (SN: 920000 - 999999) (2011) Park Brake Assembly Parts Diagram

36" Vantage Stand-On Mower, 18hp Kawasaki

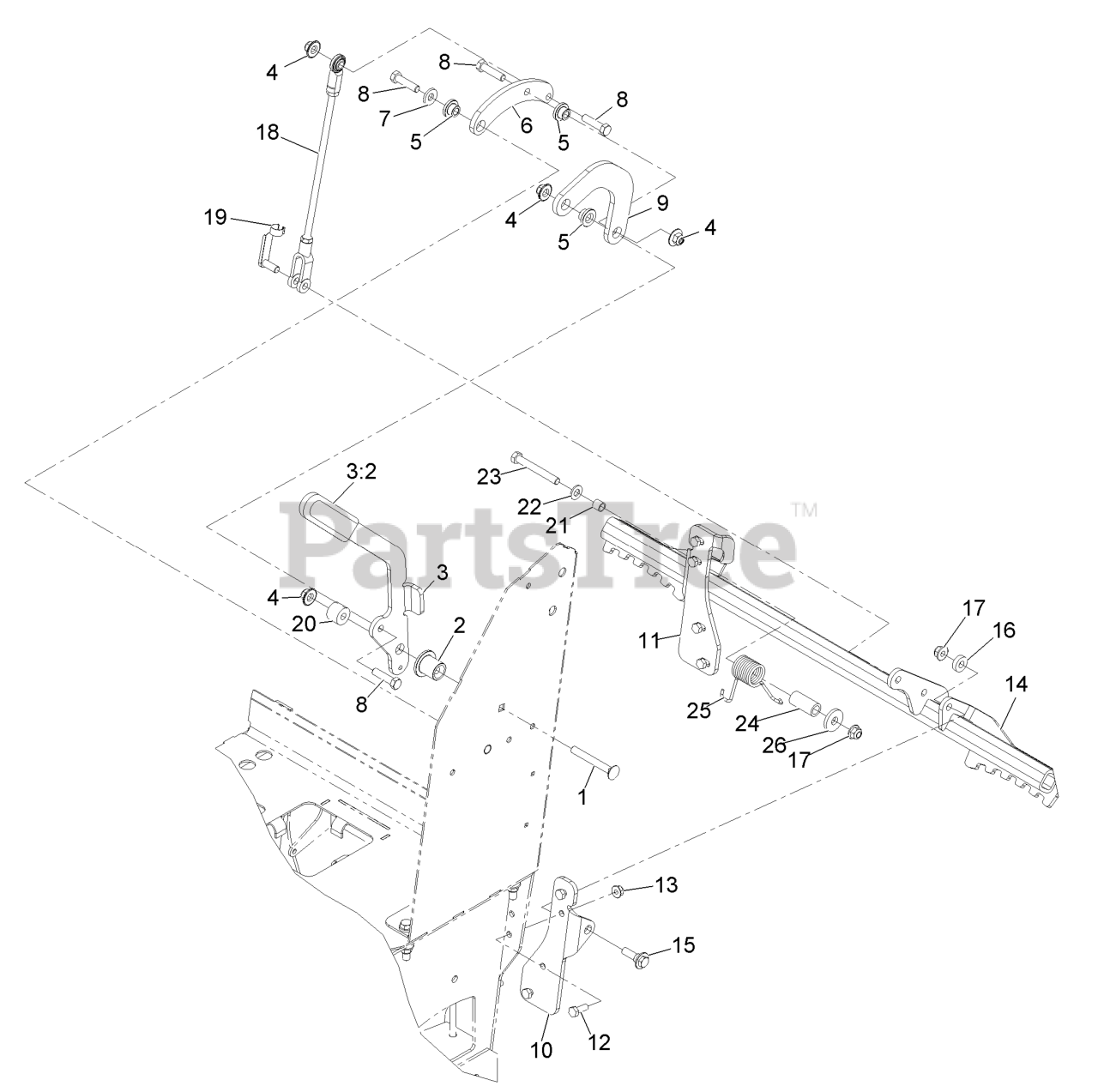

Park Brake Assembly Parts Diagram

  • Title

1

Exmark 3231-10

SCREW-CARR

$4.49

$

In Stock, only 4 left!

0

2

Exmark 116-4928

BUSHING-HANDLE

$46.99

$

Usually ships in 3-6 days

0

3

Exmark 116-4680

HANDLE-W/GRIP ASM

$63.99

$

Usually ships in 3-6 days

0

3:2

Exmark 1-633268

GRIP-LEVER

$14.99

$

In Stock, only 4 left!

0

4

Exmark 109-6658

Nut-Nyloc 3/8-16 Flg

$1.49

$

In Stock, Qty 20+

0

5

Exmark 116-4929

BUSHING-FLANGED

$17.99

$

Usually ships in 3-6 days

0

6

Exmark 116-4806

ARM-BRAKE BELLCRANK

$20.99

$

Usually ships in 3-6 days

0

7

Exmark 98-5975

WASHER-BELLEVILLE

$3.49

$

In Stock, Qty 20+

0

8

Exmark 323-8

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

9

Exmark 116-4805

LINK-BRAKE HANDLE

$25.99

$

Usually ships in 3-6 days

0

10

Exmark 116-4681-01

BRACKET-BRAKE MOUNT, LH

$42.99

$

Usually ships in 3-6 days

0

11

Exmark 116-4682-01

BRACKET-BRAKE MOUNT, RH

$42.99

$

Usually ships in 3-6 days

0

12

Exmark 322-4

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

13

Exmark 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 17

0

14

Exmark 116-4600-03

BAR-BRAKE

$164.99

$

Usually ships in 3-6 days

0

15

Exmark 614672

SCREW-SHOULDER, HWH

$2.99

$

In Stock, Qty 6

0

16

Exmark 5-0652

SPACER

$7.49

$

In Stock, Qty 5

0

17

Exmark 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

18

Exmark 116-4166

ASM-BRAKE LINKAGE

$92.99

$

Usually ships in 3-6 days

0

19

Exmark 103-2399

PIN-SPRING, CLEVIS

$6.49

$

In Stock, Qty 14

0

20

Exmark 92-5791

SPACER

$10.99

$

In Stock, Qty 17

0

21

Exmark 117-9684

SPACER

$6.49

$

Usually ships in 3-6 days

0

22

Exmark 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 16

0

23

Exmark 3231-4

SCREW-CARR

$3.99

$

In Stock, Qty 20+

0

24

Exmark 117-9683

SPACER

$7.99

$

Usually ships in 3-6 days

0

25

Exmark 108-4052

SPRING-TORSION

$25.99

$

In Stock, only 1 left!

0

26

Exmark 1-373034

WASHER

$3.49

$

In Stock, Qty 20+

0
