VT-100 (21A-70M8756) - Cub Cadet Vertical-Tine Tiller (2015) Transmission Parts Diagram

Vertical-Tine Tiller

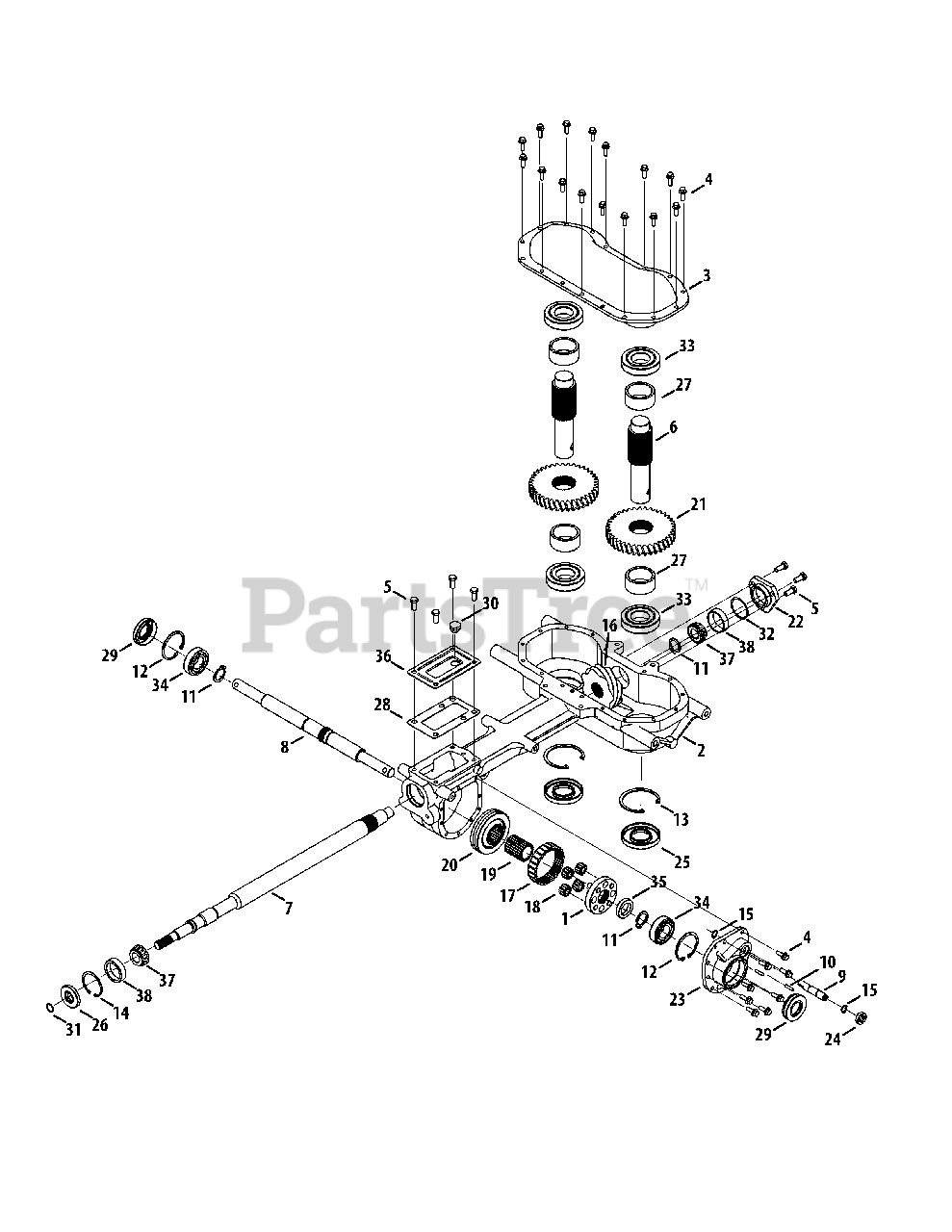

Transmission Parts Diagram

  • Title

1

Cub Cadet 918-07045

Planetary Carrier

$66.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 919-05078

Housing Assembly

$

$

Not available

3

Cub Cadet 919-05080

Cover

$154.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 710-04666

Hex Flange Screw, 1/4-20, .75, Gr5

$6.99

$

In Stock, only 3 left!

0

5

Cub Cadet 710-3008

Hex Head Screw, 5/16-18 x .75

$4.49

$

In Stock, Qty 20+

0

6

Cub Cadet 911-06217

Tine Shaft

$88.99

$

Usually ships in 3-6 days

0

7

Cub Cadet 911-06224

Shaft, Worm

$120.99

$

Usually ships in 3-6 days

0

8

Cub Cadet 911-06233

Shaft, Wheel

$97.99

$

Usually ships in 3-6 days

0

9

Cub Cadet 711-06255

Shaft, Drive

$24.99

$

Usually ships in 3-6 days

0

10

Cub Cadet 915-0221

Pin, Dowel, 3/16 x 3/4

$4.49

$

In Stock, Qty 20+

0

11

Cub Cadet 716-0127

Snap Ring, 1.00 Shaft Dia.

$12.99

$

Usually ships in 3-6 days

0

12

Cub Cadet 716-0204

Retaining Ring

$6.99

$

Usually ships in 3-6 days

0

13

Cub Cadet 716-0394

Retaining Ring

$3.99

$

Usually ships in 3-6 days

0

14

Cub Cadet 716-04102

Retaining Ring, Int

$4.49

$

In Stock, Qty 20+

0

15

Cub Cadet 716-0865

Snap Ring

$4.49

$

In Stock, Qty 20+

0

16

Cub Cadet 917-05197

Gear, 7t

$147.99

$

Usually ships in 3-6 days

0

17

Cub Cadet 917-05204

Gear, 48t

$

$

Not available

18

Cub Cadet 917-05213

Gear, 12t

$20.99

$

Usually ships in 3-6 days

0

19

Cub Cadet 917-05217

Gear, 24t

$42.99

$

Usually ships in 3-6 days

0

20

Cub Cadet 917-05218

Gear, 61t

$158.99

$

Usually ships in 3-6 days

0

21

Cub Cadet 917-05232

Gear, 38t

$

$

Not available

22

Cub Cadet 918-04435

Bearing Cover

$22.99

$

Usually ships in 3-6 days

0

23

Cub Cadet 919-04493A

Wheel Cover

$51.99

$

Usually ships in 3-6 days

0

24

Cub Cadet 721-0393

Oil Seal

$12.99

$

In Stock, Qty 6

0

25

Cub Cadet 921-04003

Seal, Oil

$41.99

$

In Stock, only 1 left!

0

26

Cub Cadet 921-04030

Oil Seal, .75 x 1.783

$12.99

$

In Stock, Qty 20+

0

27

Cub Cadet 750-06183

Spacer, 1.625 x 2.125 x 1.010

$10.99

$

Usually ships in 3-6 days

0

28

Cub Cadet 921-04229

Gear Housing Gasket

$6.99

$

In Stock, Qty 20+

0

29

Cub Cadet 721-04232

Oil Seal, 1.00 SHF x 2.00 BORE

$16.99

$

In Stock, Qty 20+

0

30

Cub Cadet 721-04271

Rubber Oil Plug

$5.49

$

In Stock, Qty 11

0

31

Cub Cadet 732-0614

Ring, Wire

$6.49

$

In Stock, only 2 left!

0

32

Cub Cadet 736-04305

Washer, Flat, 1.50 x 1.75 x .062

$3.99

$

In Stock, Qty 16

0

32

Cub Cadet 736-04306

Washer, Flat, 1.50 x 1.75 x .005

$4.49

$

In Stock, Qty 20+

0

32

Cub Cadet 736-04307

Washer, Flat, 1.50 x 1.75 x .03

$4.49

$

In Stock, only 3 left!

0

32

Cub Cadet 736-04308

Washer, Flat, 1.50 x 1.75 x .010

$4.49

$

In Stock, Qty 20+

0

33

Cub Cadet 741-1100

Bearing Ball

$36.99

$

Usually ships in 3-6 days

0

34

Cub Cadet 741-3114

Ball Bearing, 1 x 52 x 15 x 6205-1

$26.99

$

In Stock, Qty 20+

0

35

Cub Cadet 750-06181

Spacer, 1.010 x 1.500 x 0.175

$5.49

$

Usually ships in 3-6 days

0

36

Cub Cadet 786-04366

Transmission Cover

$21.99

$

Usually ships in 3-6 days

0

37

Cub Cadet 941-04298

Cone Bearing

$16.99

$

In Stock, Qty 19

0

38

Cub Cadet 941-04299

Cup Bearing

$6.99

$

In Stock, Qty 20+

0

Cub Cadet 918-07010

Transmission Assembly

$1229.99

$

Usually ships in 3-6 days

0
