VT-100 (21A-70M8756) - Cub Cadet Vertical-Tine Tiller (2015) Tine Shield Parts Diagram

Vertical-Tine Tiller

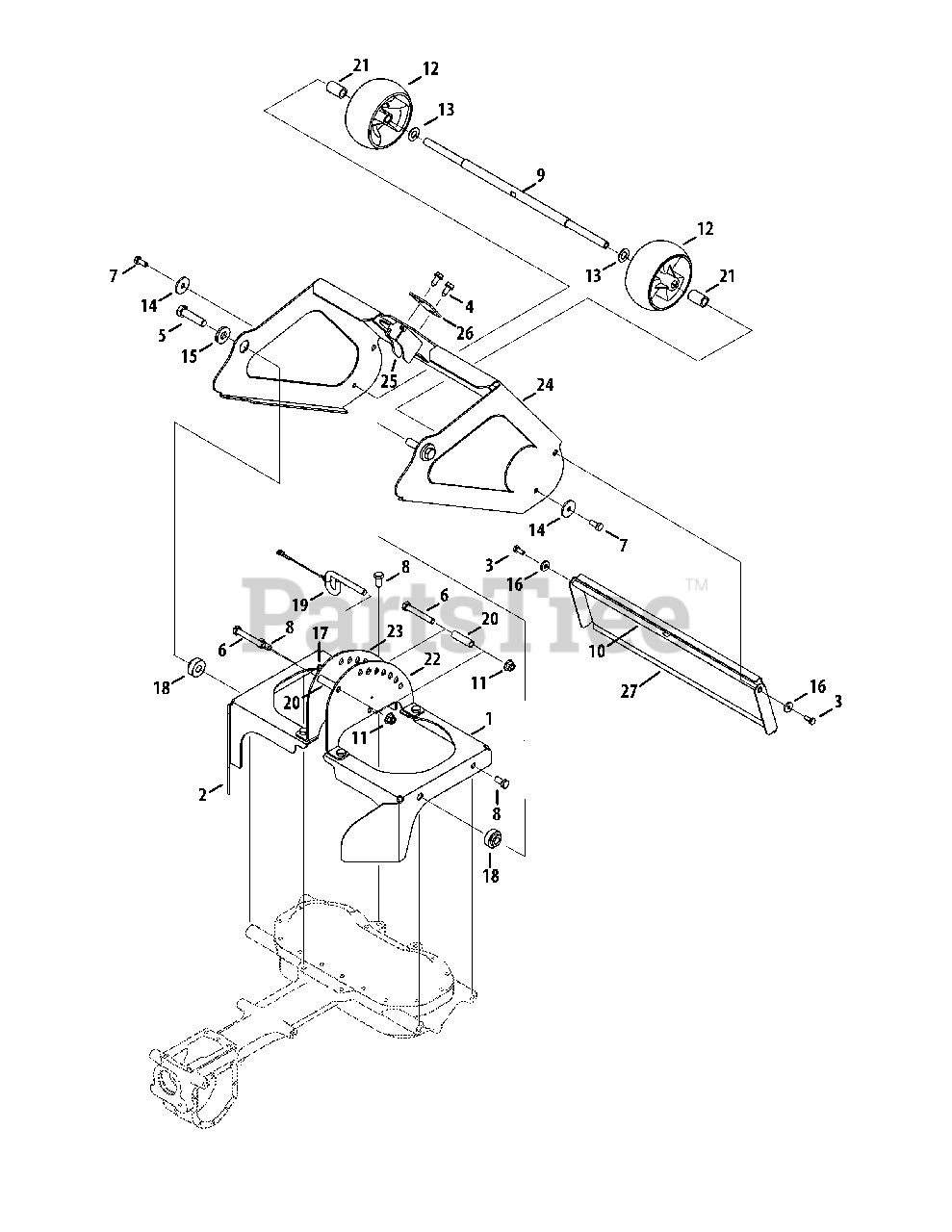

Tine Shield Parts Diagram

  • Title

1

Cub Cadet 686-05029-4021

Tine Shield Assembly, LH

$102.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 686-05030-4021

Tine Shield Assembly, RH

$102.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 710-0433

Hex Screw, 1/4-20 x .625

$4.49

$

In Stock, Qty 20+

0

4

Cub Cadet 710-04484

Hex Washer Screw, 5/16-18 x .750

$3.99

$

In Stock, Qty 20+

0

5

Cub Cadet 710-04644

Hex Screw, 1/2-13 x 2.00

$3.49

$

Usually ships in 3-6 days

0

6

Cub Cadet 710-0859

Hex Screw, 3/8-16 x 2.50

$6.99

$

In Stock, Qty 16

0

7

Cub Cadet 710-1880

Hex Head Screw, 5/16-18 x .75, Patch

$4.99

$

In Stock, Qty 11

0

8

Cub Cadet 710-3119

Hex Screw, 3/8-16 x .75

$6.99

$

In Stock, only 1 left!

0

9

Cub Cadet 911-06371

Wheel Shaft

$

$

Not available

10

Cub Cadet 711-06398

Rear Tine Shield Rod

$19.99

$

Usually ships in 3-6 days

0

10

Cub Cadet 736-05117

Washer .405 x .985 x .042

$2.49

$

Usually ships in 3-6 days

0

11

Cub Cadet 712-04065

Flangelock Nut, 3/8-16

$3.99

$

In Stock, Qty 20+

0

12

Cub Cadet 734-04155

Deck Ball Wheel, 5.0

$20.99

$

In Stock, Qty 20+

0

13

Cub Cadet 936-0272

Washer, Flat, .510 x 1.00 x .060
(Superseded to 736-0272)

$4.99

$

In Stock, Qty 20+

0

14

Cub Cadet 736-0343

Washer, Flat, .330 x 1.25 x .120

$4.49

$

In Stock, Qty 7

0

15

Cub Cadet 736-04019

Flat Washer, .531 x 1.25 x .181

$7.99

$

In Stock, only 1 left!

0

16

Cub Cadet 936-0176

Washer, Flat, .250 x .750 x .119
(Superseded to 736-0176)

$4.99

$

In Stock, only 4 left!

0

17

Cub Cadet 738-04237A

Shoulder Screw, #10-32 x .500

$6.49

$

In Stock, Qty 7

0

18

Cub Cadet 738-05119

Shoulder Spacer, .510 x .890 x .190

$7.99

$

Usually ships in 3-6 days

0

19

Cub Cadet 747-06450

Lock Rod, .375

$27.99

$

Usually ships in 3-6 days

0

20

Cub Cadet 750-06031

Spacer, .386 x .63 x 1.75

$5.49

$

Usually ships in 3-6 days

0

21

Cub Cadet 750-06296

Spacer, .525 x .775 x 1.245

$5.49

$

Usually ships in 3-6 days

0

22

Cub Cadet 786-05055-4021

Height Adjustment Bracket, LH

$39.99

$

Usually ships in 3-6 days

0

23

Cub Cadet 786-05056-4021

Height Adjustment Bracket, RH

$39.99

$

Usually ships in 3-6 days

0

24

Cub Cadet 786-05057-4021

Tine Pivot Shield
(Superseded to 786-05057)

$197.99

$

Usually ships in 3-6 days

0

25

Cub Cadet 786-05058-4021

Tine Shield Stop Bracket

$

$

Not available

26

Cub Cadet 786-05059-4021

Shield Stop Mounting Plate

$11.99

$

Usually ships in 3-6 days

0

27

Cub Cadet 786-05066-4021

Rear Tine Shield

$58.99

$

Usually ships in 3-6 days

0
