VT-100 (21A-70M8710) - Cub Cadet Vertical-Tine Tiller (2016) Handle Parts Diagram

Vertical-Tine Tiller

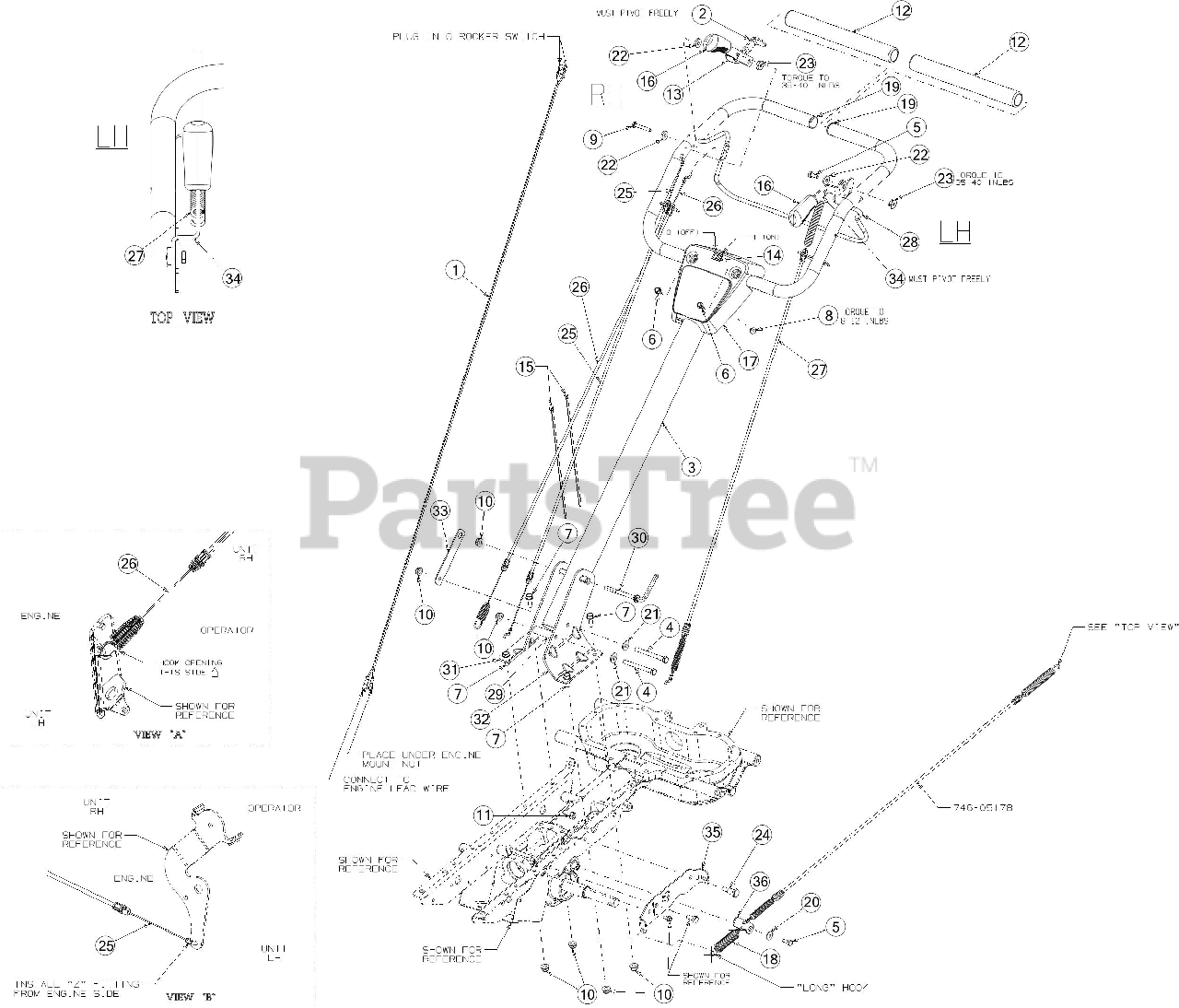

Handle Parts Diagram

  • Title
1

Cub Cadet 929-04157

HARNESS ADAPTER ASSEMBLY

$23.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 686-04135-4021

REVERSE HANDLE ASSEMBLY

$25.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 686-05020-4021

HANDLE ASSEMBLY

$99.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 710-0189

HEX SCREW 5/16-18 x 3.00

$6.49

$

In Stock, Qty 5

0

5

Cub Cadet 710-0433

SCREW 1/4-20 x .62 SPEC GR5

$4.49

$

In Stock, Qty 20+

0

6

Cub Cadet 710-0599

SCREW 1/4-20 X.500

$4.49

$

In Stock, Qty 20+

0

7

Cub Cadet 710-1238

SCREW 5/16-18 x .875 GR5
(Superseded to 710-1238A)

$4.49

$

In Stock, Qty 20+

0

8

Cub Cadet 710-1268

SCREW #10-16 x .375

$4.49

$

In Stock, Qty 20+

0

9

Cub Cadet 710-3288

BOLT 1/4-20X1.62 GR5

$6.99

$

In Stock, Qty 12

0

10

Cub Cadet 712-04063

FLANGE LOCK NUT 5/16-18

$3.99

$

In Stock, Qty 20+

0

11

Cub Cadet 912-3009

HEX NUT
(Superseded to 712-3009)

$

$

Not available

12

Cub Cadet 720-0278A

FOAM GRIP .970 x 11.0

$22.99

$

In Stock, only 3 left!

0

$4.49

$

In Stock, only 3 left!

0

14

Cub Cadet 725-2009

ROCKER SWITCH

$5.49

$

Usually ships in 3-6 days

0

15

$3.49

$

Usually ships in 3-6 days

0

16

Cub Cadet 731-04735

BRAKE HANDLE GRIP

$20.99

$

In Stock, only 1 left!

0

17

Cub Cadet 931-07025A

HANDLE COVER W/SWITCH HOLE

$22.99

$

Usually ships in 3-6 days

0

18

Cub Cadet 732-05201

EXTENSION SPRING

$5.99

$

Usually ships in 3-6 days

0

19

$5.99

$

Usually ships in 3-6 days

0

20

Cub Cadet 736-0270

SPRING WASHER BELL

$3.99

$

In Stock, Qty 20+

0

21

Cub Cadet 736-04193

BELLVILLE WASHER .827 x .331 x .098

$6.99

$

In Stock, Qty 20+

0

22

Cub Cadet 936-0176

FLAT WASHER
(Superseded to 736-0176)

$4.99

$

In Stock, only 4 left!

0

23

Cub Cadet 738-0440

SHOULDER SPACER

$5.99

$

In Stock, only 4 left!

0

24

Cub Cadet 738-0754

SHOULDER SCREW

$4.49

$

In Stock, Qty 20+

0

25

Cub Cadet 946-04504

REVERSE CABLE

$33.99

$

In Stock, only 4 left!

0

26

Cub Cadet 946-04506

FORWARD CABLE

$36.99

$

In Stock, Qty 7

0

27

Cub Cadet 946-05178

NEUTRAL CABLE

$42.99

$

In Stock, only 1 left!

0

28

$29.99

$

Usually ships in 3-6 days

0

$11.99

$

Usually ships in 3-6 days

0

30

Cub Cadet 786-0340B

CRANK ADJUST HANDLE

$19.99

$

Usually ships in 3-6 days

0

31

Cub Cadet 786-04344-4021

HANDLE BRACKET (RH)

$34.99

$

Usually ships in 3-6 days

0

31

Cub Cadet 786-04345-4021

HANDLE BRACKET (LH)

$34.99

$

Usually ships in 3-6 days

0

32

Cub Cadet 786-04345-4021

HANDLE BRACKET (LH)

$34.99

$

Usually ships in 3-6 days

0

33

Cub Cadet 786-04358

RETURN BRACKET

$10.99

$

Usually ships in 3-6 days

0

34

Cub Cadet 786-05018

NEUTRAL HANDLE

$33.99

$

Usually ships in 3-6 days

0

35

Cub Cadet 786-05019A-4021

NEUTRAL CABLE BRACKET

$10.99

$

Usually ships in 3-6 days

0

36

Cub Cadet 786-05020

PIVOT LEVER

$

$

Not available
