VT-100 (21A-70M8709) - Cub Cadet Vertical-Tine Tiller (2015) Handle Assembly Parts Diagram

Vertical-Tine Tiller

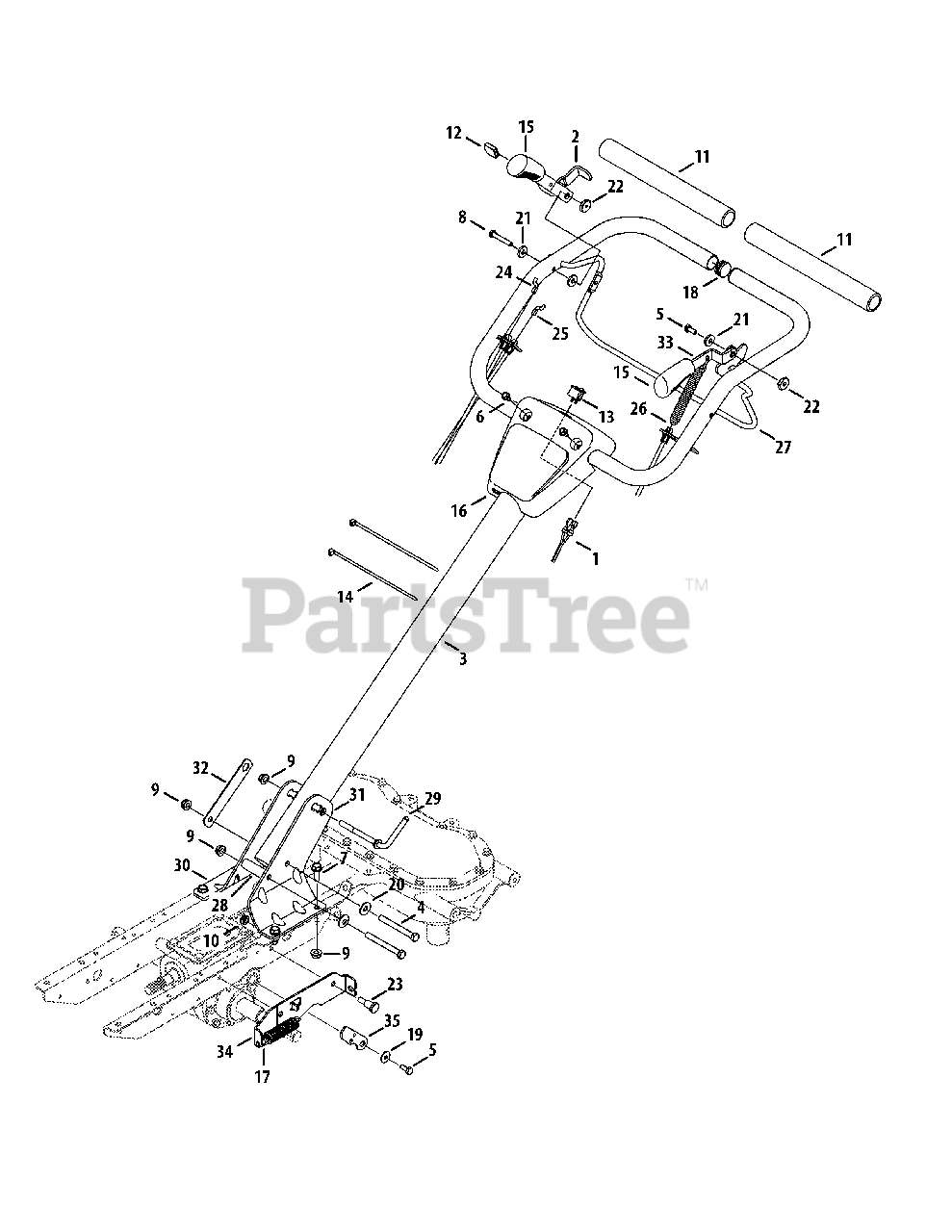

Handle Assembly Parts Diagram

  • Title

1

Cub Cadet 929-04157

Harness Assembly Adapter

$23.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 686-04135-4021

Reverse Handle Assembly

$25.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 686-05020-4021

Handle Assembly

$99.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 710-0189

Hex Head Screw, 5/16-18 x 3.00

$6.49

$

In Stock, Qty 5

0

5

Cub Cadet 710-0433

Hex Screw, 1/4-20 x .625

$4.49

$

In Stock, Qty 20+

0

6

Cub Cadet 710-0599

Screw, 1/4-20 x 0.500

$4.49

$

In Stock, Qty 20+

0

7

Cub Cadet 710-1238

Hex Head Washer, 5/16-18 x .875
(Superseded to 710-1238A)

$4.49

$

In Stock, Qty 20+

0

8

Cub Cadet 710-3288

Hex Head Screw, 1/4-20 x 1.62

$6.99

$

In Stock, Qty 12

0

9

Cub Cadet 712-04063

Flangelock Nut, 5/16-18

$3.99

$

In Stock, Qty 20+

0

10

Cub Cadet 912-3009

Hex Lock Nut, 5/16-18
(Superseded to 712-3009)

$

$

Not available

11

Cub Cadet 720-0278A

Foam Handle Grip

$22.99

$

In Stock, only 3 left!

0

12

Cub Cadet 920-04173

Reverse Handle Grip

$4.49

$

In Stock, only 3 left!

0

13

Cub Cadet 725-2009

Rocker Switch

$5.49

$

Usually ships in 3-6 days

0

14

Cub Cadet 726-0317

Cable Tie, 8.5 LG

$4.99

$

Usually ships in 3-6 days

0

15

Cub Cadet 731-04735

Reverse Handle Grip

$20.99

$

In Stock, only 1 left!

0

16

Cub Cadet 731-07025

Handle Cover
(Superseded to 931-07025A)

$22.99

$

Usually ships in 3-6 days

0

17

Cub Cadet 732-05201

Extension Spring

$5.99

$

Usually ships in 3-6 days

0

18

Cub Cadet 735-04105

Plug End
(Superseded to 735-04105A)

$5.99

$

Usually ships in 3-6 days

0

19

Cub Cadet 736-0270

Bell Washer .265 x 0.75

$3.99

$

In Stock, Qty 20+

0

20

Cub Cadet 736-04193

Belleville Washer, .331 x .827 x .098

$6.99

$

In Stock, Qty 20+

0

21

Cub Cadet 936-0176

Washer, Flat, .250 x .750 x .119
(Superseded to 736-0176)

$4.99

$

In Stock, only 4 left!

0

22

Cub Cadet 738-0440

Spacer, .375 x .165

$5.99

$

In Stock, only 4 left!

0

23

Cub Cadet 738-0754

Shoulder Screw, .437 Dia. x .54

$4.49

$

In Stock, Qty 20+

0

24

Cub Cadet 946-04504

Reverse Cable

$33.99

$

In Stock, only 4 left!

0

25

Cub Cadet 946-04506

Forward Cable

$36.99

$

In Stock, Qty 7

0

26

Cub Cadet 946-05178

Neutral Cable

$42.99

$

In Stock, only 1 left!

0

27

Cub Cadet 747-04789A-0637

Clutch Bail

$29.99

$

Usually ships in 3-6 days

0

28

Cub Cadet 750-0885A

Spacer, .322 x .625 x 2.00

$11.99

$

Usually ships in 3-6 days

0

29

Cub Cadet 786-0340B

Handle Crank

$19.99

$

Usually ships in 3-6 days

0

30

Cub Cadet 786-04344-4021

Handle Bracket, RH

$34.99

$

Usually ships in 3-6 days

0

31

Cub Cadet 786-04345-4021

Handle Bracket, LH

$34.99

$

Usually ships in 3-6 days

0

32

Cub Cadet 786-04358

Retainer Nut Bracket

$10.99

$

Usually ships in 3-6 days

0

33

Cub Cadet 786-05018

Neutral Handle

$33.99

$

Usually ships in 3-6 days

0

34

Cub Cadet 786-05019-4021

Neutral Cable Frame Bracket
(Superseded to 786-05019A-4021)

$10.99

$

Usually ships in 3-6 days

0

35

Cub Cadet 786-05020

Neutral Pivot Lever

$

$

Not available
