VQ 1002 SP - Billy Goat QuietVac Lawn & Litter Vacuum HANDLE TRANS Parts Diagram

QuietVac Lawn & Litter Vacuum

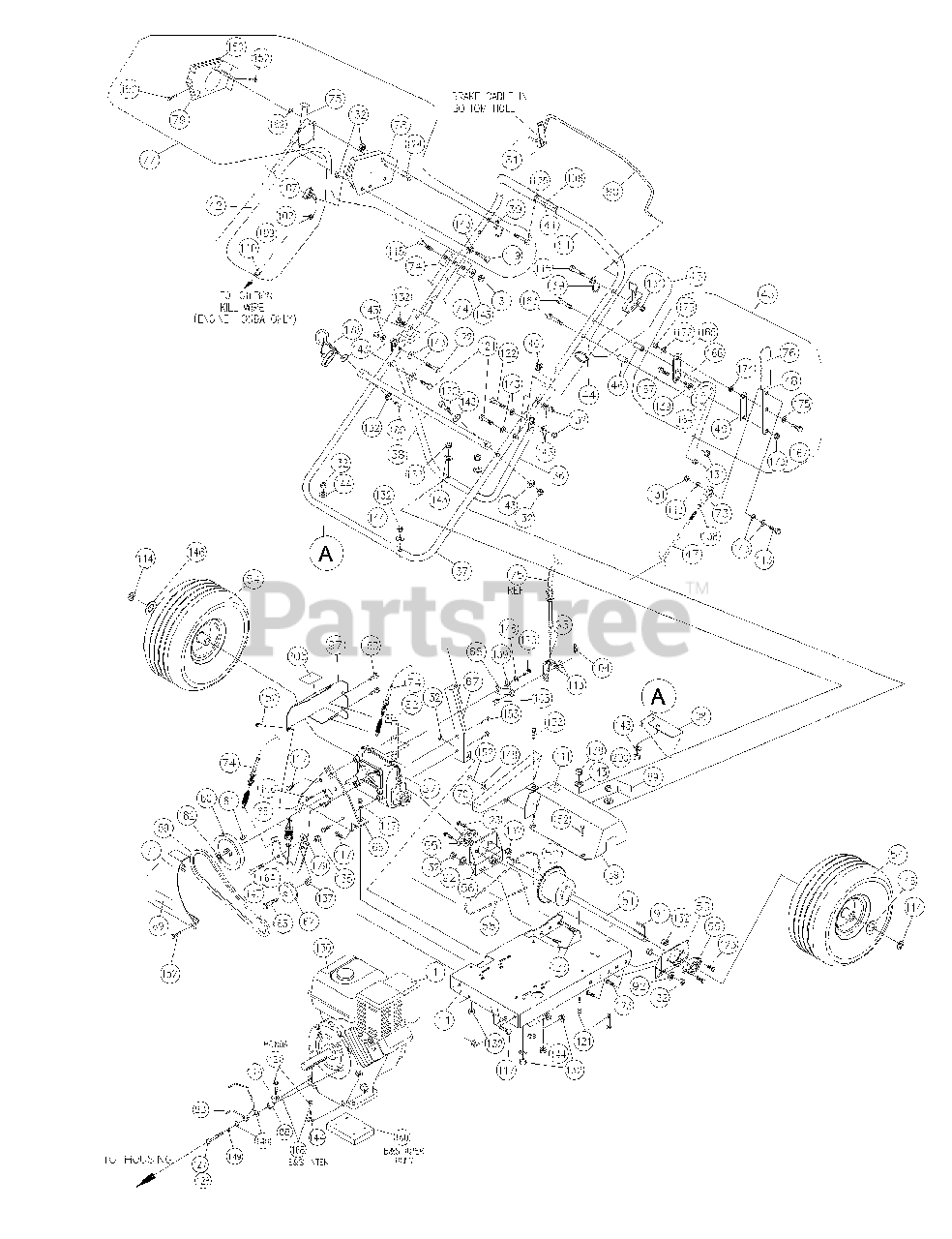

HANDLE TRANS Parts Diagram

  • Title
1

Billy Goat 430352

ENGINE 10 HP INTEK B&S

$

$

Currently unavailable

2

Billy Goat 830126

ANGLE MOUNT HDLE WA

$

$

Not available

3

Billy Goat 830244

IMPELLER ASSY VQ (INCLUDES ITEM 4,5,6,7)

$

$

Not available

4

Billy Goat 9201125

KEY 0.25 SQ. X 2.75"

$2.49

$

Usually ships in 2-11 days

0

5

Billy Goat 8177013

WASHER LOCK 7/16 S/T MED

$0.99

$

In Stock, Qty 9

0

6

Billy Goat 830114

SCREW CAP 7/16 NF x 2 1/4 GR8 TORQ 55-60 FT LBS (75-81 N.m)

$23.99

$

Usually ships in 2-11 days

0

7

Billy Goat 830113

SPACER ENGINE

$13.99

$

Usually ships in 2-11 days

0

9

Billy Goat 830136

SCREW CAP 5/16 NF x 2 1/2 GRD. 8

$3.99

$

Usually ships in 2-11 days

0

10

Billy Goat 830153

HOUSING ASSEMBLY W/LABELS VQ

$

$

Not available

11

Billy Goat 830171

FRAME WA VQ

$

$

Not available

12

Billy Goat 830010

NOZZLE ASSEMBLY VQ
(Superseded to 830010-S)

$

$

Not available

13

Billy Goat 830181

NOZZLE ASSY W/LABELS
(Superseded to 830010-S)

$

$

Not available

14

Billy Goat 800183

HOSE TUBE PLUG VQ

$7.49

$

Usually ships in 2-11 days

0

15

Billy Goat 830193

PLATE DOOR NOZZLE HOSE

$16.99

$

Usually ships in 2-11 days

0

16

Billy Goat 830194

ROD DIVERTER VQ

$25.99

$

Usually ships in 2-11 days

0

17

Billy Goat 830176

GROMMET FLG. 1/2 MOLDED

$1.49

$

In Stock, only 3 left!

0

18

Billy Goat 830197

BRKT BOGIE ASSY LH
(Superseded to 830197-S)

$94.99

$

Usually ships in 2-11 days

0

19

Billy Goat 830198

BRKT BOGIE ASSY RH
(Superseded to 830198-S)

$

$

Not available

20

Billy Goat 830199

BRKT BOGIE WA LH

$

$

Not available

21

Billy Goat 830200

BRKT BOGIE WA RH

$

$

Not available

22

Billy Goat 850204

ROLLER GUIDE

$15.99

$

In Stock, only 3 left!

0

23

Billy Goat 850205

PIN ROLLER

$3.49

$

Usually ships in 2-11 days

0

24

Billy Goat 850149

WHEEL BOGIE 3"
(Superseded to 800149)

$22.99

$

Usually ships in 2-11 days

0

25

Billy Goat 850150-03

SPACER 5/16 X 1 5/8
(Superseded to 800149)

$22.99

$

Usually ships in 2-11 days

0

26

Billy Goat 830540

CASTER & BRKT LH ASSY SEMI-PNEU VQ

$362.99

$

Usually ships in 2-11 days

0

27

Billy Goat 830541

CASTER & BRKT RH ASSY SEMI-PNEUVQ
(Superseded to 830541-S)

$

$

Not available

28

Billy Goat 830147

BRKT LH WA 8" CASTER

$

$

Not available

29

Billy Goat 830148

BRKT RH WA 8" CASTER

$

$

Not available

30

Billy Goat 830539-S

CASTER ASSY 8" SEMI-PNEU 3/4 NC (INCL ITEM 33 (4), 94, 95, 125, 134)

$219.99

$

Usually ships in 2-11 days

0

31

Billy Goat 850154

KNOB HAND

$10.99

$

In Stock, only 1 left!

0

32

Billy Goat 800227

NUT WING WA

$25.99

$

In Stock, only 1 left!

0

33

Billy Goat 800109

WASHER 3/4 NYLON

$1.49

$

In Stock, only 1 left!

0

34

Billy Goat 830159

ELBOW ASSY W/LABELS VQ

$

$

Not available

35

Billy Goat 830160

GASKET FLANGE TRANSITION VQ

$8.99

$

Usually ships in 2-11 days

0

36

Billy Goat 830162

HANDLE BRACE REAR

$57.99

$

Usually ships in 2-11 days

0

37

Billy Goat 830161

HANDLE LOWER VQ

$62.99

$

Usually ships in 2-11 days

0

38

Billy Goat 830163

TUBE HANDLE BAG SUPPORT

$

$

Not available

39

Billy Goat 800178

ROD BAG LOOP

$2.99

$

Usually ships in 2-11 days

0

40

Billy Goat 890132

PLUG TUBE INSERT 1" OD

$

$

Not available

41

Billy Goat 890295-S

HANDLE ASSY UPPER W/GRIP (39, 45, 46, 81, 114, 115, 131, 163)
(Superseded to 890326)

$95.99

$

Usually ships in 2-11 days

0

42

Billy Goat 830242

PART NOT APPLICABLE ON THIS MODEL
(Superseded to 500281)

$13.99

$

In Stock, only 1 left!

0

43

Billy Goat 900514-00

CONTROL THROTTLE ASSY VQ SERVICE

$37.99

$

Usually ships in 2-11 days

0

44

$0.99

$

In Stock, only 2 left!

0

45

Billy Goat 830288

DOOR NOZZLE FRICTION ASSY

$

$

Not available

46

$0.99

$

Usually ships in 2-11 days

0

47

Billy Goat 830286

ROD DOOR NOZZLE

$20.99

$

Usually ships in 2-11 days

0

48

Billy Goat 850189

BAR LEVER DOOR

$15.99

$

Usually ships in 2-11 days

0

49

Billy Goat 850191

PLATE FRICTION LIFT

$

$

Not available

50

Billy Goat 830301

BAG ASSY VQ / TURF BAG 830313

$372.99

$

Usually ships in 2-11 days

0

51

Billy Goat 830014

DIFFERENTIAL ASSY

$

$

Not available

52

Billy Goat 830021

SPROCKET 35 TOOTH #41

$159.99

$

Usually ships in 2-11 days

0

53

Billy Goat 440153

WASHER 1.5 OD X .453 ID X .25 THK

$2.99

$

Usually ships in 2-11 days

0

54

Billy Goat 830177

WHEEL 13" x 6.5" PNEU. SP

$185.99

$

Usually ships in 2-11 days

0

55

Billy Goat 850232

BRG ASSY VQSP

$45.99

$

In Stock, only 1 left!

0

56

Billy Goat 830530

BRKT MOUNT BEARING

$

$

Not available

57

Billy Goat 830179

TRANSMISSION 5 SPEED 1 REV W/BRAKE (TECUMSEH)

$888.99

$

Usually ships in 2-11 days

0

58

Billy Goat 830020

CHAIN #41 x 68P VQSP

$58.99

$

Usually ships in 2-11 days

0

59

Billy Goat 830223

BELT “V” 4L x 34" OUTSIDE LG.

$42.99

$

In Stock, only 1 left!

0

60

Billy Goat 830180

PULLEY 5.0 DIA. A SEC 0.625 ID
(Superseded to 830180-S)

$82.99

$

Usually ships in 2-11 days

0

61

Billy Goat 850234

KEY HIPRO 3/16 X 3/4

$2.49

$

In Stock, only 2 left!

0

62

Billy Goat 800260

PULLEY IDLER
(Superseded to 5108777)

$105.99

$

Usually ships in 2-11 days

0

63

Billy Goat 800888

BOLT IDLER

$9.99

$

In Stock, only 1 left!

0

64

Billy Goat 830527

ARM IDLER WA VQ

$

$

Not available

65

$10.99

$

Usually ships in 2-11 days

0

66

Billy Goat 830222

BRKT TRANSMISSION WA VQ

$

$

Not available

67

Billy Goat 830520

BRKT TRANSMISSION REAR WELD LONG

$

$

Not available

68

Billy Goat 830508

BAR LINK SHIFT OFFSET VQ

$71.99

$

Usually ships in 2-11 days

0

69

Billy Goat 830253

GUARD DIFFERENTIAL VQ WELD

$

$

Not available

70

Billy Goat 830231

GUARD CHAIN VQ WELD

$

$

Not available

71

Billy Goat 830252

GUARD PULLEY W/LABEL

$

$

Not available

72

Billy Goat 430303

LABEL PRODUCT DECAL LG CIRCLE

$6.99

$

In Stock, only 1 left!

0

73

Billy Goat 351278

SPHERICAL ROD END MSF-5

$12.99

$

Usually ships in 2-11 days

0

74

Billy Goat 830210

CABLE CLUTCH ASSY

$35.99

$

Usually ships in 2-11 days

0

75

Billy Goat 830315

CONTROL SHIFT VQSP

$299.99

$

Usually ships in 2-11 days

0

$6.99

$

Usually ships in 2-11 days

0

77

Billy Goat 830518

CONTROL ASSY VQSP
(Superseded to 830518-S)

$

$

Not available

78

Billy Goat 830505

BRACKET CONTROL SHIFT

$26.99

$

Usually ships in 2-11 days

0

79

Billy Goat 830314

COVER CONTROL SHIFT VQ

$28.99

$

Usually ships in 2-11 days

0

80

Billy Goat 830235

ROD BAIL CLUTCH

$

$

Not available

81

Billy Goat 400570

GRIP HANDLE 1" x 13"

$6.99

$

In Stock, only 2 left!

0

82

Billy Goat 830225

BAR BRAKE CABLE MOUNT

$

$

Not available

83

Billy Goat 830133

WIRE BELT GUIDE VQ

$

$

Not available

84

Billy Goat 400340

GRIP RING

$

$

Not available

85

Billy Goat 400332

SPRING COMPRESSION

$1.99

$

In Stock, only 4 left!

0

86

$38.99

$

Usually ships in 2-11 days

0

87

Billy Goat 890142

SPRING DOOR

$3.99

$

Usually ships in 2-11 days

0

88

Billy Goat 830134

PART NOT APPLICABLE ON THIS MODEL

$7.49

$

Usually ships in 2-11 days

0

89

Billy Goat 900327

LABEL DANGER GUARDS

$3.99

$

In Stock, only 3 left!

0

91

Billy Goat 9201084

KEY SQ 3/16 X 1 3/4

$2.99

$

In Stock, only 1 left!

0

92

Billy Goat 800177

WASHER 5/16 TWISTED TOOTH

$4.49

$

Usually ships in 2-11 days

0

93

Billy Goat 830512

CLIP ASSY GEAR SELECTOR

$79.99

$

Usually ships in 2-11 days

0

94

Billy Goat 830545-1

FORK CASTER 8" 3/4 NC

$118.99

$

Usually ships in 2-11 days

0

95

Billy Goat 830515

PART NOT APPLICABLE ON THIS MODEL

$1.49

$

Usually ships in 2-11 days

0

97

Billy Goat 830227

GUARD BRAKE VQ

$38.99

$

Usually ships in 2-11 days

0

98

Billy Goat 830544

GUARD BELT VQ

$18.99

$

Usually ships in 2-11 days

0

99

Billy Goat 830196

LABEL DIVERTER INSTRUCTIONS

$3.99

$

Usually ships in 2-11 days

0

100

Billy Goat 400424

LABEL DANGER

$3.99

$

In Stock, only 1 left!

0

101

Billy Goat 810736

LABEL DANGER FLYING MATERIAL

$3.99

$

In Stock, only 2 left!

0

102

Billy Goat 830515

PART NOT APPLICABLE ON THIS MODEL

$1.49

$

Usually ships in 2-11 days

0

103

Billy Goat 830513

PIN CLEVIS

$1.99

$

Usually ships in 2-11 days

0

104

$1.49

$

In Stock, only 2 left!

0

106

Billy Goat 830503

LABEL CLUTCH VQ

$3.99

$

Usually ships in 2-11 days

0

107

Billy Goat 500281

PART NOT APPLICABLE ON THIS MODEL

$13.99

$

In Stock, only 1 left!

0

109

Billy Goat 890442

PART NOT APPLICABLE ON THIS MODEL

$19.99

$

In Stock, only 1 left!

0

110

Billy Goat 810673

PART NOT APPLICABLE ON THIS MODEL

$1.99

$

Usually ships in 2-11 days

0

111

Billy Goat 830502

LABEL OIL

$3.99

$

Usually ships in 2-11 days

0

113

Billy Goat 8041007

SCREW CAP 1/4-20 x 1 1/4"

$0.99

$

In Stock, only 1 left!

0

114

Billy Goat 850230

RING RETAINING "E" 3/4

$0.99

$

Usually ships in 2-11 days

0

115

Billy Goat 8041010

SCREW CAP 1/4-20 x 2"

$0.99

$

In Stock, Qty 7

0

116

Billy Goat 8059136

SCREW CAP MACH 10-18X3/4 WF ZP

$0.99

$

In Stock, Qty 6

0

117

Billy Goat 8041026

SCREW CAP 5/16-18 x 3/4"

$0.99

$

In Stock, only 1 left!

0

118

Billy Goat 830279

PLATE DEBRIS DEFLECTOR

$

$

Not available

119

Billy Goat 8041029

SCREW CAP 5/16-18 x 1 1/4"

$0.99

$

Usually ships in 2-11 days

0

120

Billy Goat 8041030

SCREW CAP 5/16-18 x 1 1/2

$0.99

$

Usually ships in 2-11 days

0

121

Billy Goat 8041031

SCREW CAP 5/16-18 x 1 3/4"

$0.99

$

In Stock, only 3 left!

0

122

Billy Goat 8041032

SCREWCAP 5/16-18 X 2 1/4"

$0.99

$

In Stock, Qty 6

0

123

Billy Goat 8024039

BOLT CARRIAGE 5/16-18 X 3/4

$0.99

$

In Stock, Qty 10

0

124

Billy Goat 8059135

SCREW #10-24NC X 5/8 HEX

$0.99

$

Usually ships in 2-11 days

0

125

Billy Goat 830546

SCREW CAP 1/2-10 x 4 1/2"

$

$

Currently unavailable

126

Billy Goat 850408

SCREW CAP 1/4 NF x 1/2 GR. 5"

$0.99

$

Usually ships in 2-11 days

0

127

Billy Goat 430412

PART NOT APPLICABLE ON THIS MODEL

$2.99

$

Usually ships in 2-11 days

0

128

Billy Goat 8042030

SCREWCAP 5/16 NF X 1 1/2

$2.99

$

Usually ships in 2-11 days

0

129

Billy Goat 8041033

SCREWCAP 5/16-18 X 2 1/4"

$0.99

$

Usually ships in 2-11 days

0

130

Billy Goat 100261

LABEL WARNING FUEL EN/SP

$3.99

$

Usually ships in 2-11 days

0

131

Billy Goat 8160001

NUT LOCK 1/4 NC

$0.99

$

In Stock, Qty 8

0

132

Billy Goat 8160002

NUT LOCK 5/16 NC

$0.99

$

In Stock, only 4 left!

0

133

Billy Goat 8155007

NUT LOCK 10-24

$0.99

$

Usually ships in 2-11 days

0

134

Billy Goat 610305

NUT LOCK 1/2"-13 LT WT TH ZP

$6.49

$

Usually ships in 2-11 days

0

135

Billy Goat 8161042

NUT LOCK 3/8 NC THIN HT

$0.99

$

In Stock, Qty 7

0

136

Billy Goat 890576

LABEL PRODUCT DECAL VQ

$9.99

$

Usually ships in 2-11 days

0

137

Billy Goat 8142003

NUT REG. 3/8 NC

$0.99

$

Usually ships in 2-11 days

0

138

Billy Goat 8149002

NUT REG. 5/16 NF

$0.99

$

Usually ships in 2-11 days

0

139

Billy Goat 8172007

WASHER SAE 1/4

$0.99

$

In Stock, Qty 7

0

140

Billy Goat 8172008

WASHER SAE 5/16

$0.99

$

In Stock, Qty 9

0

141

Billy Goat 8172009

WASHER SAE 3/8

$1.49

$

In Stock, Qty 5

0

143

Billy Goat 8171002

WASHER FLAT CUT 1/4

$0.99

$

In Stock, Qty 10

0

144

Billy Goat 8171003

WASHER FLAT CUT 5/16

$0.99

$

In Stock, Qty 10

0

146

Billy Goat 850238

WASHER 3/4 (0.765 x 1.25 x 0.06)

$1.49

$

In Stock, only 2 left!

0

147

Billy Goat 360184

BOLT SHOULDER 3/8 X 3/4"

$4.99

$

Usually ships in 2-11 days

0

148

Billy Goat 8177010

WASHER LOCK 1/4

$0.99

$

Usually ships in 2-11 days

0

149

Billy Goat 8177011

WASHER LOCK 5/16

$0.99

$

In Stock, Qty 10

0

150

Billy Goat 830237

LABEL SPEED CONTROL

$3.99

$

Usually ships in 2-11 days

0

151

Billy Goat 8059143

SCREW MACH #10-24 x 2"

$0.99

$

In Stock, only 1 left!

0

152

Billy Goat 8122082

SCREW SHT. MTL 1/4 AB x 3/4

$1.49

$

Usually ships in 2-11 days

0

153

Billy Goat 8123128

SCREW SELF-TAP 5/16 NC x 3/4 HEX

$1.49

$

In Stock, only 1 left!

0

154

Billy Goat 8195100

PIN ROLL 1/8 x 3/4

$0.99

$

Usually ships in 2-11 days

0

155

Billy Goat 8197016

PIN COTTER 3/32 x 3/4

$0.99

$

In Stock, Qty 9

0

156

Billy Goat 8197031

PIN COTTER 1/8 x 1"

$0.99

$

Usually ships in 2-11 days

0

157

Billy Goat 8041035

SCREW CAP 5/16-18 x 2 3/4

$0.99

$

Usually ships in 2-11 days

0

158

Billy Goat 830204

LOOSE PARTS BAG ASSY VQ

$

$

Currently unavailable

159

Billy Goat 830138

LABEL DANGER INSTRUCTIONS

$6.49

$

Usually ships in 2-11 days

0

160

Billy Goat 430355

SPACER ENGINE INTEK

$88.99

$

Usually ships in 2-11 days

0

161

$11.99

$

Usually ships in 2-11 days

0

162

Billy Goat 830280

DEFLECTOR DEBRIS ASSY

$

$

Not available

163

Billy Goat 8041009

SCREW CAP 1/4-20 x 2"

$0.99

$

In Stock, only 2 left!

0

164

Billy Goat 850192

PLATE QUAD LIFT

$14.99

$

Usually ships in 2-11 days

0

165

Billy Goat 850193

PLATE CLAMP LIFT

$8.99

$

Usually ships in 2-11 days

0

166

Billy Goat 850194

BALL 1/4"

$1.49

$

Usually ships in 2-11 days

0

167

Billy Goat 8041006

SCREW CAP 1/4-20 x 1"

$0.99

$

Usually ships in 2-11 days

0

168

Billy Goat 8041034

SCREWCAP 5/16-18 X 2 1/2"

$0.99

$

Usually ships in 2-11 days

0

169

Billy Goat 8164005

NUT LOCK #10-24 NC LT

$0.99

$

In Stock, only 4 left!

0

172

Billy Goat 850207

WASHER - BELVILLE 1/4"

$1.99

$

Usually ships in 2-11 days

0

173

Billy Goat 8160001

NUT LOCK 1/4-20

$0.99

$

In Stock, Qty 8

0

174

Billy Goat 8143001

NUT JAM 1/4" NC HEX

$0.99

$

Usually ships in 2-11 days

0

175

Billy Goat 8181007

WASHER LOCK - EXT 1/4

$0.99

$

Usually ships in 2-11 days

0

178

Billy Goat 440280

EYEBOLT PIGTAIL 5/16-18 X 1 1/4"

$6.99

$

Usually ships in 2-11 days

0

179

Billy Goat 890131

WASHER SHIM 0.020"

$6.49

$

Usually ships in 2-11 days

0

180

Billy Goat 830548

CAP ROPE GUIDE BOLT VQ

$

$

Currently unavailable

182

Billy Goat 850233

SNAP RING

$0.99

$

In Stock, only 1 left!

0

190

Billy Goat 100256

PART NOT APPLICABLE ON THIS MODEL

$2.99

$

In Stock, Qty 5

0

200

Billy Goat 8142002

NUT 5/116" - 18 HEX ZP

$0.99

$

Usually ships in 2-11 days

0

205

Billy Goat 520116

LABEL MADE IN U.S.A.

$

$

Not available
