Volunteer WT CAB 747 EFI (37AM48FM010) - Cub Cadet 4x4 Utility Vehicle (2017) Transfer Case Kit Parts Diagram

4x4 Utility Vehicle

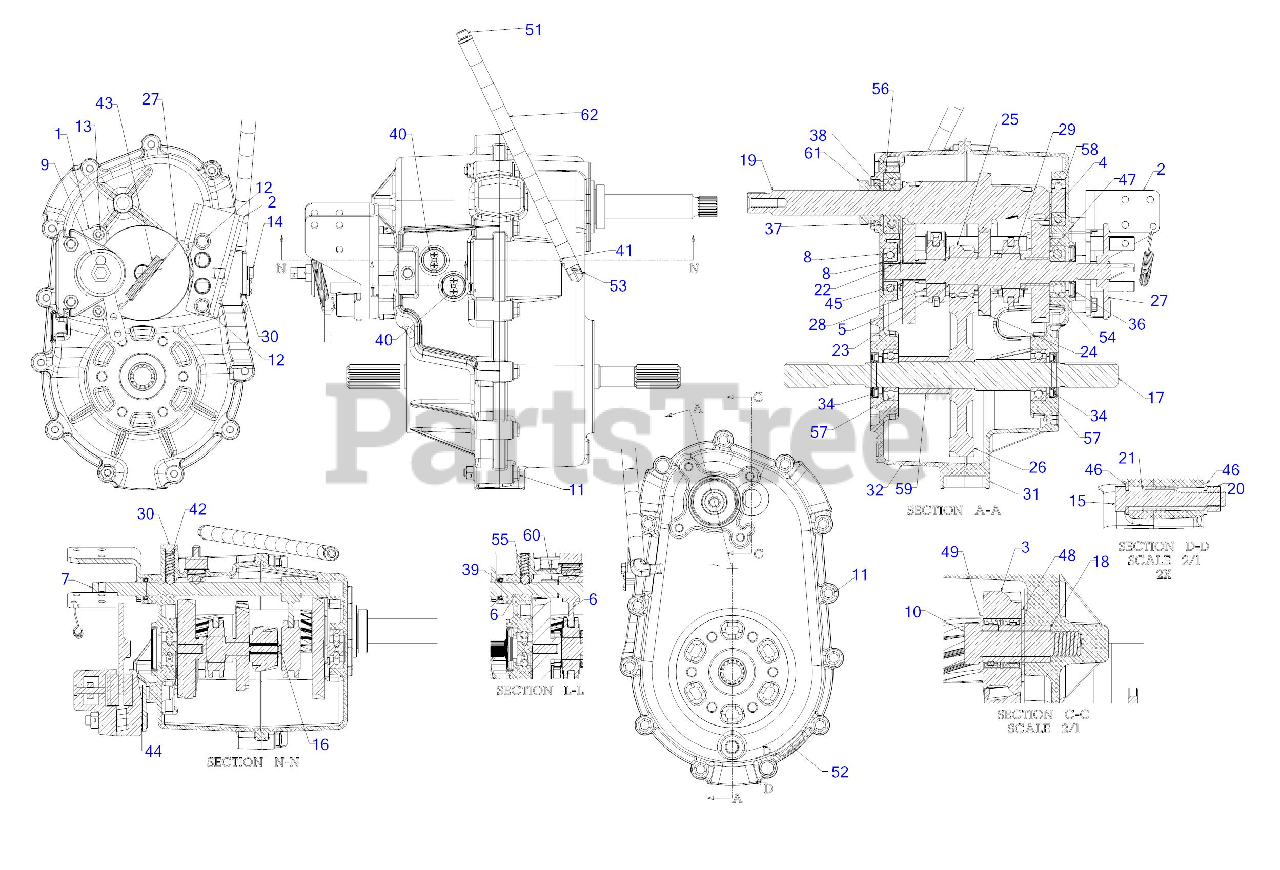

Transfer Case Kit Parts Diagram

  • Title

1

Cub Cadet 607-04321

MOUNT BRACKET ASSEMBLY

$15.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 607-04322

SHIFTER MOUNT BRACKET

$44.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 911-04072A

REVERSE IDLER GEAR ASSEMBLY

$96.99

$

In Stock, only 2 left!

0

3

Cub Cadet 741-04169

NEEDLE BEARING

Note: (Not Shown)

$20.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 917-04031

REVERSE PINION ASSEMBLY

$160.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 717-04237

REVERSE GEAR:4X4

Note: (Not Shown)

$160.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 741-3118

SLEEVE BEARING

Note: (Not Shown)

$26.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 617-04035

LOW SPEED GEAR ASSEMBLY

$207.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 717-04234

LO GEAR:4X4:40T

Note: (Not Shown)

$108.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 741-04208

SLEEVE BEARING

Note: (Not Shown)

$8.99

$

Usually ships in 3-6 days

0

6

Cub Cadet 918-04318A

HI-LO YOKE ASSEMBLY

$178.99

$

Usually ships in 3-6 days

0

6

Cub Cadet 911-05081

FWD/REVERSE ACTUATOR SHAFT

Note: (Not Shown)

$56.99

$

Usually ships in 3-6 days

0

6

Cub Cadet 716-04135

RETAINING RING

Note: (Not Shown)

$3.99

$

In Stock, only 1 left!

0

6

Cub Cadet 718-04176

UV ACTUATOR YOKE

Note: (Not Shown)

$83.99

$

In Stock, only 3 left!

0

7

Cub Cadet 618-04319

LO YOKE ASSEMBLY

$151.99

$

Usually ships in 3-6 days

0

7

Cub Cadet 911-05082

LO ACTUATOR SHAFT

Note: (Not Shown)

$54.99

$

Usually ships in 3-6 days

0

7

Cub Cadet 716-04135

RETAINING RING

Note: (Not Shown)

$3.99

$

In Stock, only 1 left!

0

7

Cub Cadet 718-04079B

4WD ACTUATOR YOKE

Note: (Not Shown)

$85.99

$

Usually ships in 3-6 days

0

8

Cub Cadet 641-00002

BEARING ASSEMBLY

$26.99

$

Usually ships in 3-6 days

0

8

Cub Cadet 941-3057

BALL BEARING

Note: (Not Shown)

$38.99

$

In Stock, Qty 10

0

8

Cub Cadet 750-04681

FLANGE SPACER

Note: (Not Shown)

$32.99

$

Usually ships in 3-6 days

0

9

Cub Cadet 661-04019

TRANSFER CASE BRAKE ASSEMBLY

$141.99

$

Usually ships in 3-6 days

0

10

Cub Cadet 710-04644

SCREW 1/2-13 x 2.00 GR5

$3.49

$

Usually ships in 3-6 days

0

11

Cub Cadet 710-0602

SCREW 5/16-18 x 1.00

$4.49

$

In Stock, Qty 20+

0

12

Cub Cadet 710-1260A

SCREW 5/16-18 x .750

$3.99

$

In Stock, Qty 20+

0

13

Cub Cadet 710-1314A

SCREW 5/16-18 x .625

$4.49

$

In Stock, Qty 20+

0

14

Cub Cadet 710-1652

SCREW 1/4-20X.625

$4.49

$

In Stock, Qty 20+

0

15

Cub Cadet 710-3103

SCREW 5/16-18 x 2.0 GR5

$4.49

$

In Stock, Qty 20+

0

16

Cub Cadet 911-04445A

MID SHAFT (4X4)

$180.99

$

Usually ships in 3-6 days

0

17

Cub Cadet 911-04446

OUTPUT SHAFT (4X4)

$155.99

$

In Stock, only 1 left!

0

18

Cub Cadet 911-04447

REVERSE IDLER SHAFT

$12.99

$

Usually ships in 3-6 days

0

19

Cub Cadet 911-06241

INPUT SHAFT

$406.99

$

Usually ships in 3-6 days

0

20

Cub Cadet 912-0158

HEX NUT

$3.49

$

In Stock, Qty 13

0

21

Cub Cadet 915-3045

DOWEL BUSHING

$9.99

$

Usually ships in 3-6 days

0

22

Cub Cadet 916-0131

SNAP RING

$7.49

$

In Stock, only 1 left!

0

23

Cub Cadet 716-04059

RETAINING RING

$7.49

$

Usually ships in 3-6 days

0

24

Cub Cadet 917-04236

HIGH GEAR:4X4:3

$114.99

$

Usually ships in 3-6 days

0

25

Cub Cadet 917-04332

FINAL PINION GEAR

$66.99

$

Usually ships in 3-6 days

0

26

Cub Cadet 917-04333

FINAL GEAR

$246.99

$

Usually ships in 3-6 days

0

27

Cub Cadet 717-1177A

DISC BRACKE

$34.99

$

In Stock, only 2 left!

0

28

Cub Cadet 718-04163

4X4 LO COLLAR

$59.99

$

Usually ships in 3-6 days

0

29

Cub Cadet 718-04226A

4X4 HI-REV COLLAR

$131.99

$

Usually ships in 3-6 days

0

30

Cub Cadet 718-04240

DETENT SPRING PLATE

$6.99

$

Usually ships in 3-6 days

0

31

Cub Cadet 719-04332A

TRANSFER CASE HOUSING (RH)

$336.99

$

Usually ships in 3-6 days

0

32

Cub Cadet 919-04790B

TRANSFER HOUSING

$198.99

$

Usually ships in 3-6 days

0

34

Cub Cadet 721-04146

OIL SEAL 25X46X7

$13.99

$

In Stock, only 4 left!

0

36

Cub Cadet 721-04161

OIL SEAL:20X52X7

$13.99

$

In Stock, only 4 left!

0

37

Cub Cadet 721-04493

OIL SEAL

$7.99

$

Usually ships in 3-6 days

0

38

Cub Cadet 721-04494

O-RING

$4.49

$

Usually ships in 3-6 days

0

39

Cub Cadet 721-0496

OIL SEAL

$10.99

$

In Stock, only 2 left!

0

40

Cub Cadet 725-04626

NEUTRAL SAFTEY SWITCH

$88.99

$

In Stock, only 1 left!

0

41

Cub Cadet 726-0205

HOSE CLAMP 1/20

$3.99

$

In Stock, Qty 18

0

42

Cub Cadet 732-0424

DETENT SPRING

$8.49

$

Usually ships in 3-6 days

0

43

Cub Cadet 732-04248

EXTENSION SPRING

$10.99

$

In Stock, only 2 left!

0

44

Cub Cadet 936-0117

FLAT WASHER

$7.49

$

Usually ships in 3-6 days

0

45

Cub Cadet 936-0256

FLAT WASHER

$7.49

$

Usually ships in 3-6 days

0

46

Cub Cadet 936-0264

FLAT WASHER

$6.99

$

In Stock, only 3 left!

0

47

Cub Cadet 736-0615

THRUST WASHER

$8.99

$

In Stock, only 2 left!

0

48

Cub Cadet 736-3047

THRUST WASHER

$10.99

$

Usually ships in 3-6 days

0

49

Cub Cadet 736-3084

FLAT WASHER

$4.99

$

In Stock, Qty 20+

0

51

Cub Cadet 737-04073

DUCKBILL VENT-3/8 DIA

$35.99

$

Usually ships in 3-6 days

0

52

Cub Cadet 737-04310

PLUG FITTING

$11.99

$

Usually ships in 3-6 days

0

53

Cub Cadet 737-04346

ELBOW FITTING

$22.99

$

Usually ships in 3-6 days

0

54

Cub Cadet 941-04044

BALL BEARING

$30.99

$

Usually ships in 3-6 days

0

55

Cub Cadet 741-04209

DETENT BALL .375

$9.49

$

Usually ships in 3-6 days

0

56

Cub Cadet 741-05018

BALL BEARING

$20.99

$

Usually ships in 3-6 days

0

57

Cub Cadet 941-3037

PTO SHAFT BALL BEARING

$41.99

$

In Stock, Qty 14

0

58

Cub Cadet 941-3057

BALL BEARING

$38.99

$

In Stock, Qty 10

0

59

Cub Cadet 750-04496

OUTPUT SHAFT SPACER

$37.99

$

Usually ships in 3-6 days

0

60

Cub Cadet 750-04705A

SPACER .566 x .725 x .650

$8.99

$

Usually ships in 3-6 days

0

61

Cub Cadet 750-05685

INPUT CASE SPACER-25MM

$77.99

$

Usually ships in 3-6 days

0

62

Cub Cadet 751-10350-22

FUEL HOSE LOW PERMEATION

$19.99

$

Usually ships in 3-6 days

0

Cub Cadet 959-05023

TRANSFER CASE KIT 618-05119

$1555.99

$

Usually ships in 3-6 days

0
