Volunteer WT CAB 747 EFI (37AM48FM010) - Cub Cadet 4x4 Utility Vehicle (2017) Guage Parts Diagram

4x4 Utility Vehicle

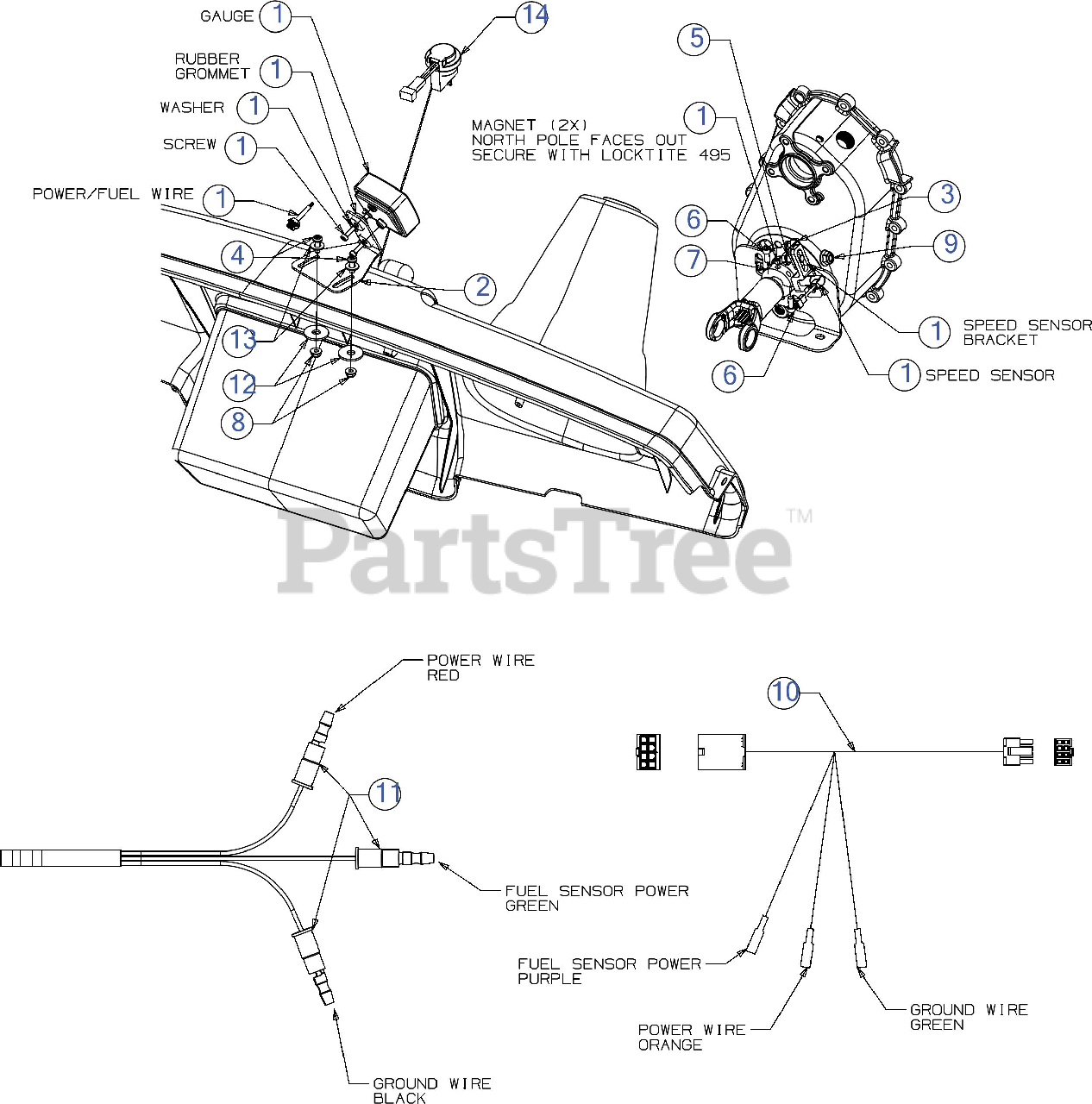

Guage Parts Diagram

  • Title

1

Cub Cadet 625-04049P

UV GAUGE ASSEMBLY

$316.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 707-05168A

GUAGE MOUNT BRACKET

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

Cub Cadet 707-05168A-0637

BRACKET-MOUNT GAUG - POWDER BLACK (0637)

$

$

Not available

$

$

3

Cub Cadet 707-05169A-0637

SENSOR MOUNT BRACKET

$16.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 710-0924

SCREW 1/4-20X.75

$4.49

$

In Stock, Qty 20+

0

5

Cub Cadet 710-3001

SCREW 3/8-16 x .880 GR5

$7.49

$

In Stock, Qty 9

0

6

Cub Cadet 710-3218

SOCKET 1/4-20X.62 GR-8

$4.49

$

Usually ships in 3-6 days

0

7

Cub Cadet 711-04917

SPLIT COLLAR 25/32

$65.99

$

Usually ships in 3-6 days

0

8

Cub Cadet 712-04064

FLANGE LOCK NUT

$3.99

$

In Stock, Qty 20+

0

9

Cub Cadet 712-04065

NUT

$3.99

$

In Stock, Qty 20+

0

10

Cub Cadet 725-04685

UV SPEED HARNESS

$48.99

$

Usually ships in 3-6 days

0

11

Cub Cadet 725-04687

MOLEX CONNECTOR

$9.99

$

Usually ships in 3-6 days

0

12

Cub Cadet 936-0133

FLAT WASHER
(Superseded to 736-0133)

$

$

Not available

13

Cub Cadet 936-0275

FLAT WASHER
(Superseded to 736-0275)

$

$

Not available

14

Cub Cadet 751-10699

FUEL SENSOR LEVEL

$143.99

$

Usually ships in 3-6 days

0

14

Cub Cadet 735-0699

GROMMET 1.21X1.58

Note: (Not Shown)

$16.99

$

In Stock, only 3 left!

0
