Volunteer WT CAB 747 EFI (37AM48FM010) - Cub Cadet 4x4 Utility Vehicle (2016) Electrical Parts Diagram

4x4 Utility Vehicle

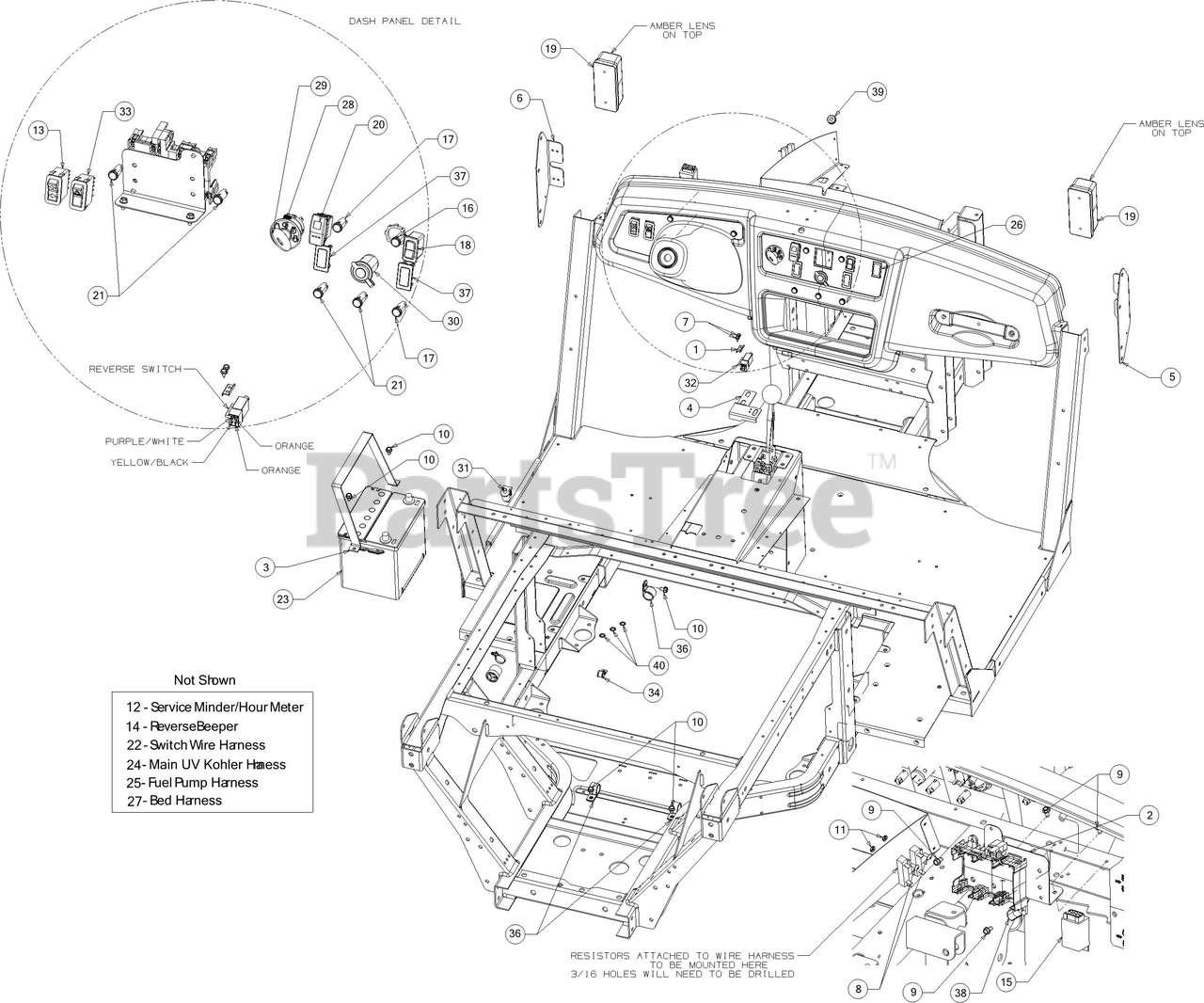

Electrical Parts Diagram

  • Title
1

Cub Cadet 17962

PLATE-SWITCH

$4.99

$

In Stock, only 3 left!

0

2

Cub Cadet 707-04811-0637

FUSE MOUNT BRACKET

$29.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 707-04870B-0637

BATTERY MOUNT BRACKET

$54.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 707-04971

SWITCH BRACKET

$43.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 707-05001A-0637

LIGHT BRACKET (LH)

$65.99

$

Usually ships in 3-6 days

0

6

Cub Cadet 707-05002A-0637

LIGHT BRACKET (RH)

$65.99

$

Usually ships in 3-6 days

0

7

Cub Cadet 910-0224

HEX SCREW AB-TAP #10-16 x 0.500

$3.99

$

In Stock, Qty 20+

0

8

Cub Cadet 710-0473A

SCREW #10-24 x .500

$4.49

$

Usually ships in 3-6 days

0

9

Cub Cadet 710-0599

SCREW 1/4-20 X.500

$4.49

$

In Stock, Qty 20+

0

10

Cub Cadet 710-0607

SCREW 5/16-18 x .500

$6.99

$

In Stock, Qty 9

0

11

Cub Cadet 712-0102A

LOCK NUT 10-24

$3.99

$

Usually ships in 3-6 days

0

12

$146.99

$

In Stock, Qty 5

0

13

Cub Cadet 725-04031

DIRECTIONAL SWITCH

$162.99

$

Usually ships in 3-6 days

0

14

Cub Cadet 925-04069

REVERSE BEEPER

$141.99

$

Usually ships in 3-6 days

0

15

Cub Cadet 925-04211

TURN/HAZARD FLASHER

$290.99

$

Usually ships in 3-6 days

0

16

Cub Cadet 925-04285

RED/REVERSE LIGHT

$71.99

$

Usually ships in 3-6 days

0

17

Cub Cadet 925-04288

YELLOW/NEUTRAL LIGHT

$71.99

$

Usually ships in 3-6 days

0

18

Cub Cadet 725-04352

4X4 ROCKER SWITCH

$59.99

$

In Stock, only 2 left!

0

19

Cub Cadet 925-04487

UV LAMP TURN

$263.99

$

Usually ships in 3-6 days

0

20

Cub Cadet 725-04529

MASTER LIGHT SWITCH
(Superseded to 725-04006)

$47.99

$

Usually ships in 3-6 days

0

21

Cub Cadet 925-04530

GREEN INDICATOR LAMP

$38.99

$

Usually ships in 3-6 days

0

22

$48.99

$

Usually ships in 3-6 days

0

23

Cub Cadet 925-04514

BATTERY-540 CCA

$314.99

$

Usually ships in 3-6 days

0

24

Cub Cadet 925-04891A

MAIN HARNESS

$485.99

$

Usually ships in 3-6 days

0

25

$43.99

$

Usually ships in 3-6 days

0

26

$107.99

$

Usually ships in 3-6 days

0

27

Cub Cadet 925-06701

UV LIGHT HARNESS

$706.99

$

Usually ships in 3-6 days

0

28

Cub Cadet 925-1741

IGNITION SWITCH

$45.99

$

Usually ships in 3-6 days

0

29

Cub Cadet 925-1745A

IGNITION KEY

$17.99

$

In Stock, Qty 20+

0

30

Cub Cadet 725-2003

POWER RECEPTICAL

$42.99

$

Usually ships in 3-6 days

0

31

Cub Cadet 925-3166

SNAP MOUNT SWITCH

$16.99

$

In Stock, Qty 20+

0

32

Cub Cadet 725-3223

PLUNGER SWITCH

$18.99

$

In Stock, only 1 left!

0

33

Cub Cadet 725-3279B

HAZARD LAMP SWITCH

$65.99

$

Usually ships in 3-6 days

0

$7.49

$

Usually ships in 3-6 days

0

36

Cub Cadet 726-0475

HOSE CLAMP 1.0"

$13.99

$

Usually ships in 3-6 days

0

37

Cub Cadet 731-04010

PANEL SWITCH PLUG

$20.99

$

Usually ships in 3-6 days

0

38

Cub Cadet 731-05490

3 WAY RELAY HOLDER

$73.99

$

Usually ships in 3-6 days

0

39

$3.49

$

Usually ships in 3-6 days

0

40

$3.99

$

In Stock, Qty 20+

0

Cub Cadet 726-0470

CABLE TIE

Note: (Not Shown)

$4.99

$

Usually ships in 3-6 days

0
