Volunteer WT 747 EFI (37AM486M010) - Cub Cadet 4x4 Utility Vehicle (2016) Steering Parts Diagram

4x4 Utility Vehicle

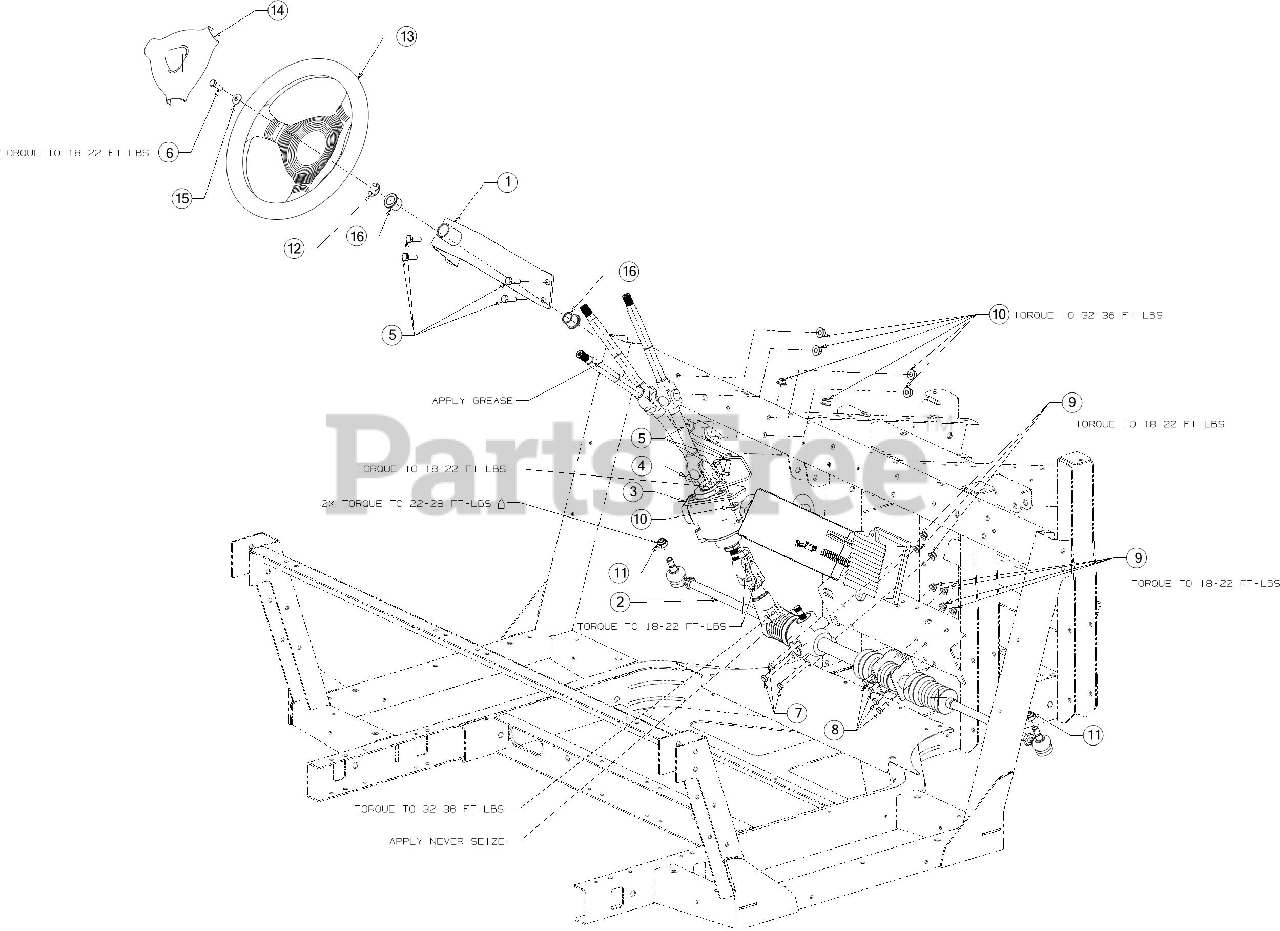

Steering Parts Diagram

  • Title

1

Cub Cadet 607-04124-0637

STEERING WHEEL SUPPORT ASSEMBLY

$125.99

$

Usually ships in 3-6 days

0

1

Cub Cadet 707-04539-0637

UPPER STEERING BRACKET

Note: (Not Shown)

$73.99

$

Usually ships in 3-6 days

0

1

Cub Cadet 750-04364

STEERING TUBE

Note: (Not Shown)

$13.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 617-04041P

STEERING ASSEMBLY

$

$

Not available

2

Cub Cadet 759-04178

KIT-OUTER TIE ROD

Note: (Not Shown)

$

$

Not available

2

Cub Cadet 759-04179

KIT-INNER TIE RODC

Note: (Not Shown)

$

$

Not available

2

Cub Cadet 759-04180

KIT-TIE ROD BOOTS(##621330)

Note: (Not Shown)

$

$

Not available

2

Cub Cadet 759-04181

KIT-NUT M12 x 1.25

Note: (Not Shown)

$4.49

$

Usually ships in 3-6 days

0

3

Cub Cadet 617-05036

EPS STEERING ASSEMBLY
(Superseded to 917-05036)

$2265.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 707-06429

DASH COVER

Note: (Not Shown)

$238.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 717-05324

UPPER STEERING SHAFT
(Superseded to 917-05324)

Note: (Not Shown)

$210.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 717-05325

LOWER STEERING SHAFT
(Superseded to 917-05325A)

Note: (Not Shown)

$209.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 725-06663

EPS MODULE HARNESS
(Superseded to 925-06663)

Note: (Not Shown)

$1013.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 707-06437-0637

EPS MOUNT BRACKET

$40.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 710-0514

SCREW 3/8-16 x 1 GR5

$4.49

$

In Stock, Qty 20+

0

6

Cub Cadet 710-0643

SCREW 5/16-18 x 1.00 GR5

$6.99

$

In Stock, Qty 5

0

7

Cub Cadet 710-1266

SCREW 5/16-18X3.5 GR5

$9.99

$

Usually ships in 3-6 days

0

8

Cub Cadet 710-3008

SCREW 5/16-18 x .75 GR5

$4.49

$

In Stock, Qty 20+

0

9

Cub Cadet 712-04063

FLANGE LOCK NUT 5/16-18

$3.99

$

In Stock, Qty 20+

0

10

Cub Cadet 712-04065

NUT

$3.99

$

In Stock, Qty 17

0

11

Cub Cadet 712-04086

NUT

$8.99

$

Usually ships in 3-6 days

0

12

Cub Cadet 916-0231

E-RING
(Superseded to 716-0231)

$

$

Not available

13

Cub Cadet 731-04514

STEERING WHEEL 3-SPOKE

$172.99

$

Usually ships in 3-6 days

0

14

Cub Cadet 731-06459

STEERING WHEEL COVER

$21.99

$

Usually ships in 3-6 days

0

15

Cub Cadet 736-0242

BELL WASHER .337 X.867 x .057

$4.49

$

In Stock, Qty 20+

0

16

Cub Cadet 941-0339

FLANGE BEARING

$12.99

$

In Stock, Qty 20+

0
