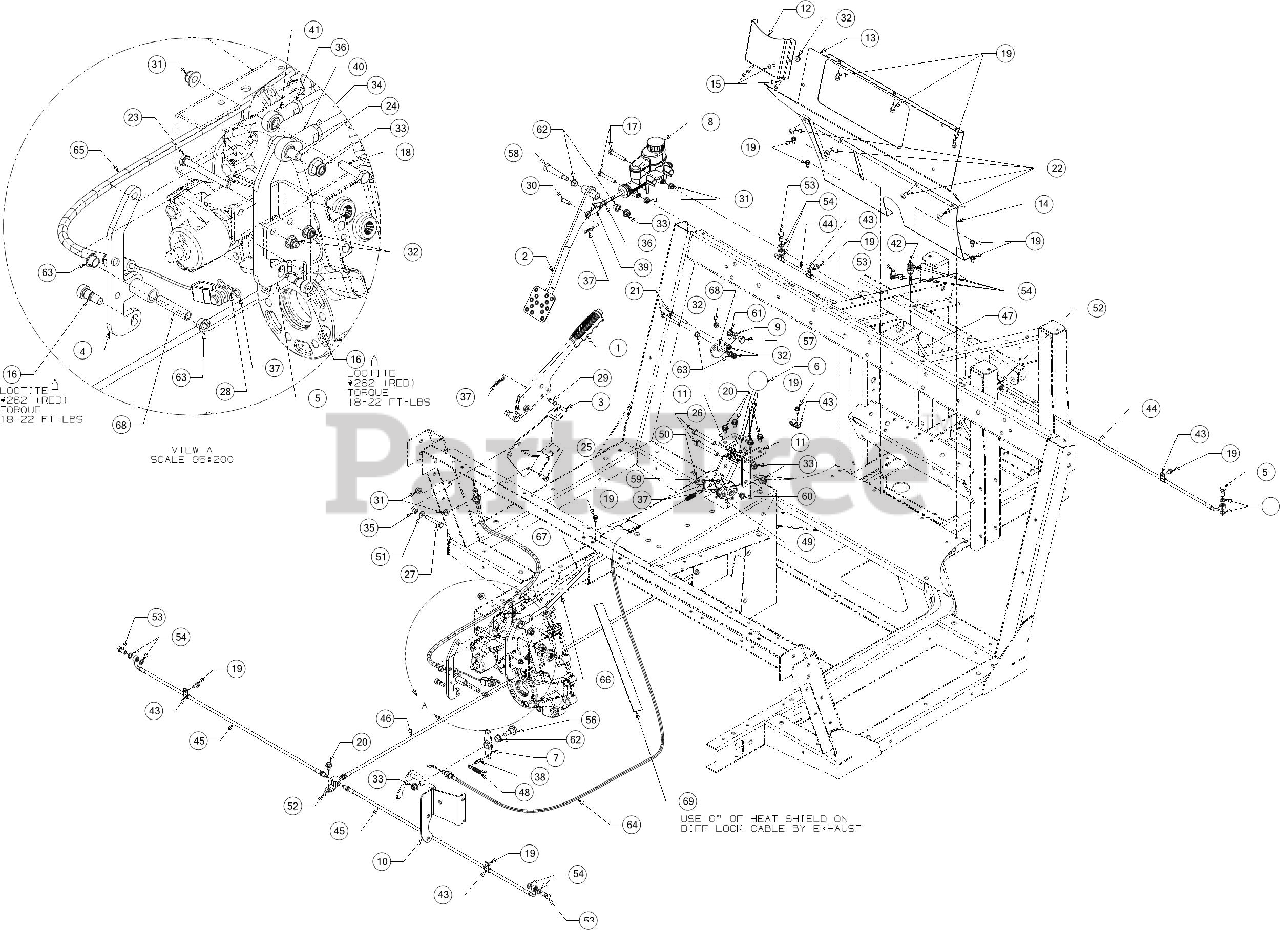

Volunteer WT 747 EFI (37AM486M010) - Cub Cadet 4x4 Utility Vehicle (2016) Control Parts Diagram

4x4 Utility Vehicle

Control Parts Diagram

  • Title

1

Cub Cadet 603-04089

LEVER ASSEMBLY:BRAKE

$283.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 607-04193B-0637

BRAKE PEDAL ASSEMBLY

$110.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 607-04208-0637

PARK BRAKE BRACKET ASSEMBLY

$80.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 907-04210

HI-LO SHIFT LEVER ASSEMBLY

$82.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 750-04499

DIFF LOCK PIVOT TUBE

Note: (Not Shown)

$14.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 607-04211

FNR HI-LO SHIFT LEVER ASSEMBLY
(Superseded to 607E04211)

$81.99

$

In Stock, only 2 left!

0

5

Cub Cadet 750-04499

DIFF LOCK PIVOT TUBE

Note: (Not Shown)

$14.99

$

Usually ships in 3-6 days

0

6

Cub Cadet 907-04212A

HURST SHIFT ASSEMBLY

$524.99

$

Usually ships in 3-6 days

0

7

Cub Cadet 607-04216A

DIFF LOCK LEVER ASSEMBLY

$62.99

$

Usually ships in 3-6 days

0

8

Cub Cadet 661-04042

MASTER CYLINDER ASSEMBLY

$183.99

$

Usually ships in 3-6 days

0

9

Cub Cadet 707-04642

OVER CENTER PAWL PLATE

$14.99

$

Usually ships in 3-6 days

0

10

Cub Cadet 707-04693A-0637

DIFFERENTIAL CABLE BRACKET

$49.99

$

Usually ships in 3-6 days

0

11

Cub Cadet 707-04805-0637

CONSOLE SHAFT MOUNTING

$23.99

$

Usually ships in 3-6 days

0

12

Cub Cadet 707-06384-0637

EPS COVER

$42.99

$

Usually ships in 3-6 days

0

13

Cub Cadet 707-06385-0637

EPS UPPER DASH PANEL

$69.99

$

Usually ships in 3-6 days

0

14

Cub Cadet 707-06386-0637

EPS LOWER DASH PANEL

$61.99

$

Usually ships in 3-6 days

0

15

Cub Cadet 710-0924

SCREW 1/4-20 x 0.750

$4.49

$

In Stock, Qty 20+

0

16

Cub Cadet 710-04027

SHOULDER SCREW .372 x .375 x 5/16-18

$15.99

$

In Stock, only 1 left!

0

17

Cub Cadet 710-04039

SCREW-HEAD PATCH GR5 5/16-18X2"

$4.99

$

In Stock, only 4 left!

0

18

Cub Cadet 710-0528

SCREW 5/16-18 x 1.25 GR5

$4.49

$

In Stock, Qty 20+

0

19

Cub Cadet 710-0599

SCREW 1/4-20 X.500

$4.49

$

In Stock, Qty 20+

0

20

Cub Cadet 710-0607

SCREW 5/16-18 x .500

$6.99

$

In Stock, Qty 12

0

21

Cub Cadet 710-0641

SCREW 1/4-20 x 2.25 GR5

$4.49

$

In Stock, only 2 left!

0

22

Cub Cadet 710-1017

SCREW 1/4-14 x .625

$8.49

$

In Stock, Qty 9

0

23

Cub Cadet 710-1122

SCREW 1/4-20 x 2.50 GR5

$7.49

$

Usually ships in 3-6 days

0

24

Cub Cadet 710-3005

SCREW 3/8-16 x 1.25 GR5

$3.99

$

In Stock, Qty 12

0

25

Cub Cadet 710-3008

SCREW 5/16-18 x .75 GR5

$4.49

$

In Stock, Qty 20+

0

26

Cub Cadet 710-3022

SCREW 3/8-16 x 2.75 GR5

$4.99

$

In Stock, Qty 7

0

27

Cub Cadet 710-3103

SCREW 5/16-18 x 2.0 GR5

$4.49

$

In Stock, only 4 left!

0

28

Cub Cadet 711-04585

CLEVIS PIN .25 x 1.00

$6.99

$

In Stock, only 1 left!

0

29

Cub Cadet 711-05063

CLEVIS PIN 5/16 x 3/4

$3.99

$

In Stock, only 4 left!

0

30

Cub Cadet 711-0653

CLEVIS PIN .312 x 1.0

$3.99

$

Usually ships in 3-6 days

0

31

Cub Cadet 712-04063

FLANGE LOCK NUT 5/16-18

$3.99

$

In Stock, Qty 20+

0

32

Cub Cadet 712-04064

FLANGE LOCK NUT

$3.99

$

In Stock, Qty 20+

0

33

Cub Cadet 712-04065

NUT

$3.99

$

In Stock, Qty 20+

0

34

Cub Cadet 712-0711

HEX JAM NUT 3/8X24

$4.49

$

In Stock, Qty 20+

0

35

Cub Cadet 912-3010

HEX NUT
(Superseded to 712-3010)

$4.49

$

In Stock, Qty 20+

0

36

Cub Cadet 712-3025

HEX JAM NUT 5/16-24 GR 5

$7.49

$

Usually ships in 3-6 days

0

37

Cub Cadet 714-04040

BOW TIE COTTER PIN 1/4-5/16

$1.49

$

In Stock, Qty 20+

0

38

Cub Cadet 715-04011

ROLL PIN

$5.49

$

Usually ships in 3-6 days

0

39

Cub Cadet 719-3018

ADJUSTABLE ROD END

$43.99

$

Usually ships in 3-6 days

0

40

Cub Cadet 723-04038

ROD END 3/8 ID

$60.99

$

Usually ships in 3-6 days

0

41

Cub Cadet 723-04039

ROD END 5/16 ID

$57.99

$

Usually ships in 3-6 days

0

42

Cub Cadet 725-04507

BRAKE SWITCH

$137.99

$

Usually ships in 3-6 days

0

43

Cub Cadet 726-04056

HOSE CLAMP

$4.99

$

Usually ships in 3-6 days

0

44

Cub Cadet 927-04224

FRONT BRAKE HOSE

$88.99

$

Usually ships in 3-6 days

0

45

Cub Cadet 927-04228

REAR BRAKE HOSE

$84.99

$

In Stock, only 1 left!

0

46

Cub Cadet 927-04230

BRAKE MASTER CYLINDER HOSE (REAR)

$150.99

$

Usually ships in 3-6 days

0

47

Cub Cadet 927-04233

BRAKE MASTER CYLINDER HOSE (FRONT)

$62.99

$

Usually ships in 3-6 days

0

48

Cub Cadet 732-0418

SPRING

$10.99

$

In Stock, only 1 left!

0

49

Cub Cadet 936-0140

FLAT WASHER
(Superseded to 736-0140)

$

$

Not available

50

Cub Cadet 936-0264

FLAT WASHER

$6.99

$

In Stock, only 3 left!

0

51

Cub Cadet 936-0275

FLAT WASHER
(Superseded to 736-0275)

$

$

Not available

52

Cub Cadet 737-04128

TEE FITTING

$57.99

$

Usually ships in 3-6 days

0

53

Cub Cadet 737-04129

BANJO FITTING

$28.99

$

Usually ships in 3-6 days

0

54

Cub Cadet 737-04130

BANJO FITTING

$8.99

$

Usually ships in 3-6 days

0

56

Cub Cadet 738-04409

SHOULDER BOLT .50X.434 EXP

$3.49

$

Usually ships in 3-6 days

0

57

Cub Cadet 938-0974

SHOULDER SCREW .375X.380:1/4-20
(Superseded to 738-0974)

$

$

Not available

58

Cub Cadet 738-1011A

SHOULDER SCREW .50 x 2.23 3/8-16

$8.49

$

In Stock, Qty 11

0

59

Cub Cadet 741-04198

FLANGE BEARING

$9.49

$

Usually ships in 3-6 days

0

60

Cub Cadet 741-04199

FLANGE BEARING

$11.99

$

Usually ships in 3-6 days

0

61

Cub Cadet 941-0475

BUSHING .380 ID

$4.49

$

In Stock, Qty 20+

0

62

Cub Cadet 741-0491

NYLINER BEARING

$5.49

$

In Stock, only 4 left!

0

63

Cub Cadet 941-3073

FLANGE BEARING

$5.49

$

In Stock, Qty 20+

0

64

Cub Cadet 746-04248

DIFF LOCK CONTROL CABLE
(Superseded to 746P04248)

$56.99

$

Usually ships in 3-6 days

0

65

Cub Cadet 946-04254

PARK CONTROL CABLE

$71.99

$

In Stock, only 1 left!

0

66

Cub Cadet 747-04528A

F-N-R SHIFT LINK

$52.99

$

In Stock, only 1 left!

0

67

Cub Cadet 747-04529A

HI/LO SHIFT LINK

$44.99

$

Usually ships in 3-6 days

0

68

Cub Cadet 750-04500

DIFF LOCK PIVOT SPACER

$37.99

$

Usually ships in 3-6 days

0

69

Cub Cadet 751-11232-12

HEAT SHIELD
(Superseded to 751-11232A-12)

$60.99

$

Usually ships in 3-6 days
