Volunteer 747 EFI Yellow (37AM486D010) - Cub Cadet 4x4 Utility Vehicle (2017) Frame Parts Diagram

4x4 Utility Vehicle

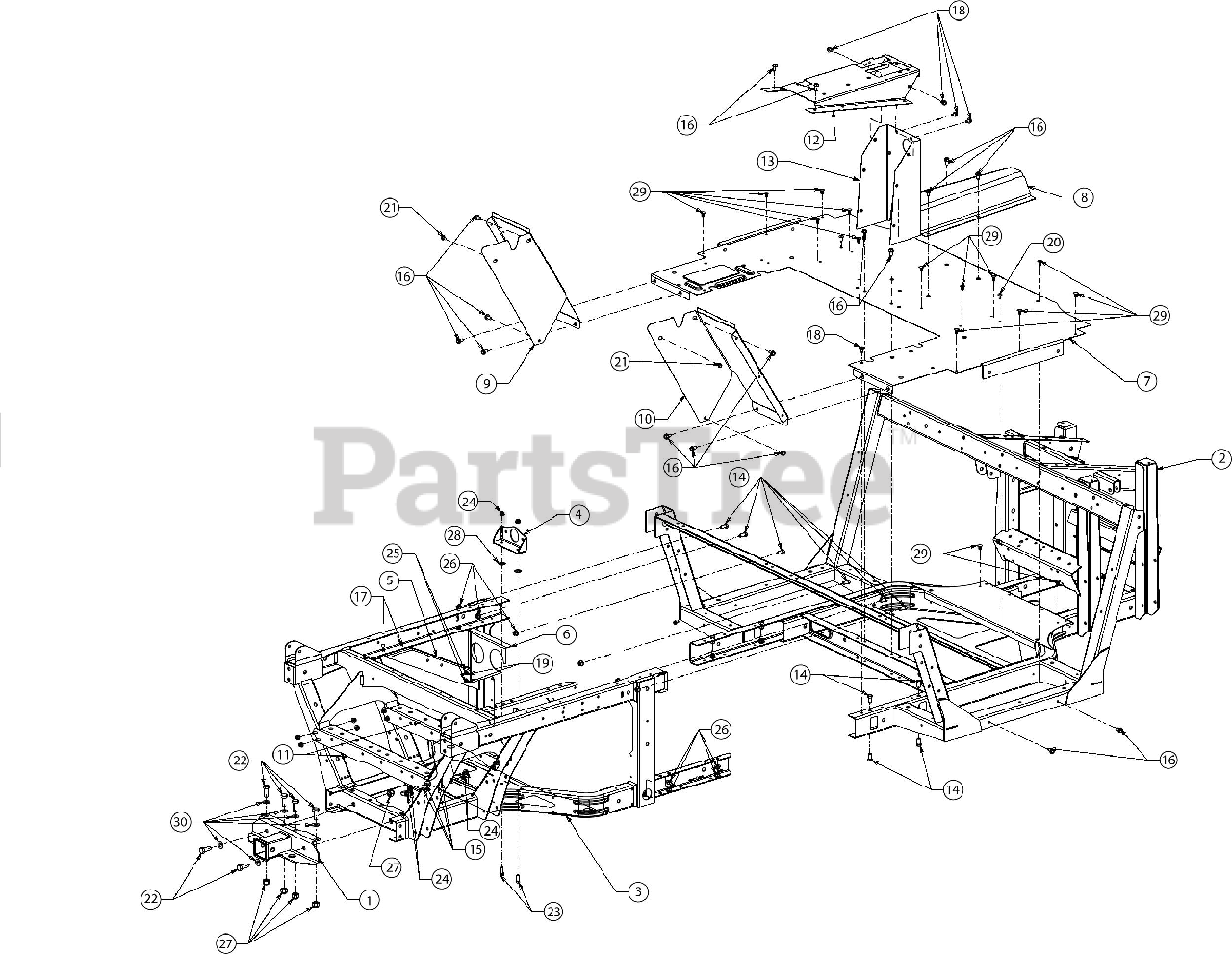

Frame Parts Diagram

  • Title
1

Cub Cadet 607-04142A-0637

UV HITCH ASSEMBLY

$225.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 607-04182F-0637

UV FRONT FRAME ASSEMBLY

$1067.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 607-04184E-0637

FRAME ASSEMBLY-RR UV 4X

$

$

Not available

4

Cub Cadet 607-04330-0637

ISO TRAN MOUNT ASSEMBLY

$56.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 607-04331A-0637

AIR FILTER MOUNT BRACKET

$62.99

$

Usually ships in 3-6 days

0

6

Cub Cadet 607-04333A-0637

HOSE SUPPORT BRACKET ASSEMBLY

$52.99

$

Usually ships in 3-6 days

0

$269.99

$

Usually ships in 3-6 days

0

8

Cub Cadet 707-04684A-0637

FRONT DRIVE SHAFT COVER

$109.99

$

Usually ships in 3-6 days

0

9

Cub Cadet 707-04728D-0637

SHIELD BRACKET (LH)

$67.99

$

Usually ships in 3-6 days

0

10

Cub Cadet 707-04729D-0637

SHIELD BRACKET (RH)

$67.99

$

Usually ships in 3-6 days

0

11

Cub Cadet 707-04770C-0637

REAR CHAIN SUPPORT

$100.99

$

Usually ships in 3-6 days

0

12

Cub Cadet 707-05326-0637

CONSOLE TOP PLATE

$63.99

$

Usually ships in 3-6 days

0

13

Cub Cadet 707-05327-0637

CONSOLE FRONT PLATE

$34.99

$

Usually ships in 3-6 days

0

14

Cub Cadet 710-0216

HEX SCREW 3/8-16 x .75

$4.49

$

In Stock, Qty 15

0

15

Cub Cadet 710-04043

SCREW 5/16-18

$4.49

$

Usually ships in 3-6 days

0

16

Cub Cadet 710-04484

SCREW 5/16-18 x .750

$3.99

$

In Stock, Qty 20+

0

17

Cub Cadet 710-0599

SCREW 1/4-20 X.500

$4.49

$

In Stock, Qty 20+

0

18

Cub Cadet 710-0607

SCREW 5/16-18 x .500

$6.99

$

In Stock, Qty 11

0

19

Cub Cadet 710-0751

SCREW 1/4-20 x .620 GR5

$3.99

$

In Stock, Qty 20+

0

20

Cub Cadet 710-1017

SCREW 1/4-14 x .625

$8.49

$

In Stock, Qty 9

0

21

Cub Cadet 710-1652

SCREW 1/4-20X.625

$4.49

$

In Stock, Qty 20+

0

22

Cub Cadet 710-3032

SCREW 1/2-13 x 1.25 GR5

$6.49

$

Usually ships in 3-6 days

0

23

Cub Cadet 710-3038

SCREW 5/16-18 x .875 GR5

$4.99

$

In Stock, only 3 left!

0

24

Cub Cadet 712-04063

FLANGE LOCK NUT 5/16-18

$3.99

$

In Stock, Qty 20+

0

25

Cub Cadet 712-04064

FLANGE LOCK NUT

$3.99

$

In Stock, Qty 20+

0

$3.99

$

In Stock, Qty 20+

0

27

Cub Cadet 712-3083

HEX LOCK NUT NYLON

$4.49

$

In Stock, Qty 20+

0

28

Cub Cadet 926-04012

PUSH ON NUT
(Superseded to 726-04012)

$

$

Not available

29

Cub Cadet 726-0465

RETAINER PAN CLIP

$4.99

$

In Stock, Qty 16

0

30

Cub Cadet 936-0272

FLAT WASHER .510 x 1.00 x .060
(Superseded to 736-0272)

$4.99

$

In Stock, Qty 20+

0
