Volunteer 747 EFI Red (37BM48GD010) - Cub Cadet 4x4 Utility Vehicle (2019) Rear Drive Kit Parts Diagram

4x4 Utility Vehicle

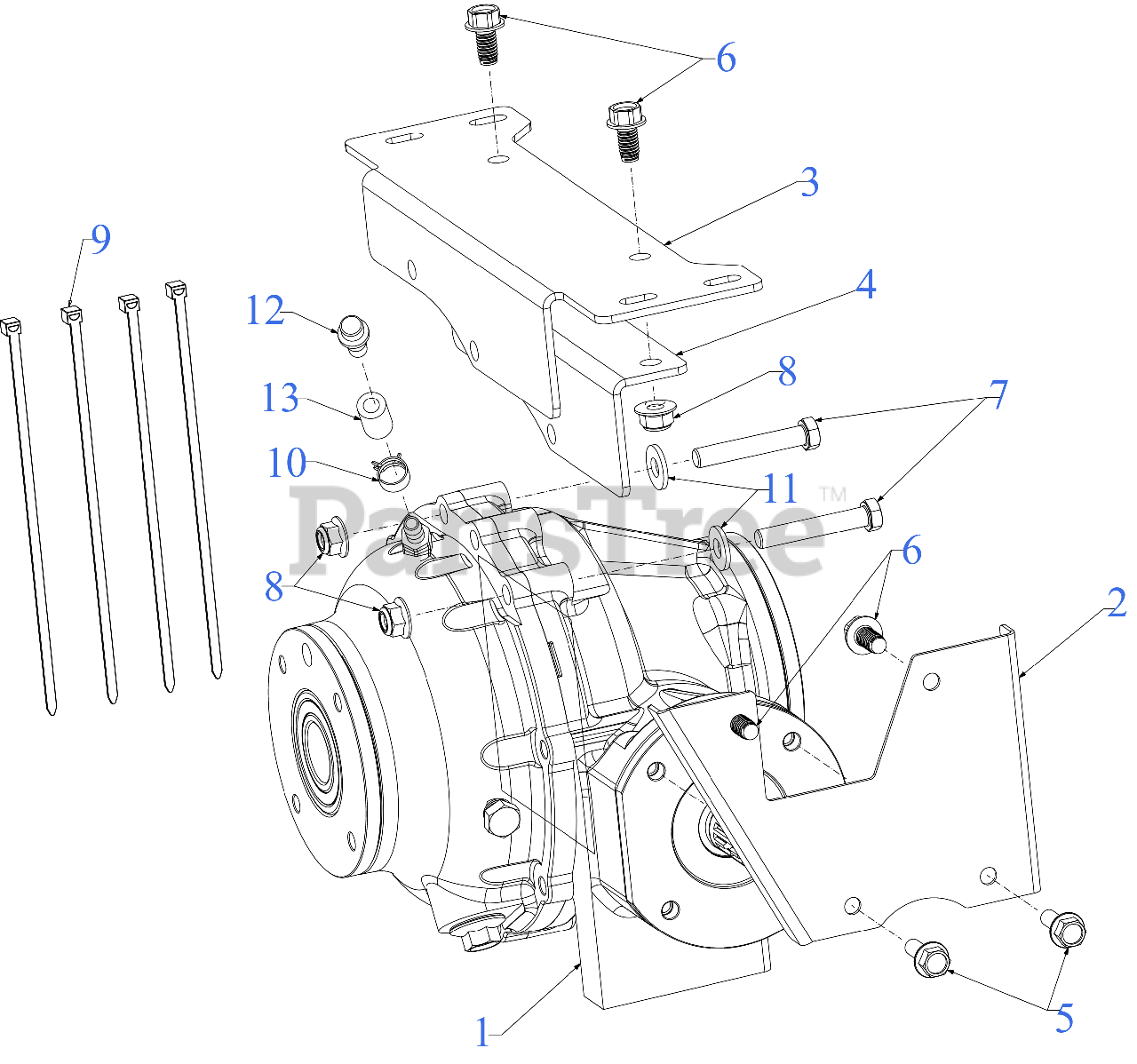

Rear Drive Kit Parts Diagram

  • Title
1

DIFFERENTIAL ASSEMBLY

$

$

Not available

2

Cub Cadet 707-05018B-0637

DIFFERENTIAL BRACKET

$54.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 707-05791-0637

REAR DIFFERENTIAL MOUNT

$55.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 707-06000-0637

REAR DIFFERENTIAL BRACKET

$41.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 710-04639

SCREW M8 x 1.25 x 25MM GR8.8

$7.49

$

Usually ships in 3-6 days

0

6

Cub Cadet 710-0623

SCREW 3/8-16 x 3/4

$4.49

$

In Stock, Qty 20+

0

7

Cub Cadet 710-3011

SCREW 3/8-16 x 2.25 GR5

$6.99

$

In Stock, Qty 20+

0

$3.99

$

In Stock, Qty 20+

0

9

Cub Cadet 725-0157

7" CABLE TIE

$3.99

$

In Stock, Qty 20+

0

10

Cub Cadet 726-05003

HOSE CLAMP

$3.99

$

Usually ships in 3-6 days

0

11

Cub Cadet 736-0262

FLAT WASHER .385X.870X.090

$3.99

$

In Stock, Qty 20+

0

$12.99

$

Usually ships in 3-6 days

0

13

Cub Cadet 751-10350-22

FUEL HOSE LOW PERMEATION 22"

$19.99

$

Usually ships in 3-6 days

0
