Volunteer 747 EFI Red (37AM48GD010) - Cub Cadet 4x4 Utility Vehicle (2016) Bed Parts Diagram

4x4 Utility Vehicle

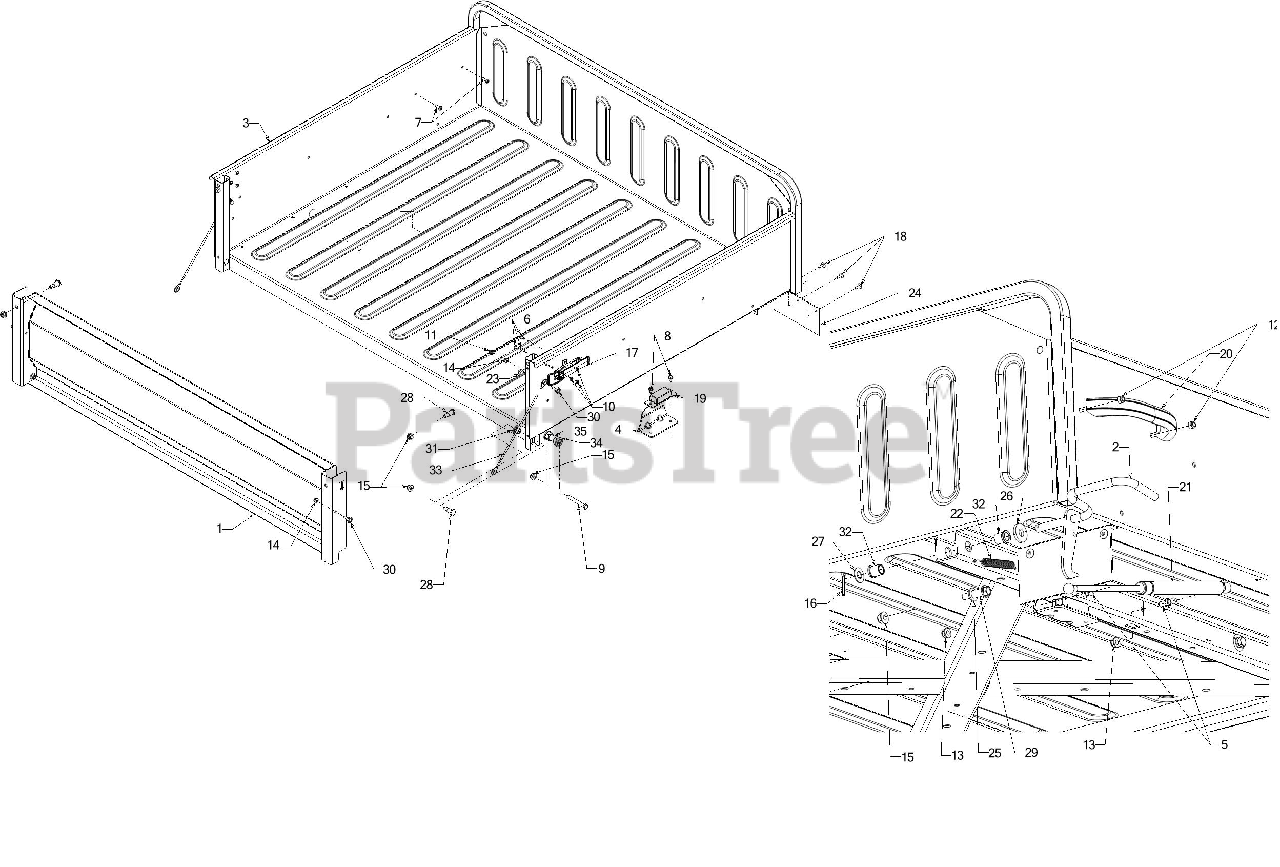

Bed Parts Diagram

  • Title

1

Cub Cadet 607-04159B-0637

UV TAILGATE ASSEMBLY

$378.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 607-04180

LEVER ASSEMBLY

$70.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 607-04191C-0637

BED UV BOX ASSEMBLY

$778.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 707-05298

MUD FLAP MOUNT BRACKET

Note: (Not Shown)

$

$

Not available

4

Cub Cadet 707-04786-0637

BED GUIDE BRACKET

$45.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 710-04166

BALL STUD 5/16-18

$10.99

$

Usually ships in 3-6 days

0

6

Cub Cadet 710-0473A

SCREW #10-24 x .500

$4.49

$

Usually ships in 3-6 days

0

7

Cub Cadet 710-0924

SCREW 1/4-20X.75

$4.49

$

In Stock, Qty 20+

0

8

Cub Cadet 710-1652

SCREW 1/4-20X.625

$4.49

$

In Stock, Qty 20+

0

9

Cub Cadet 710-3022

SCREW 3/8-16 x 2.75 GR5

$4.99

$

In Stock, Qty 7

0

10

Cub Cadet 712-0102A

LOCK NUT 10-24

$3.99

$

Usually ships in 3-6 days

0

11

Cub Cadet 712-0264A

ACORN NUT

$3.99

$

Usually ships in 3-6 days

0

12

Cub Cadet 712-0324

NYLON LOCK NUT

$3.99

$

In Stock, Qty 16

0

13

Cub Cadet 712-04063

FLANGE LOCK NUT 5/16-18

$3.99

$

In Stock, Qty 20+

0

14

Cub Cadet 712-04064

FLANGE LOCK NUT

$3.99

$

In Stock, Qty 20+

0

15

Cub Cadet 712-04065

NUT

$3.99

$

In Stock, Qty 20+

0

16

Cub Cadet 714-0162

COTTER PIN-5/32 DIA

$4.99

$

In Stock, Qty 20+

0

17

Cub Cadet 726-04058A

LATCH

$80.99

$

Usually ships in 3-6 days

0

18

Cub Cadet 928-04004

POP RIVET

$7.99

$

In Stock, only 1 left!

0

19

Cub Cadet 731-04016

SUSPENSION BUMPER

$45.99

$

Usually ships in 3-6 days

0

20

Cub Cadet 731-06155

GRAB HANDLE

$31.99

$

Usually ships in 3-6 days

0

21

Cub Cadet 932-04109B

SPRING

$87.99

$

In Stock, only 4 left!

0

22

Cub Cadet 732-0428B

EXTENSION SPRING

$11.99

$

In Stock, only 1 left!

0

23

Cub Cadet 735-0271A

BUMPER, .62 DIA x .3

$8.99

$

In Stock, only 1 left!

0

24

Cub Cadet 735-04181

MUD FLAP

$13.99

$

Usually ships in 3-6 days

0

25

Cub Cadet 736-0262

FLAT WASHER .385X.870X.090

$3.99

$

In Stock, Qty 20+

0

26

Cub Cadet 736-04019

FLAT WASHER .531 x 1.25 x .181

$7.99

$

In Stock, only 1 left!

0

27

Cub Cadet 936-0272

FLAT WASHER .510X1.000X.060
(Superseded to 736-0272)

$4.99

$

In Stock, Qty 20+

0

28

Cub Cadet 738-0430

SHOULDER SCREW .500 DIA x .685

$11.99

$

In Stock, only 2 left!

0

29

Cub Cadet 738-0966A

SHOULDER SCREW .50X.925

$4.99

$

In Stock, Qty 19

0

30

Cub Cadet 738-1023A

SHOULDER SCREW .37

$4.49

$

In Stock, Qty 5

0

31

Cub Cadet 741-0324A

HEX FLANGE BEARING .506 x .590

$7.99

$

In Stock, Qty 5

0

32

Cub Cadet 941-0673

FLANGE BEARING

$6.49

$

In Stock, only 2 left!

0

33

Cub Cadet 746-04245

LANYARD CABLE

$20.99

$

In Stock, Qty 6

0

34

Cub Cadet 948-0227A

FLANGE BEARING

$8.49

$

In Stock, Qty 11

0

35

Cub Cadet 750-04634

SPACER:.390 ID x .625OD x 2.03

$43.99

$

Usually ships in 3-6 days

0
