Volunteer 747 EFI Green (37BM485D010) - Cub Cadet 4x4 Utility Vehicle (2019) Body Panel Parts Diagram

4x4 Utility Vehicle

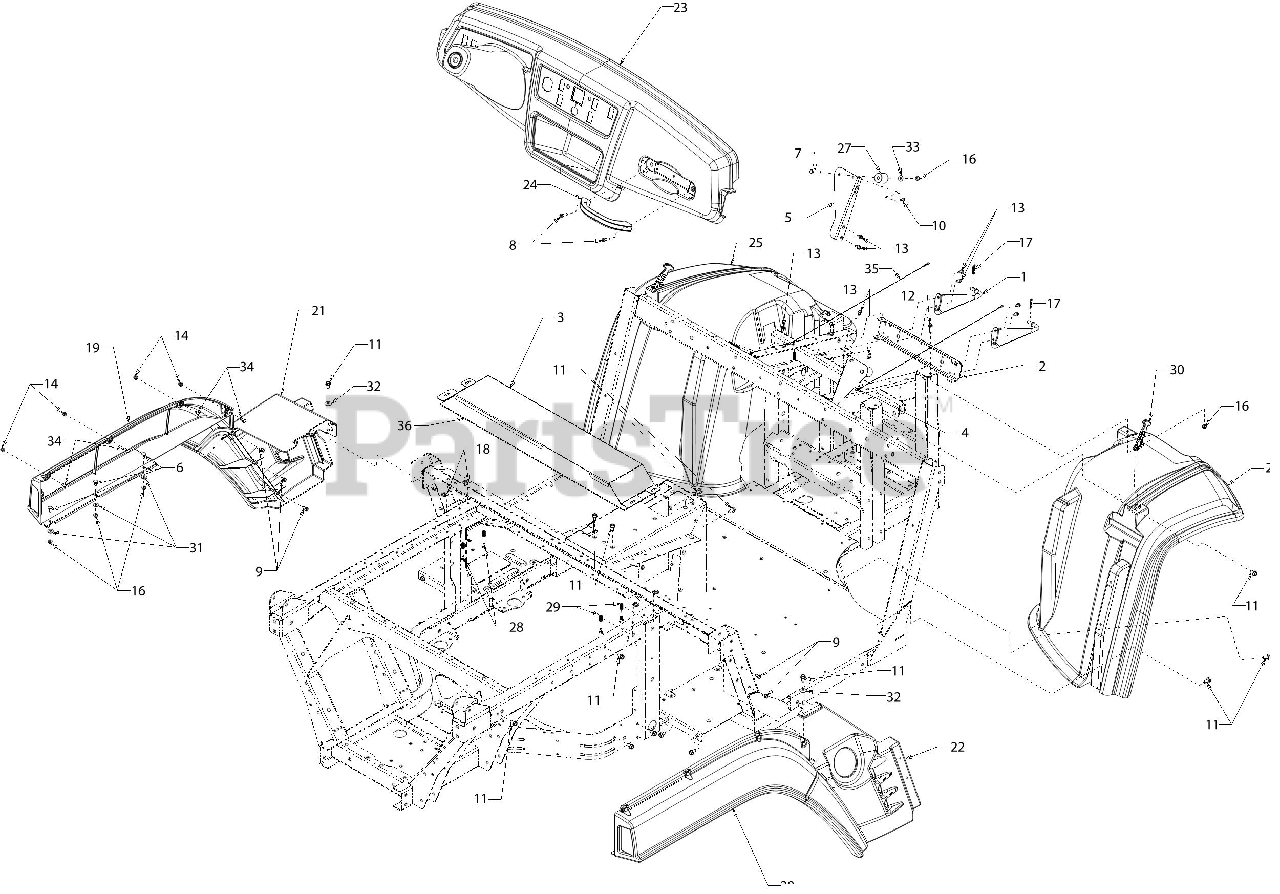

Body Panel Parts Diagram

  • Title
1

Cub Cadet 607-04224-0637

HOOD MOUNT ROD ASSEMBLY

$83.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 707-04484-0637

FRAME CROSS CHANNEL

$76.99

$

Usually ships in 3-6 days

0

$106.99

$

In Stock, only 1 left!

0

4

Cub Cadet 707-04779A-0637

HOOD & DASH BRACKET (RH)

$47.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 707-04782A-0637

HOOD & DASH BRACKET (LH)

$40.99

$

Usually ships in 3-6 days

0

6

Cub Cadet 710-0134

CARRIAGE BOLT 1/4-20 x .62

$4.49

$

In Stock, Qty 20+

0

7

Cub Cadet 710-0136

HEX SCREW 1/4-20 x 1.75

$3.99

$

In Stock, Qty 20+

0

8

Cub Cadet 710-0166A

MACHINE SCREW 1/4-20:1

$7.49

$

In Stock, only 1 left!

0

9

Cub Cadet 710-04187A

HEX SCREW 1/4-15 x .50

$6.99

$

In Stock, Qty 20+

0

10

Cub Cadet 710-04261

HEX SCREW #12-16 x .50

$6.49

$

In Stock, only 3 left!

0

11

Cub Cadet 710-04484

SCREW 5/16-18 x .750

$3.99

$

In Stock, Qty 20+

0

12

Cub Cadet 710-05105

SCREW 1/4-20 x 1.0

$3.99

$

Usually ships in 3-6 days

0

13

Cub Cadet 710-0599

SCREW 1/4-20 X.500

$4.49

$

In Stock, Qty 20+

0

14

$3.99

$

Usually ships in 3-6 days

0

16

Cub Cadet 712-04064

FLANGE LOCK NUT

$3.99

$

In Stock, Qty 20+

0

17

Cub Cadet 914-0101

INTERNAL COTTER PIN
(Superseded to 714-0101)

$

$

Not available

18

Cub Cadet 726-3056

1/4 TURN PANEL HANDLE

$7.49

$

Usually ships in 3-6 days

0

19

Cub Cadet 931-05280C

REAR FENDER

$448.99

$

Usually ships in 3-6 days

0

20

Cub Cadet 931-05281C

REAR FENDER

$473.99

$

Usually ships in 3-6 days

0

21

Cub Cadet 931-05282B

LOWER FENDER (LH)

$100.99

$

Usually ships in 3-6 days

0

22

Cub Cadet 931-05283B

LOWER FENDER (RH)

$100.99

$

Usually ships in 3-6 days

0

$204.99

$

Usually ships in 3-6 days

0

24

Cub Cadet 731-06155

GRAB HANDLE

$31.99

$

Usually ships in 3-6 days

0

25

Cub Cadet 931-06710A

UV FENDER (LH)

$193.99

$

Usually ships in 3-6 days

0

26

Cub Cadet 931-06711A

UV FENDER (RH)

$193.99

$

Usually ships in 3-6 days

0

27

Cub Cadet 731-3232

HOOD LATCH ROLLER

$8.99

$

In Stock, only 1 left!

0

28

Cub Cadet 732-0936

SPRING CLIP
(Superseded to 726-05561)

$

$

Not available

29

Cub Cadet 732-0937

COMPRESSION SPRING

$8.49

$

In Stock, only 2 left!

0

30

Cub Cadet 735-04145

HOOD STRAP

$10.99

$

Usually ships in 3-6 days

0

31

Cub Cadet 736-0173

FLAT WASHER .28 ID x .74 OD x .063

$4.49

$

In Stock, Qty 20+

0

32

Cub Cadet 736-0242

BELL WASHER .337 X.867 x .057

$4.49

$

In Stock, Qty 20+

0

33

Cub Cadet 736-0342

FLAT WASHER .283 ID x .749 x .030

$7.49

$

Usually ships in 3-6 days

0

34

Cub Cadet 738-04505A

SHOULDER SCREW 1/4-20

$6.49

$

Usually ships in 3-6 days

0

35

Cub Cadet 746-04328

HOOD CABLE

$23.99

$

Usually ships in 3-6 days

0

36

Cub Cadet 751-10435

INSULATION

$80.99

$

Usually ships in 3-6 days

0

Cub Cadet 712-0324

NYLON LOCK NUT

Note: (Not Shown)

$3.99

$

In Stock, Qty 16

0
