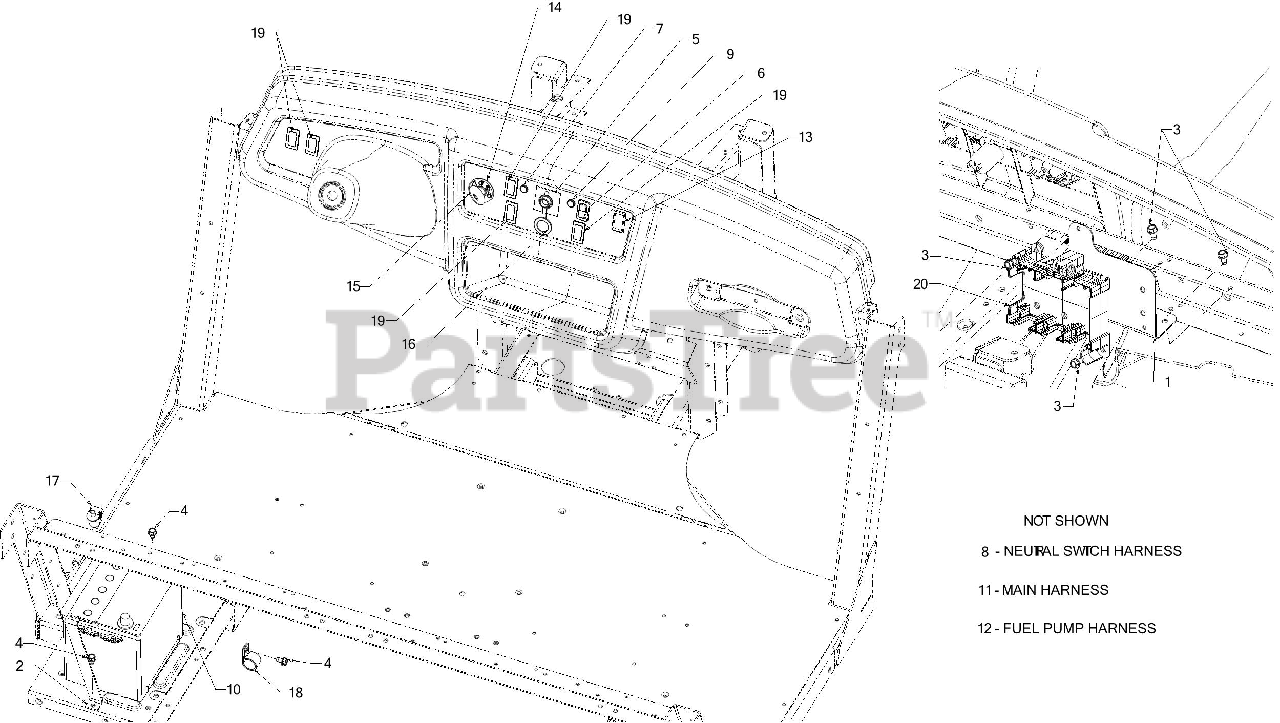

Volunteer 747 EFI Green (37AM485D010) - Cub Cadet 4x4 Utility Vehicle (2016) Electrical Parts Diagram

4x4 Utility Vehicle

Electrical Parts Diagram

  • Title

1

Cub Cadet 707-04811-0637

FUSE MOUNT BRACKET

$29.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 707-04870B-0637

BATTERY MOUNT BRACKET

$54.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 710-0599

SCREW 1/4-20 X.500

$4.49

$

In Stock, Qty 20+

0

4

Cub Cadet 710-0607

SCREW 5/16-18 x .500

$6.99

$

In Stock, Qty 9

0

5

Cub Cadet 925-04022B

HOUR METER

$146.99

$

In Stock, Qty 5

0

6

Cub Cadet 725-04352

4X4 ROCKER SWITCH

$59.99

$

In Stock, only 2 left!

0

7

Cub Cadet 925-04530

GREEN INDICATOR LAMP

$38.99

$

Usually ships in 3-6 days

0

8

Cub Cadet 725-04625

HARNESS

Note: (Not Shown in Artwork)

$48.99

$

Usually ships in 3-6 days

0

9

Cub Cadet 725-04660

INDICATOR LIGHT-RED

$31.99

$

Usually ships in 3-6 days

0

10

Cub Cadet 925-04514

BATTERY-540 CCA

$314.99

$

Usually ships in 3-6 days

0

11

Cub Cadet 925-04891A

MAIN HARNESS

Note: (Not Shown in Artwork)

$485.99

$

Usually ships in 3-6 days

0

12

Cub Cadet 925-04892

HARNESS

Note: (Not Shown in Artwork)

$43.99

$

Usually ships in 3-6 days

0

13

Cub Cadet 725-06160

SEAT BELT

$107.99

$

Usually ships in 3-6 days

0

14

Cub Cadet 925-1741

IGNITION SWITCH

$45.99

$

Usually ships in 3-6 days

0

15

Cub Cadet 925-1745A

IGNITION KEY

$17.99

$

In Stock, Qty 20+

0

16

Cub Cadet 725-2003

POWER RECEPTICAL

$42.99

$

Usually ships in 3-6 days

0

17

Cub Cadet 925-3166

SNAP MOUNT SWITCH

$16.99

$

In Stock, Qty 20+

0

18

Cub Cadet 726-0475

HOSE CLAMP 1.0"

$13.99

$

Usually ships in 3-6 days

0

19

Cub Cadet 731-04010

PANEL SWITCH PLUG

$20.99

$

Usually ships in 3-6 days

0

20

Cub Cadet 731-05490

3 WAY RELAY HOLDER

$73.99

$

Usually ships in 3-6 days

0
