Volunteer 487 EFI Camo (37AM487D010) - Cub Cadet 4x4 Utility Vehicle (SN: 1I014H & Above) (2015) Kohler LH775-3024 Head, Valve & Breather Parts Diagram

4x4 Utility Vehicle

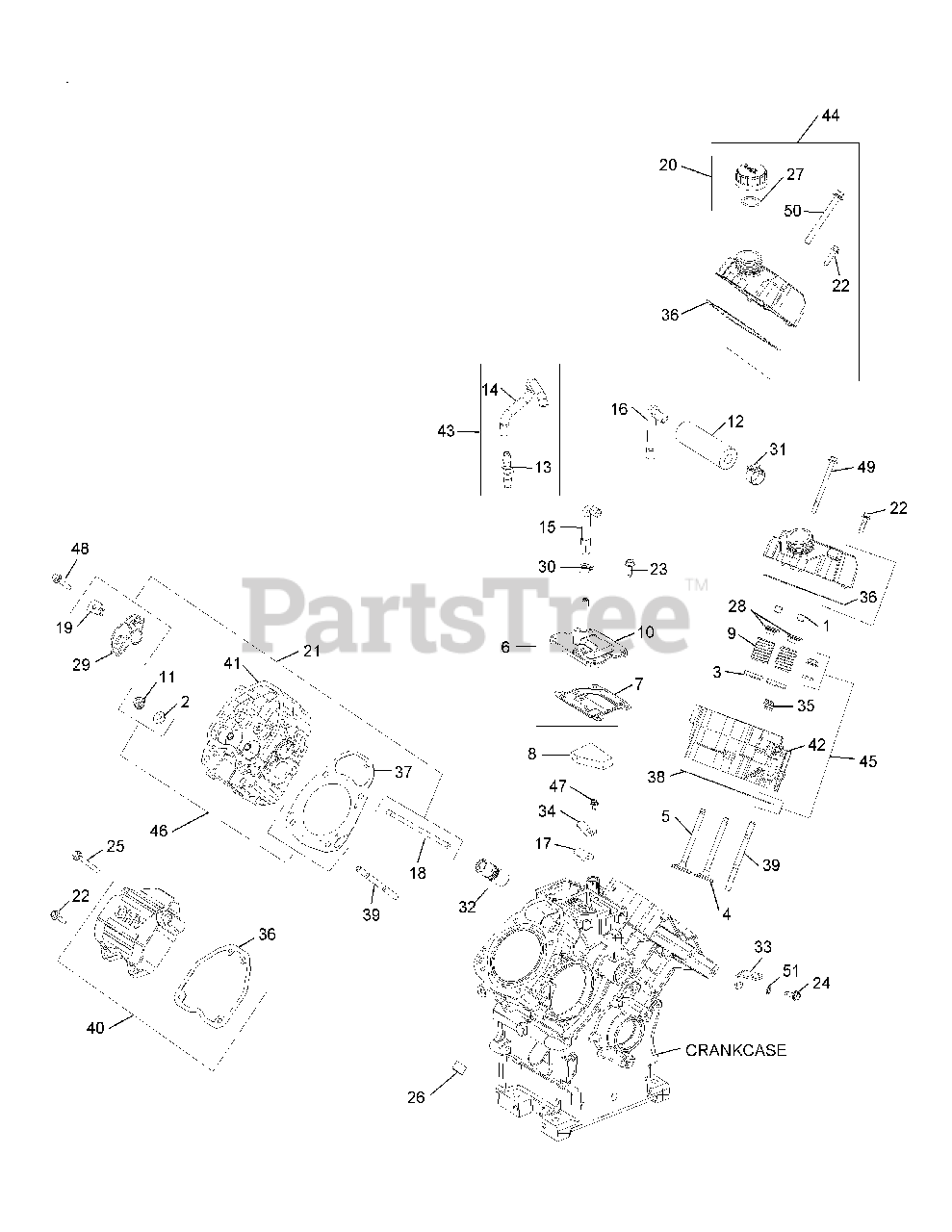

Kohler LH775-3024 Head, Valve & Breather Parts Diagram

  • Title

1

Cub Cadet KH-12-755-03

Retainer Kit

$5.99

$

In Stock, only 2 left!

0

2

Cub Cadet KH-220534

Washer, Flat 5/16"

$

$

Not available

3

Cub Cadet KH-235011-S

Retainer, Spring

$6.49

$

In Stock, only 2 left!

0

4

Cub Cadet KH-24-016-01

Valve, Exhaust (Std)
(Superseded to KH-32-016-01-S)

$15.99

$

In Stock, only 4 left!

0

4

Cub Cadet KH-24-016-02

Valve, Exhaust (.25)

$

$

Not available

5

Cub Cadet KH-24-017-01

Valve, Intake (Std)

$

$

Not available

5

Cub Cadet KH-24-017-02

Valve, Intake (.25)

$

$

Not available

6

Cub Cadet KH-24-033-01

Kit, Breather Assy

$

$

Not available

7

Cub Cadet KH-24-041-67-S

Gasket, Breather

$13.99

$

In Stock, Qty 9

0

8

Cub Cadet KH-24-050-11-S

Filter, Breather

$2.49

$

Usually ships in 2-5 days

0

9

Cub Cadet KH-24-089-02

Spring, Valve

$

$

Not available

10

Cub Cadet KH-24-033-01

Kit, Breather Assy

$

$

Not available

11

Cub Cadet KH-24-100-10-S

Nut, Flg M8x1.25

$4.49

$

Usually ships in 2-5 days

0

13

Cub Cadet KH-24-294-20-S

Fitting, Breather

$14.99

$

Usually ships in 2-5 days

0

14

Cub Cadet KH-24-326-89-S

Hose, Breather

$9.99

$

In Stock, Qty 6

0

17

Cub Cadet KH-24-402-03

Reed, Breather
(Superseded to KH-24-402-06-S)

$3.49

$

Usually ships in 3-6 days

0

18

Cub Cadet KH-24-411-05

Rod, Push

$

$

Not available

19

Cub Cadet KH-24-599-02-S

Pivot, Rocker Arm

$2.49

$

In Stock, Qty 8

0

20

Cub Cadet KH-24-755-46

Kit, Oil Fill Cap (Yellow)

$

$

Not available

21

Cub Cadet KH-24-755-66

Kit, Valve Train

$

$

Not available

22

Cub Cadet KH-25-086-124-S

Screw, Flg M6x1.0x25

$2.49

$

In Stock, only 3 left!

0

23

Cub Cadet KH-25-086-396-S

Screw, Thread Forming

$2.49

$

In Stock, only 1 left!

0

26

Cub Cadet KH-25-139-62-S

Plug, Pipe Ctsk 3/8"

$3.49

$

In Stock, only 2 left!

0

27

Cub Cadet KH-25-153-02-S

O-Ring, Dipstick

$2.49

$

In Stock, only 1 left!

0

28

Cub Cadet KH-25-173-28-S

Cap, Valve Spring

$8.49

$

In Stock, Qty 5

0

29

Cub Cadet KH-25-186-01

Arm, Rocker

$

$

Not available

30

Cub Cadet KH-25-237-37-S

Clamp, Band Spring Hose

$2.49

$

In Stock, Qty 11

0

31

Cub Cadet KH-25-237-31-S

Clamp, Hose

$4.99

$

In Stock, only 2 left!

0

32

Cub Cadet KH-25-351-11-S

Hydraulic Valve Lifter

$23.99

$

In Stock, only 4 left!

0

33

Cub Cadet KH-25-445-02-S

Strap, Lifting

$2.99

$

In Stock, only 1 left!

0

34

Cub Cadet KH-66-018-04-S

Retainer, Reed

$4.99

$

In Stock, Qty 6

0

35

Cub Cadet KH-25-032-14-S

Seal, Valve Stem

$11.99

$

In Stock, only 2 left!

0

36

Cub Cadet KH-66-041-09-S

Gasket, Valve Cover

$6.49

$

In Stock, Qty 7

0

37

Cub Cadet KH-66-841-01-S

Kit, Cyl Head Gasket (#1 Side)

$71.99

$

In Stock, only 1 left!

0

38

Cub Cadet KH-66-841-04-S

Kit, Cyl Head Gasket (#2 Side)

$71.99

$

In Stock, only 2 left!

0

39

Cub Cadet KH-66-072-03-S

Stud

$9.49

$

Usually ships in 2-5 days

0

40

Cub Cadet KH-66-096-11-S

Kit, Rocker Cover

$36.99

$

In Stock, only 1 left!

0

41

Cub Cadet KH-66-318-27-S

Kit, Cyl Head (#1 Side)

$

$

Not available

42

Cub Cadet KH-66-318-30-S

Kit, Cyl Head (#2 Side)

$361.99

$

Usually ships in 2-5 days

0

43

Cub Cadet KH-66-326-34-S

Hose Assy, Breather

$21.99

$

Usually ships in 2-5 days

0

44

Cub Cadet KH-66-755-10-S

Kit, Lh Oil Fill Valve Cover

$34.99

$

In Stock, only 1 left!

0

45

Cub Cadet KH-66-841-01-S

Kit, Cyl Head Gasket (#2 Side)

$71.99

$

In Stock, only 1 left!

0

46

Cub Cadet KH-66-841-04-S

Kit, Cyl Head Gasket (#2 Side)

$71.99

$

In Stock, only 2 left!

0

47

Cub Cadet KH-M-0545010

Screw, Flg Thd Frm M5x.8X10

$

$

Not available

48

Cub Cadet KH-M-640034-S

Screw, Flg M6x1.0x34

$2.49

$

In Stock, Qty 18

0

Cub Cadet KH-25-139-60-S

Plug, Ctsk Pipe 1/8"

$3.49

$

In Stock, only 2 left!

0
