Volunteer 487 EFI Camo (37AM487D010) - Cub Cadet 4x4 Utility Vehicle (SN: 1I014H & Above) (2015) Kohler LH775-3024 Engine Controls Parts Diagram

4x4 Utility Vehicle

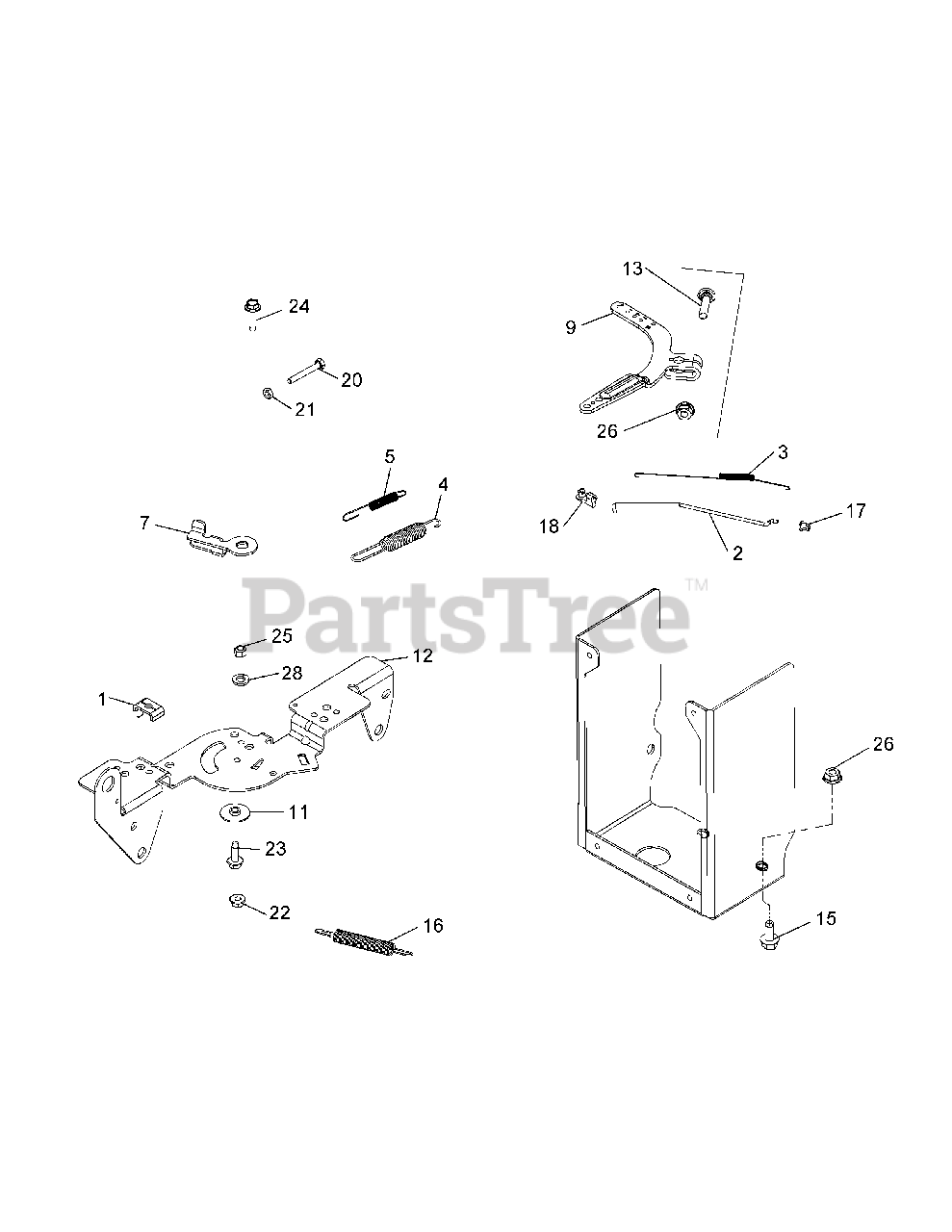

Kohler LH775-3024 Engine Controls Parts Diagram

  • Title

1

Cub Cadet KH-12-237-01

Clamp, Cable
(Superseded to KH-25-237-53-S)

$3.99

$

Usually ships in 3-6 days

0

2

Cub Cadet KH-24-079-01

Linkage, Throttle

$

$

Not available

3

Cub Cadet KH-24-089-01

Spring, Linkage

$

$

Not available

4

Cub Cadet KH-66-089-08-S

Spring, Governor

$8.49

$

Usually ships in 2-5 days

0

5

Cub Cadet KH-24-089-51-S

Spring, Throttle Limiter

$5.49

$

In Stock, only 1 left!

0

7

Cub Cadet KH-24-090-60-S

Lever, Throttle

$15.99

$

Usually ships in 2-5 days

0

9

Cub Cadet KH-24-090-69-S

Lever, Governor

$8.99

$

In Stock, only 1 left!

0

11

Cub Cadet KH-24-112-27-S

Spacer, Control Assy

$3.99

$

In Stock, only 1 left!

0

12

Cub Cadet KH-24-126-176-S

Bracket, Control

$

$

Not available

13

Cub Cadet KH-24-211-03-S

Bolt, Rd Hd Sq Neck M6x1.0x25

$2.49

$

In Stock, Qty 15

0

15

Cub Cadet KH-25-086-397-S

Screw, Thread Forming

$3.99

$

In Stock, Qty 13

0

16

Cub Cadet KH-25-089-14-S

Return Spring

$5.49

$

Usually ships in 2-5 days

0

17

Cub Cadet KH-25-158-08

Bushing, Linkage Retaining

$5.99

$

Usually ships in 2-5 days

0

18

Cub Cadet KH-25-158-11

Bushing, Throttle Linkage

$

$

Not available

20

Cub Cadet KH-M-401030

Screw, Cap M4x.7X30

$

$

Not available

21

Cub Cadet KH-M-446030-S

Nut, M4x0.7

$2.49

$

In Stock, only 4 left!

0

22

Cub Cadet KH-M-541050-S

Nut, Flg M5x.8

$2.99

$

In Stock, Qty 10

0

23

Cub Cadet KH-25-086-398-S

Screw, Thread Forming

$3.99

$

Usually ships in 2-5 days

0

24

Cub Cadet KH-25-086-473-S

Screw, Thread Forming

$2.49

$

In Stock, Qty 20+

0

25

Cub Cadet KH-M-547050-S

Nut, Lock M5x.8

$2.49

$

In Stock, only 1 left!

0

26

Cub Cadet KH-M-641060-S

Nut, Flg M6x1.0

$4.49

$

In Stock, Qty 8

0

28

Cub Cadet KH-X-20-1

Washer, Spring Lock 1/4"

$

$

Not available
