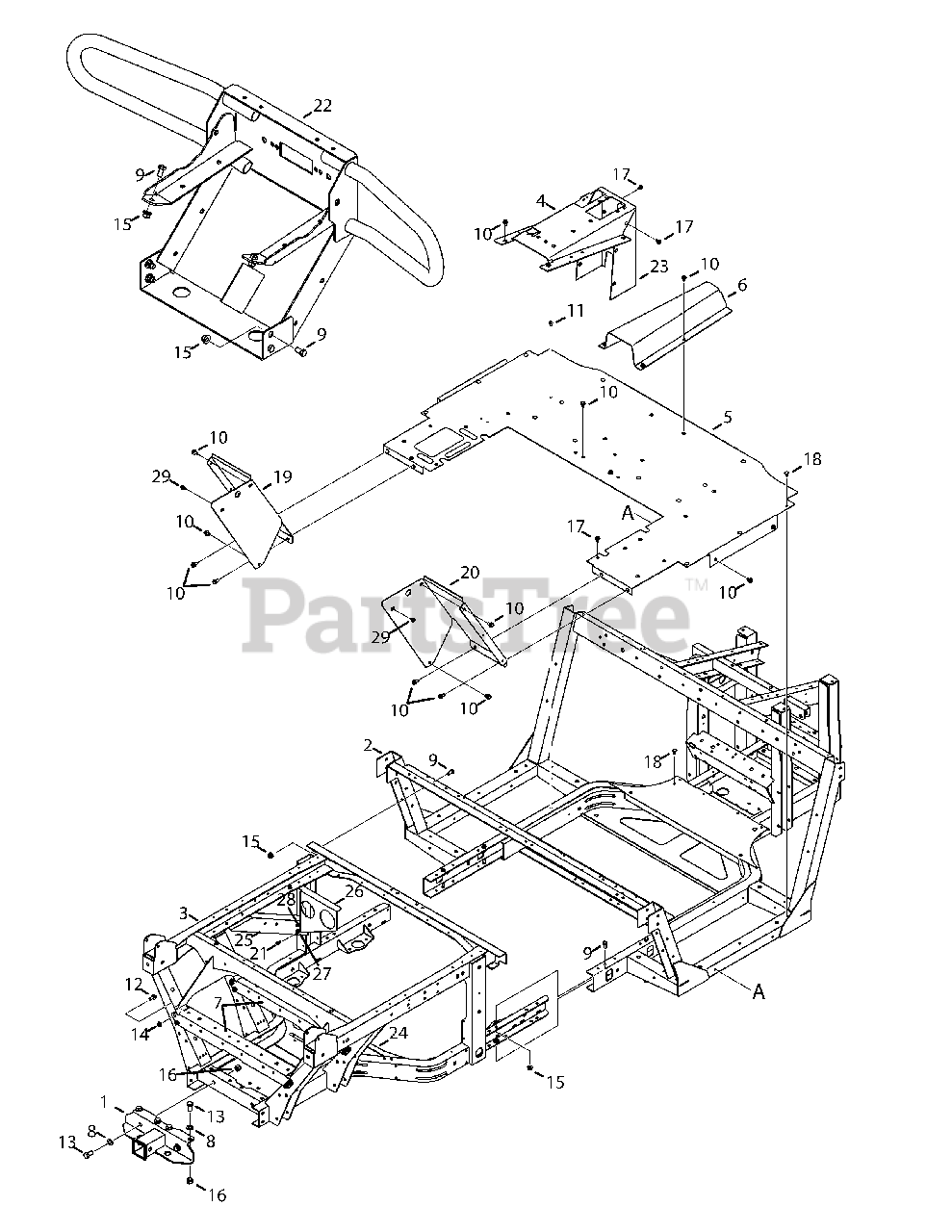

Volunteer 485 EFI Green (37AM485D010) - Cub Cadet 4x4 Utility Vehicle (SN: 1I014H & Above) (2015) Frame and Bumper Parts Diagram

4x4 Utility Vehicle

Frame and Bumper Parts Diagram

  • Title

1

Cub Cadet 607-04142A-0637

Hitch Assembly, receiver Rr

$225.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 607-04182F-0637

Frame Assembly, front, uv

$1067.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 607-04184E-0637

Frame Assembly, rear, uv

$

$

Not available

4

Cub Cadet 707-05326-0637

Plate, console, 4x4, top

$63.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 707-04563E-0637

Plate, floor

$269.99

$

Usually ships in 3-6 days

0

6

Cub Cadet 707-04684A-0637

Cover, front, 4x4

$109.99

$

Usually ships in 3-6 days

0

7

Cub Cadet 707-04770C-0637

Channel, support, rear

$100.99

$

Usually ships in 3-6 days

0

8

Cub Cadet 936-0272

Washer, Flat, .510 x 1.00 x .060
(Superseded to 736-0272)

$4.99

$

In Stock, Qty 20+

0

9

Cub Cadet 710-0216

Screw, 3/8-16 x .75, gr5, std

$4.49

$

In Stock, Qty 14

0

10

Cub Cadet 710-04484

Screw, tt, 5/16-18 x 0.750

$3.99

$

In Stock, Qty 20+

0

11

Cub Cadet 710-1017

Screw, ab, 1/4-14, 0.625

$8.49

$

In Stock, Qty 9

0

12

Cub Cadet 710-04043

Screw, Hxflg, 5/16-18 (4x4)

$4.49

$

Usually ships in 3-6 days

0

13

Cub Cadet 710-3032

Screw, 1/2-13, 1.25, gr5, std

$6.49

$

Usually ships in 3-6 days

0

14

Cub Cadet 712-04063

Nut, Flange Lock, 5/16-18, Nylon

$3.99

$

In Stock, Qty 20+

0

15

Cub Cadet 712-04065

Nut, Flange Lock, 3/8-16, Nylon

$3.99

$

In Stock, Qty 20+

0

16

Cub Cadet 712-3083

Nut, Hex Lock, 1/2-13, Nylon

$4.49

$

In Stock, Qty 20+

0

17

Cub Cadet 710-0607

Screw, tt, 5/16-18 x 0.500

$6.99

$

In Stock, Qty 9

0

18

Cub Cadet 726-0465

Clip, Panel, ret,

$4.99

$

In Stock, Qty 16

0

19

Cub Cadet 707-04728D-0637

Bracket, Lh, Shield

$67.99

$

Usually ships in 3-6 days

0

20

Cub Cadet 707-04729D-0637

Bracket, Rh, Shield

$67.99

$

Usually ships in 3-6 days

0

21

Cub Cadet 710-0599

Screw, tt, 1/4-20 x .500

$4.49

$

In Stock, Qty 20+

0

22

Cub Cadet 607-04131D-0637

Bumper Assembly, front

$525.99

$

Usually ships in 3-6 days

0

23

Cub Cadet 707-05327-0637

Plate, console, 4x4, front

$34.99

$

Usually ships in 3-6 days

0

24

Cub Cadet 607-04330-0637

Bracket Assembly, ISO, Trans/ Eng

$56.99

$

Usually ships in 3-6 days

0

25

Cub Cadet 607-04331A-0637

Bracket Assembly, Air Filter Mnt

$62.99

$

Usually ships in 3-6 days

0

26

Cub Cadet 607-04333A-0637

Bracket Assembly, Supt, Hose

$52.99

$

Usually ships in 3-6 days

0

27

Cub Cadet 710-0751

Hex Head Screw, 1/4-20 x .620

$3.99

$

In Stock, Qty 20+

0

28

Cub Cadet 712-04064

Nut, Flange Lock, 1/4-20

$3.99

$

In Stock, Qty 20+

0

29

Cub Cadet 710-1652

Screw, tt, 1/4-20x.625, hxindwsh

$4.49

$

In Stock, Qty 20+

0
