Volunteer 47G FIS (37BB47GH010) - Cub Cadet 4x2 Utility Vehicle (SN: 1H013H - 1H294H) Transmission Parts Diagram

4x2 Utility Vehicle

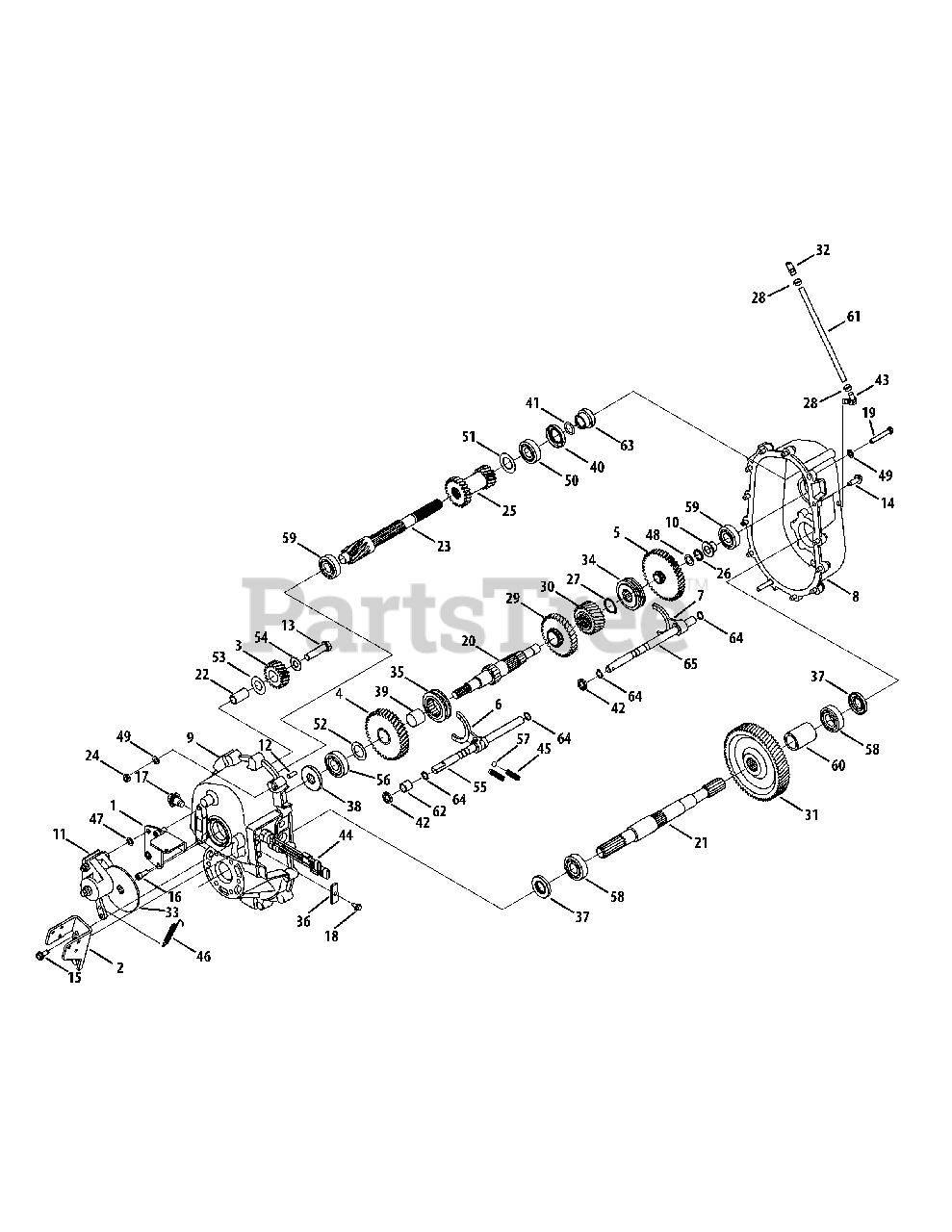

Transmission Parts Diagram

  • Title
1

Cub Cadet 607-04321

Bracket Assembly, Painted

$15.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 607-04322

Bracket Assembly, Shift, Painted

$44.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 911-04072A

Gear Assembly, Rev Idler

$96.99

$

In Stock, only 2 left!

0

4

Cub Cadet 717-04237

Gear, Rev, 39T

$160.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 617-04035

Gear Assembly, Low Speed

Note: Equipped on 4x4 Only

$207.99

$

Usually ships in 3-6 days

0

6

Cub Cadet 718-04176

Yoke, Actr, Uv

$83.99

$

In Stock, only 3 left!

0

7

Cub Cadet 718-04079B

Yoke Actr, Lo

Note: Equipped on 4x4 Only

$85.99

$

Usually ships in 3-6 days

0

8

Cub Cadet 919-04790B

Housing, Lh, Uv

$198.99

$

Usually ships in 3-6 days

0

9

Cub Cadet 719-04332A

Housing, Rh, Uv

$336.99

$

Usually ships in 3-6 days

0

10

Cub Cadet 750-04681

Spacer, Flg, .630 x .787 x .662

Note: Equipped on 4x4 Only

$32.99

$

Usually ships in 3-6 days

0

11

Cub Cadet 661-04019

Brake Assembly, Transfer Case

$141.99

$

Usually ships in 3-6 days

0

12

Cub Cadet 915-3045

Dowel, Bush, .400 x .484 x .750

$9.99

$

Usually ships in 3-6 days

0

13

Cub Cadet 710-04644

Hex Head Screw, 1/2-13, 2.00

$3.49

$

Usually ships in 3-6 days

0

14

Cub Cadet 710-0602

Screw, Tt, 5/16-18, 1.000, Hxindwsh

$4.49

$

In Stock, Qty 20+

0

15

Cub Cadet 710-1260A

Screw, Tt, 5/16-18, 0.750, Hxindwsh

$3.99

$

In Stock, Qty 20+

0

16

Cub Cadet 710-1314A

Screw, Soc Hd, 5/16-18, .750

$4.49

$

In Stock, Qty 20+

0

17

Cub Cadet 737-04310

Screw, Plug, M14 x 1.5 x .36

$11.99

$

Usually ships in 3-6 days

0

18

Cub Cadet 710-1652

Screw, Tt, 1/4-20 x .625, Hxindwsh

$4.49

$

In Stock, Qty 20+

0

19

Cub Cadet 710-3103

Hex Head Screw, 5/16-18, 2.00

$4.49

$

In Stock, Qty 20+

0

20

Cub Cadet 911-04445A

Shaft, Mid, Transfer Case

Note: Equipped on 4x4 Only

$180.99

$

Usually ships in 3-6 days

0

20

Cub Cadet 911-04664

Shaft, Mid, Transfer Case

Note: Equipped on 4x2 Only

$159.99

$

In Stock, only 1 left!

0

21

Cub Cadet 911-04446

Shaft, Output, Transfer Case

$155.99

$

In Stock, only 1 left!

0

22

Cub Cadet 911-04447

Shaft, Rev Idler

$12.99

$

Usually ships in 3-6 days

0

23

Cub Cadet 911-05754

Shaft, Input, Transfer Case

$215.99

$

In Stock, only 2 left!

0

24

Cub Cadet 912-0158

Nut, Hex Lock, 5/16-18, Ctrlk

$3.49

$

In Stock, Qty 18

0

25

Cub Cadet 917-05017

Gear, Pinion, Input Forward

$254.99

$

In Stock, only 1 left!

0

26

Cub Cadet 916-0131

External Snap Ring .625 Dia.

Note: Equipped on 4x4 Only

$7.49

$

In Stock, only 1 left!

0

27

Cub Cadet 716-04059

Ring, Retainer, 1.125 Dia.

$7.49

$

Usually ships in 3-6 days

0

28

Cub Cadet 726-0205

Hoase Clamp, .490 Dia.

$3.99

$

In Stock, Qty 18

0

29

Cub Cadet 917-04236

Gear, High, 33t

$114.99

$

Usually ships in 3-6 days

0

30

Cub Cadet 917-04332

Gear, Final Pinion, 22t

$66.99

$

Usually ships in 3-6 days

0

31

Cub Cadet 917-04333

Gear, Final, 73t

$246.99

$

Usually ships in 3-6 days

0

32

Cub Cadet 737-04073

Vent, 3/8 Dia.

$35.99

$

Usually ships in 3-6 days

0

33

Cub Cadet 717-1177A

Disc, Brk, Uv

$34.99

$

In Stock, only 2 left!

0

34

Cub Cadet 718-04163

Collar, Lo

Note: Equipped on 4x4 Only

$59.99

$

Usually ships in 3-6 days

0

35

Cub Cadet 718-04226A

Collar, Hi-rev, 4x4

$131.99

$

Usually ships in 3-6 days

0

36

Cub Cadet 718-04240

Plate, Detent Spring

$6.99

$

Usually ships in 3-6 days

0

37

Cub Cadet 721-04146

Seal, Oil, 25x46x7

$13.99

$

In Stock, only 4 left!

0

38

Cub Cadet 721-04161

Seal, Oil, 20x52x7

$13.99

$

In Stock, only 4 left!

0

39

Cub Cadet 741-3118

Bearing, 25mm x 28mm x 25mm

$26.99

$

Usually ships in 3-6 days

0

40

Cub Cadet 721-04493

Seal, Oil, 35 x 47 x 7

$7.99

$

Usually ships in 3-6 days

0

41

Cub Cadet 721-04494

O-ring, .924 Id x .103

$4.49

$

Usually ships in 3-6 days

0

42

Cub Cadet 721-0496

Seal, Oil, .563 x .875 x .188

$10.99

$

In Stock, Qty 5

0

43

Cub Cadet 737-04346

Fitting, 90 degree Elbow

$22.99

$

Usually ships in 3-6 days

0

44

Cub Cadet 725-04626

Switch, Saf, Neut (4x4 Only - Qty. (2).

Note: 4x2 Only - Qty. (1); Other replaced with Qty. (1) 737-04165*- Ftg, Plug)

$88.99

$

In Stock, only 1 left!

0

45

Cub Cadet 732-0424

Spring, 3/8 Od x 1 1/4 Lg

$8.49

$

Usually ships in 3-6 days

0

46

Cub Cadet 732-04248

Spring, Extn, .38 Od x 3.9 Lg

$10.99

$

In Stock, only 2 left!

0

47

Cub Cadet 936-0117

Washer, Flat, .385 x .620 x .033

$7.49

$

Usually ships in 3-6 days

0

48

Cub Cadet 936-0256

Washer, Flat, .635x.930x.033, Ht

Note: Equipped on 4x4 Only

$7.49

$

Usually ships in 3-6 days

0

49

Cub Cadet 936-0264

Washer, Flat, .330 x .630 x .0635

$6.99

$

In Stock, only 3 left!

0

50

Cub Cadet 741-05018

Bearing, Ball, 25 x 62 x 17, 6305

$20.99

$

Usually ships in 3-6 days

0

51

Cub Cadet 750-06019

Spacer, 1.275 x 1.00 x .085

$18.99

$

Usually ships in 3-6 days

0

52

Cub Cadet 736-0615

Washer, Flat, 1.007x1.542x.03, Ht

$8.99

$

In Stock, only 2 left!

0

53

Cub Cadet 736-3047

Washer, Thrust, .757 x 1.38 x .062

$10.99

$

Usually ships in 3-6 days

0

54

Cub Cadet 736-3084

Washer, Flat, .51 x 1.12 x .06, Ht

$4.99

$

In Stock, Qty 20+

0

55

Cub Cadet 911-05081

Shaft, Actr, Fwd, Rev

$56.99

$

Usually ships in 3-6 days

0

56

Cub Cadet 941-04044

Bearing, Ball, .79 Id x 2.05 Od x .6

$30.99

$

Usually ships in 3-6 days

0

57

Cub Cadet 741-04209

Ball, Detent, .375

$9.49

$

Usually ships in 3-6 days

0

58

Cub Cadet 941-3037

Bearing, Ball, 25x52x15, 6205

$41.99

$

In Stock, Qty 14

0

59

Cub Cadet 941-3057

Bearing, Ball, 20x47x14, 6204

$38.99

$

In Stock, Qty 10

0

60

Cub Cadet 750-04496

Spacer, Output Shaft

$37.99

$

Usually ships in 3-6 days

0

61

Cub Cadet 751-10350-22

Fuel Line, 5/16 Id

$19.99

$

Usually ships in 3-6 days

0

62

Cub Cadet 750-04705A

Spacer, .566 x .725 x .650

$8.99

$

Usually ships in 3-6 days

0

63

Cub Cadet 750-05685

Spacer, Input, Uv, Transfer Case

$77.99

$

Usually ships in 3-6 days

0

64

$3.99

$

In Stock, only 1 left!

0

65

Cub Cadet 911-05082

Shaft, Actr, Lo

$54.99

$

Usually ships in 3-6 days

0

Cub Cadet 921-04019

Plug, Oil

Note: Equipped on 4x2 Only

$8.99

$

Usually ships in 3-6 days

0
