Volunteer 477 FIS Camo (37BB477H010) - Cub Cadet 4x2 Utility Vehicle (SN: 1H013H - 1H294H) Kohler CH620-3034 Engine Controls Parts Diagram

4x2 Utility Vehicle

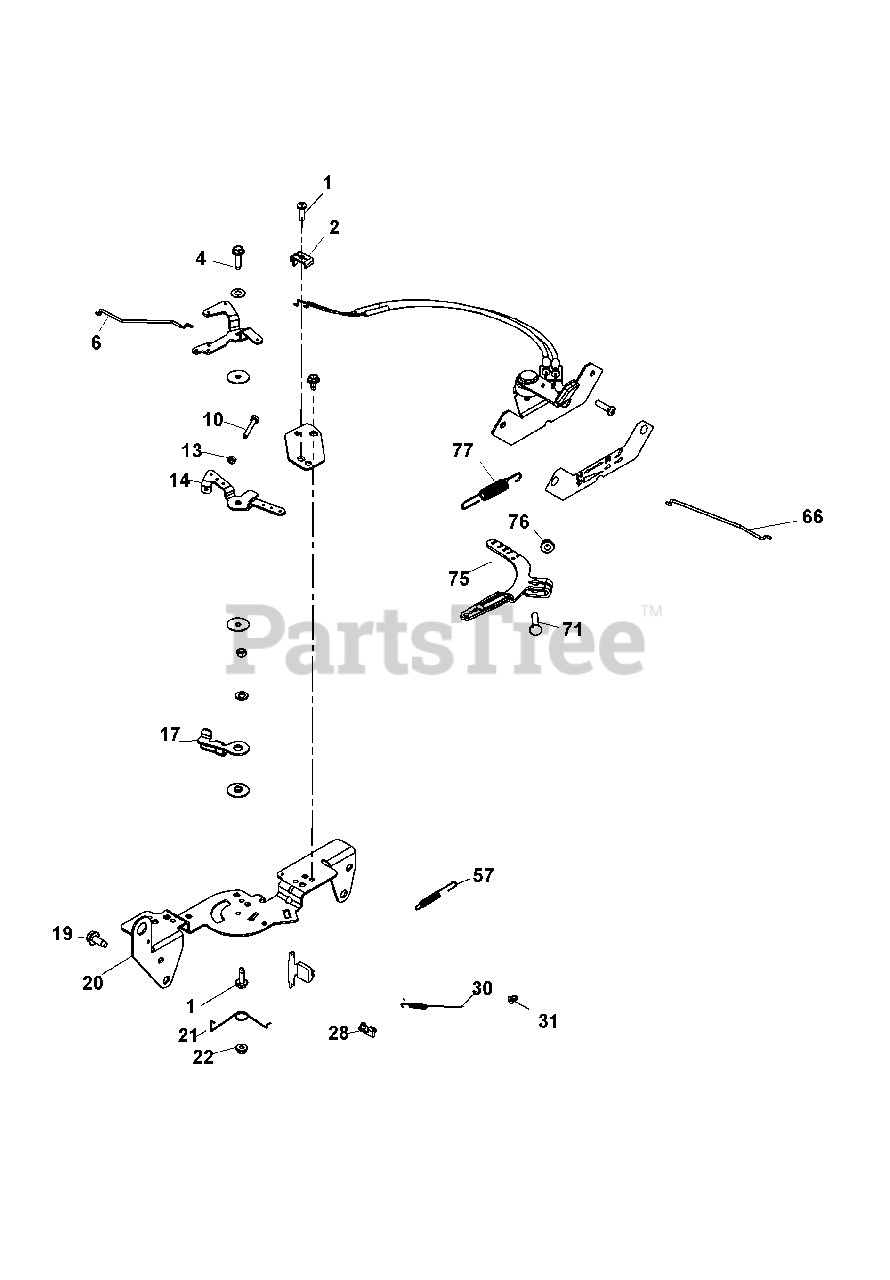

Kohler CH620-3034 Engine Controls Parts Diagram

  • Title
1

Cub Cadet KH-25-086-398-S

Screw, Thread Forming

$3.99

$

Usually ships in 2-5 days

0

2

Cub Cadet KH-12-237-01

Clamp, Cable
(Superseded to KH-25-237-53-S)

$3.99

$

Usually ships in 3-6 days

0

4

Cub Cadet KH-25-086-399-S

Screw, Thread Forming
(Superseded to KH-25-086-473-S)

$2.49

$

In Stock, Qty 20+

0

6

Cub Cadet KH-24-079-23-S

Linkage, Choke

$

$

Not available

10

Cub Cadet KH-M-401030

Screw, Cap M4X.7X30

$

$

Not available

13

$2.49

$

In Stock, only 4 left!

0

14

Cub Cadet KH-24-112-27-S

Spacer, Control Assy

$3.99

$

In Stock, only 1 left!

0

17

Cub Cadet KH-24-090-47-S

Lever, Throttle Actuator

$2.99

$

In Stock, Qty 11

0

19

Cub Cadet KH-25-086-397-S

Screw, Thread Forming

$3.99

$

In Stock, Qty 13

0

20

Cub Cadet KH-24-126-176-S

Bracket, Control

$

$

Not available

21

Cub Cadet KH-24-089-03

Spring, Choke Return

$

$

Not available

22

Cub Cadet KH-M-547050-S

Nut, Lock M5X.8

$2.49

$

In Stock, only 1 left!

0

28

Cub Cadet KH-25-158-11

Bushing, Throttle Linkage

$

$

Not available

30

Cub Cadet KH-24-089-01

Spring, Linkage

$

$

Not available

31

Cub Cadet KH-25-158-08

Bushing, Linkage Retaining

$5.99

$

Usually ships in 2-5 days

0

57

Cub Cadet KH-24-089-51-S

Spring, Throttle Limiter

$5.49

$

In Stock, only 1 left!

0

66

Cub Cadet KH-24-079-01

Linkage, Throttle

$

$

Not available

71

Cub Cadet KH-24-211-03-S

Bolt, Rd Hd Sq Neck M6X1.0X25

$2.49

$

In Stock, Qty 15

0

75

Cub Cadet KH-24-090-57-S

Lever, Governor
(Superseded to KH-24-090-69-S)

$8.99

$

In Stock, only 1 left!

0

76

Cub Cadet KH-M-641060-S

Nut, Flg M6X1.0

$4.49

$

In Stock, Qty 8

0

77

Cub Cadet KH-24-089-48-S

Spring, Governor (Purple)

$8.99

$

In Stock, Qty 9

0

Cub Cadet KH-24-090-59-S

Lever, Control

Note: (Not Shown)

$14.99

$

Usually ships in 2-5 days

0

Cub Cadet KH-24-090-60-S

Lever, Throttle

Note: (Not Shown)

$15.99

$

Usually ships in 2-5 days

0

Cub Cadet KH-24-112-27-S

Spacer, Control Assy

Note: (Not Shown)

$3.99

$

In Stock, only 1 left!

0

Cub Cadet KH-25-089-14-S

Return Spring

Note: (Not Shown)

$5.49

$

Usually ships in 2-5 days

0

Cub Cadet KH-24-090-69-S

Lever, Governor Assy

Note: (Not Shown)

$8.99

$

In Stock, only 1 left!

0
