Volunteer 477 FIS Camo (37BB477H010) - Cub Cadet 4x2 Utility Vehicle (SN: 1G202Z - 1G313Z) Front Axle 4 x 2 Parts Diagram

4x2 Utility Vehicle

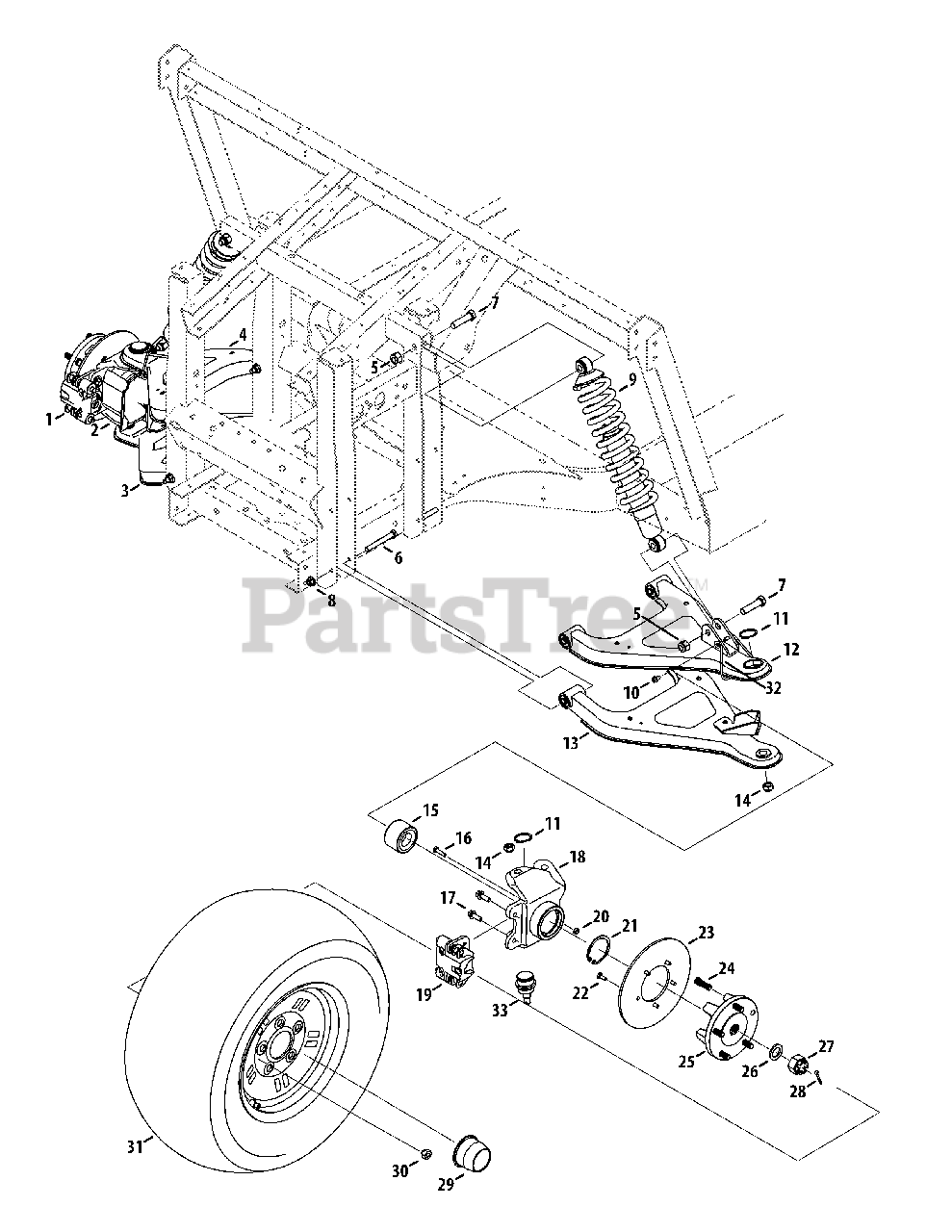

Front Axle 4 x 2 Parts Diagram

  • Title

1

Cub Cadet 961-04043

Brake, hyd, caliper, frt, RH

$151.99

$

In Stock, only 1 left!

0

2

Cub Cadet 619-04137B

Housing, knuckle, r/frt, mach

$309.99

$

In Stock, only 1 left!

0

3

Cub Cadet 907-04398A

Control Assembly, r/frt, lwr

$440.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 907-04397A

Arm Assembly, r/frt, upr

$440.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 712-3083

Nut, Hex Lock, 1/2-13, Nylon

$4.49

$

In Stock, Qty 20+

0

6

Cub Cadet 710-0521

Screw, 3/8-16, 3.00, gr8, std

$5.49

$

In Stock, Qty 11

0

7

Cub Cadet 710-0489

Screw, 1/2-13, 2.00, gr5, std

$7.49

$

Usually ships in 3-6 days

0

8

Cub Cadet 712-04065

Nut, Flange Lock, 3/8-16, Nylon

$3.99

$

In Stock, Qty 20+

0

9

Cub Cadet 732-04424

Shabs, 5.0 Stroke, frt
(Superseded to 732-04424B)

$216.99

$

Usually ships in 3-6 days

0

10

Cub Cadet 710-0599

Screw, tt, 1/4-20x.500

$4.49

$

In Stock, Qty 20+

0

11

Cub Cadet 716-04039

Ring, Retainer, 34 x 1.6

$8.99

$

In Stock, only 3 left!

0

12

Cub Cadet 907-04400A

Control Assembly, l/frt, upr

$440.99

$

Usually ships in 3-6 days

0

13

Cub Cadet 907-04399A

Control Assembly, l/ftr, lwr

$440.99

$

Usually ships in 3-6 days

0

14

Cub Cadet 712-04086

Nut, Nylock, m12 x 1.25

$8.99

$

Usually ships in 3-6 days

0

15

Cub Cadet 741-04166

Bearing, double Row, 60x30x37

$276.99

$

In Stock, only 1 left!

0

16

Cub Cadet 710-0597

Screw, 1/4-20 x 1.00,

$3.99

$

In Stock, Qty 13

0

17

Cub Cadet 710-04639

Screw, m8-1.25, 25.00

$7.49

$

Usually ships in 3-6 days

0

18

Cub Cadet 619-04142B

Housing, knuckle, l/frt, mach

$316.99

$

In Stock, only 2 left!

0

19

Cub Cadet 961-04044

Brake, hydraulic, caliper, frt, LH

$151.99

$

In Stock, only 3 left!

0

20

Cub Cadet 712-3006

Nut, Hex,1/4-20

$4.99

$

In Stock, Qty 17

0

21

Cub Cadet 716-04055

Ring, Retainer, dho-60

$13.99

$

In Stock, only 1 left!

0

22

Cub Cadet 710-0433

Screw, 1/4-20, .625, gr5, lock

$4.49

$

In Stock, Qty 20+

0

23

Cub Cadet 707-04436A

Disc, brake, 8.00x.188
(Superseded to 707-06937)

$74.99

$

Usually ships in 3-6 days

0

24

Cub Cadet 710-0852

Stud, rib Neck, 7/16-14 x 1.6

$6.49

$

In Stock, only 2 left!

0

25

Cub Cadet 918-04489

Hub, wheel

$178.99

$

Usually ships in 3-6 days

0

26

Cub Cadet 936-0291

Washer, flat, .88 x 1.38 x .125, ht
(Superseded to 736-0291)

$11.99

$

Usually ships in 3-6 days

0

27

Cub Cadet 712-04109

Nut, slotted, 22x1.5

$52.99

$

Usually ships in 3-6 days

0

28

Cub Cadet 714-0162

Pin, cotter, 5/32, 1.25

$4.99

$

In Stock, Qty 20+

0

29

Cub Cadet 707-04740

Cap, Wheel UV

$36.99

$

In Stock, only 1 left!

0

30

Cub Cadet 712-3050

Nut, lug, 7/16-14

$9.99

$

In Stock, only 1 left!

0

31

Cub Cadet 634-04407

Wheel Assembly, 25 x 10-12

$404.99

$

Usually ships in 3-6 days

0

31

Cub Cadet 734-04323

Tire Only, 25 x 10.5-12

$148.99

$

Usually ships in 3-6 days

0

32

Cub Cadet 732-04383

Wire, Brake Line

$15.99

$

Usually ships in 3-6 days

0

33

Cub Cadet 723-04024

Ball Joint, 14d-6201

$83.99

$

In Stock, only 4 left!

0

Cub Cadet 711-04401

Axle, Front, 4x2

Note: (Not Shown)

$147.99

$

Usually ships in 3-6 days

0

Cub Cadet 723-3021

Creeper Drive Housing Breather

Note: (Not Shown)

$23.99

$

Usually ships in 3-6 days

0

Cub Cadet 737-04149

Adaptor, Diff, Breather

Note: (Not Shown)

$19.99

$

Usually ships in 3-6 days

0

Cub Cadet 761-04064

Brake Pad Kit
(Superseded to 961-04064)

Note: (contains two brake pads)(Not Shown)

$104.99

$

In Stock, Qty 14

0
