Volunteer 477 FIS Camo (37BB477H010) - Cub Cadet 4x2 Utility Vehicle (SN: 1G202Z - 1G313Z) Battery and Dash Panel Accessories Parts Diagram

4x2 Utility Vehicle

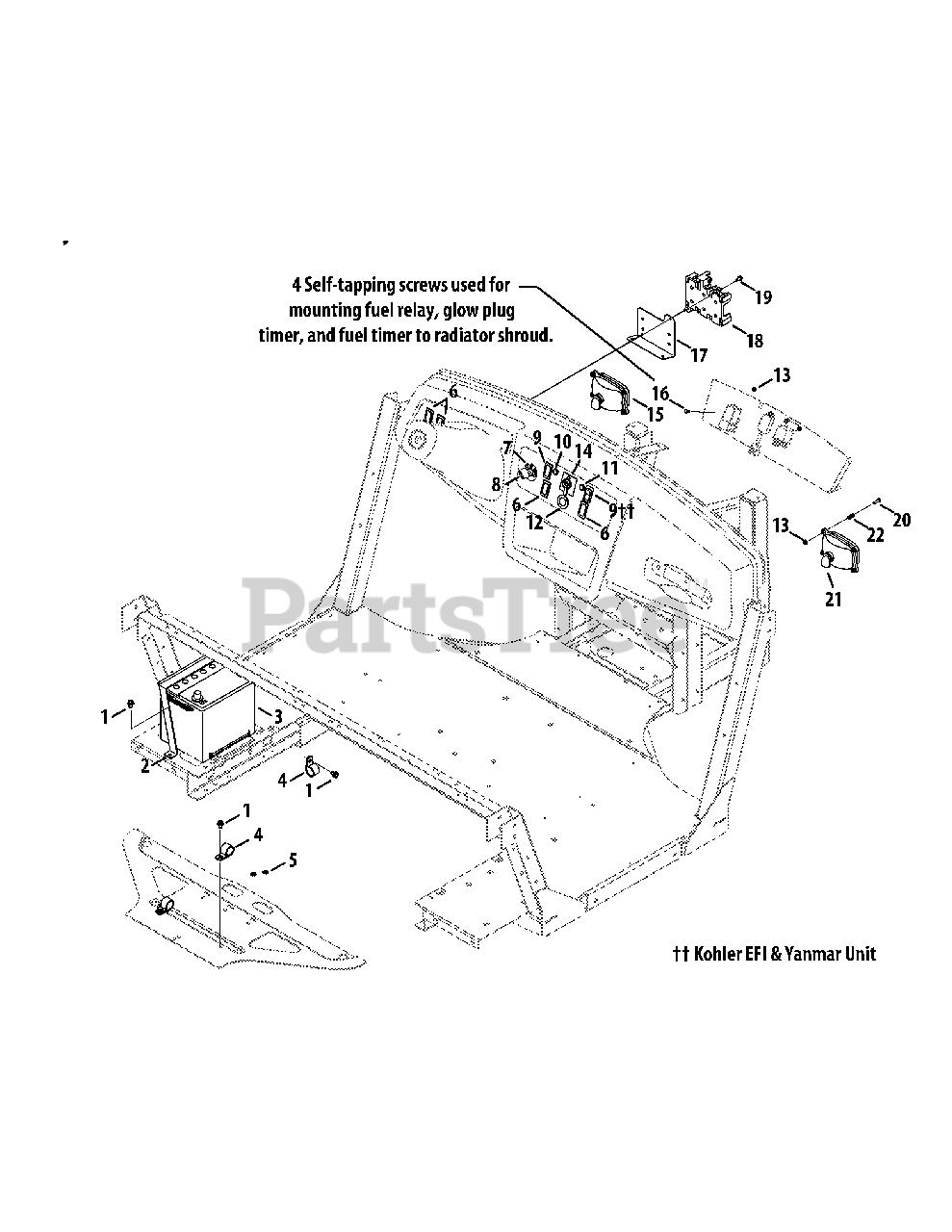

Battery and Dash Panel Accessories Parts Diagram

  • Title

1

Cub Cadet 710-0607

Screw, TT, 5/16-18 x .500

$6.99

$

In Stock, Qty 11

0

2

Cub Cadet 707-04870B-0637

Bracket, Mt., Battery

$54.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 925-04514

Battery, 450 CCA Wet

$314.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 726-0475

Clamp

$13.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 736-0607

Washer, Lock, 5/16

Note: (Diesel Unit Only)

$3.99

$

In Stock, Qty 20+

0

6

Cub Cadet 731-04010

Panel, Plug, Switch

$20.99

$

Usually ships in 3-6 days

0

7

Cub Cadet 925-1741

Switch, Key, 4 Pos. Delta

$45.99

$

In Stock, Qty 7

0

8

Cub Cadet 925-1745A

Key, Delta, Plastic

$17.99

$

In Stock, Qty 20+

0

9

Cub Cadet 725-04352

Switch, 4x4, Rocker

Note: (If Equipped)

$59.99

$

In Stock, only 2 left!

0

10

Cub Cadet 925-04288

Light, Ind., Yellow, LED

Note: (Diesel Unit Only)

$71.99

$

Usually ships in 3-6 days

0

10

Cub Cadet 925-04530

Lamp, Ind., Green, Incandescent

Note: (Kohler EFI Unit Only)

$38.99

$

Usually ships in 3-6 days

0

11

Cub Cadet 925-04285

Light, Ind., Red, LED

Note: (Diesel Unit Only)

$71.99

$

Usually ships in 3-6 days

0

11

Cub Cadet 725-04660

Lamp, Ind., Red, Incandescent

Note: (Kohler EFI Unit Only)

$31.99

$

Usually ships in 3-6 days

0

12

Cub Cadet 725-2003

Receptacle, Power, 12v

$42.99

$

Usually ships in 3-6 days

0

13

Cub Cadet 712-0161

Nut, Hex Lock, #10-24

$4.49

$

In Stock, Qty 20+

0

14

Cub Cadet 925-04022B

Meter, Ind., Hour Flat Face

$146.99

$

In Stock, Qty 5

0

15

Cub Cadet 625-04036P

Headlight Assembly (Incl. # 21)

$121.99

$

In Stock, only 2 left!

0

16

Cub Cadet 710-0473

Screw, #10-24 x .500

Note: (Diesel Unit Only)

$4.49

$

In Stock, only 2 left!

0

17

Cub Cadet 707-04811-0637

Bracket, Fuse Mount

$29.99

$

Usually ships in 3-6 days

0

18

Cub Cadet 731-05490

Relay, Holder, 3-Way

$73.99

$

Usually ships in 3-6 days

0

19

Cub Cadet 710-0599

Screw, TT, 1/4-20 x .500

$4.49

$

In Stock, Qty 20+

0

20

Cub Cadet 710-3009

Screw, TT, #10-24 x .750

$7.49

$

Usually ships in 3-6 days

0

21

Cub Cadet 925-3161A

Head lamp Bulb

$52.99

$

In Stock, only 2 left!

0

Cub Cadet 725-04625

Harness, Jumper, Neutral Switch (4x4)

Note: (Not Shown)

$48.99

$

Usually ships in 3-6 days

0

Cub Cadet 725-04678

Harness, Jumper, Neutral Switch (4x2)

Note: (Not Shown)

$40.99

$

Usually ships in 3-6 days

0

Cub Cadet 725-04840

Harness, Wire
(Superseded to 725-04840A)

Note: (Kohler, Not Shown)

$384.99

$

Usually ships in 3-6 days

0

Cub Cadet 925-04891

Harness, Wire
(Superseded to 925-04891A)

Note: (Kohler EFI Unit Only, Not Shown)

$485.99

$

Usually ships in 3-6 days

0

Cub Cadet 725-05203

Harness, Wire
(Superseded to 725-05203A)

Note: (Yanmar, Not Shown)

$604.99

$

Usually ships in 3-6 days

0

Cub Cadet 725-05199

Harness, Engine, Diesel

Note: (Yanmar, Not Shown)

$75.99

$

Usually ships in 3-6 days

0

Cub Cadet 735-04069A

Floor Mat, RH

Note: (If Equipped, Not Shown)

$125.99

$

Usually ships in 3-6 days

0

Cub Cadet 735-04068A

Floor Mat, LH

Note: (If Equipped, Not Shown)

$124.99

$

Usually ships in 3-6 days

0

Cub Cadet 925-04892

Harness, Fuel Pump

Note: (Kohler EFI Unit Only, Not Shown)

$43.99

$

Usually ships in 3-6 days

0

Cub Cadet 925-3166

Brake Switch

Note: (Not Shown)

$16.99

$

In Stock, Qty 20+

0
