Volunteer 475 FIS Sport Edition (37AC475A710) - Cub Cadet 4x2 Utility Vehicle (SN: 1B017G & Before) Kohler Oil Pan-Lubrication Parts Diagram

4x2 Utility Vehicle

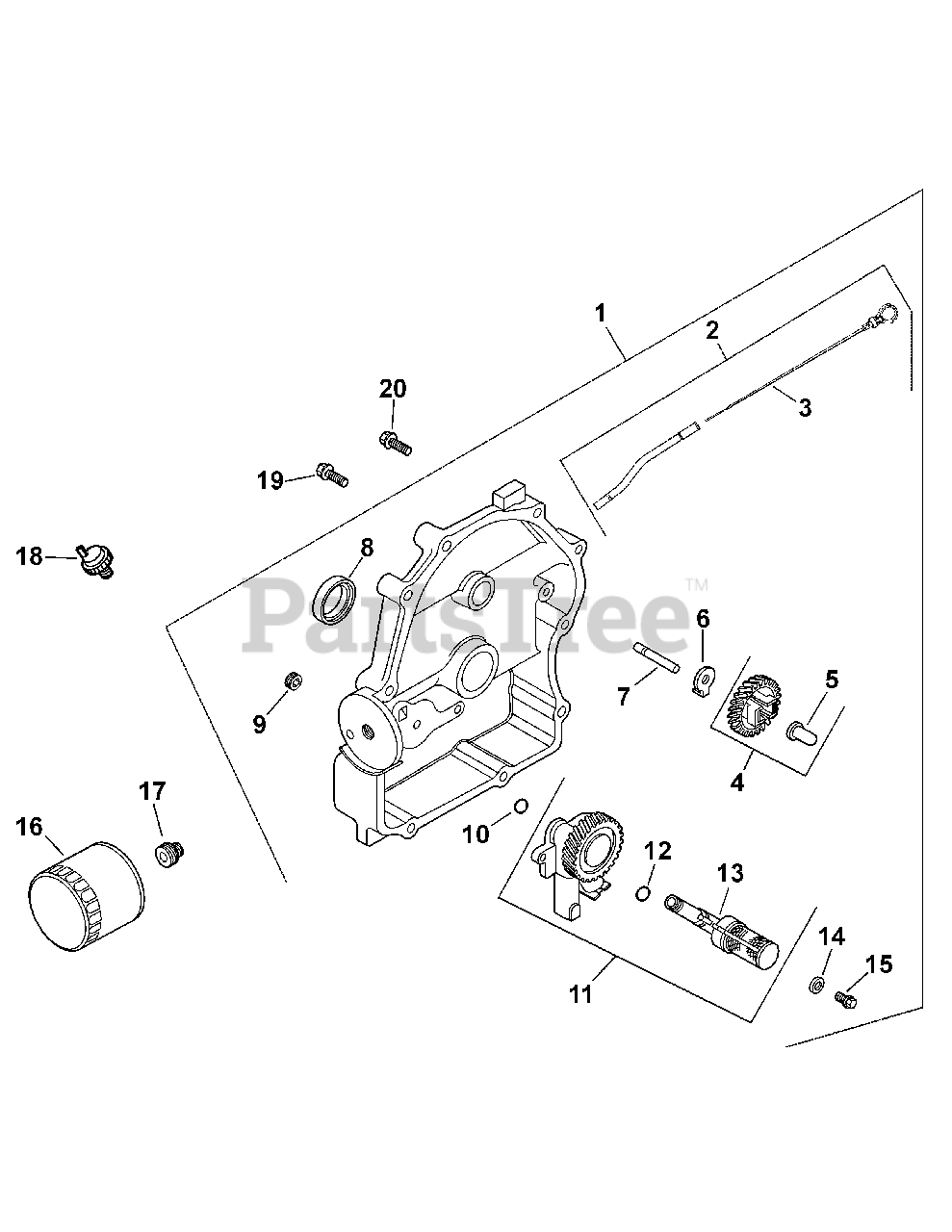

Kohler Oil Pan-Lubrication Parts Diagram

  • Title
1

Cub Cadet KH-24-009-167-S

Plate, closure assembly (Includes 2-15)
(Superseded to KH-24-009-227-S)

$

$

Not available

2

Cub Cadet KH-24-755-121-S

Kit, tube w/dipstick (Includes 3)

$35.99

$

In Stock, Qty 6

0

$12.99

$

In Stock, only 4 left!

0

4

Cub Cadet KH-24-043-12-S

Kit, governor gear (Includes 5)

$

$

Currently unavailable

5

Cub Cadet KH-12-380-01-S

Pin, governor regulating

$

$

Currently unavailable

6

$2.49

$

In Stock, Qty 20+

0

7

Cub Cadet KH-12-144-02-S

Shaft, governor gear

$

$

Currently unavailable

8

Cub Cadet KH-52-032-08-S

Seal, oil (PTO end)
(Superseded to KH-25-032-06-S)

$10.99

$

In Stock, Qty 16

0

9

Cub Cadet KH-25-139-60-S

Plug, pipe 1/8" (2)

$3.49

$

In Stock, only 2 left!

0

$6.99

$

In Stock, only 2 left!

0

11

Cub Cadet KH-24-393-51-S

Oil pump assembly (Includes 12,13)
(Superseded to KH-24-393-53-S)

$

$

Not available

12

Cub Cadet KH-24-153-01-S

O-Ring, oil pick-up

$

$

Currently unavailable

13

$

$

Currently unavailable

14

Cub Cadet KH-M-631005-S

Washer, plain 6 mm (2)

$

$

Currently unavailable

15

Cub Cadet KH-M-645025-S

Screw, hex. Flange M6x1.0x25 (2)
(Superseded to KH-25-086-395-S)

$2.49

$

In Stock, only 2 left!

0

16

$13.99

$

In Stock, Qty 20+

0

17

Cub Cadet KH-24-136-01-S

Nipple, oil filter

$

$

Currently unavailable

18

Cub Cadet KH-25-099-27-S

Switch, pressure

$15.99

$

In Stock, only 4 left!

0

19

Cub Cadet KH-24-086-16-S

Screw, hex. Flange M8x1.25x45 (9)
(Superseded to KH-24-086-17-S)

$2.49

$

In Stock, Qty 7

0

20

Cub Cadet KH-24-086-17-S

Screw, hex. Flange M8x1.25x45

$2.49

$

In Stock, Qty 7

0

Cub Cadet KH-25-113-05-S

Decal, oil sentry

Note: not shown

$

$

Currently unavailable

Cub Cadet KH-24-113-08-S

Decal, 20 HP

Note: not shown

$5.49

$

Usually ships in 2-5 days

0

Cub Cadet KH-25-113-39-S

Decal, clear laminate
(Superseded to KH-25-113-79-S)

Note: not shown

$2.49

$

In Stock, only 4 left!

0
