Volunteer 475 FIS Green (37BB475H710) - Cub Cadet 4x2 Utility Vehicle (SN: 1I029Z - 1H020Z) Kohler CH620-3023 Head, Valve & Breather Parts Diagram

4x2 Utility Vehicle

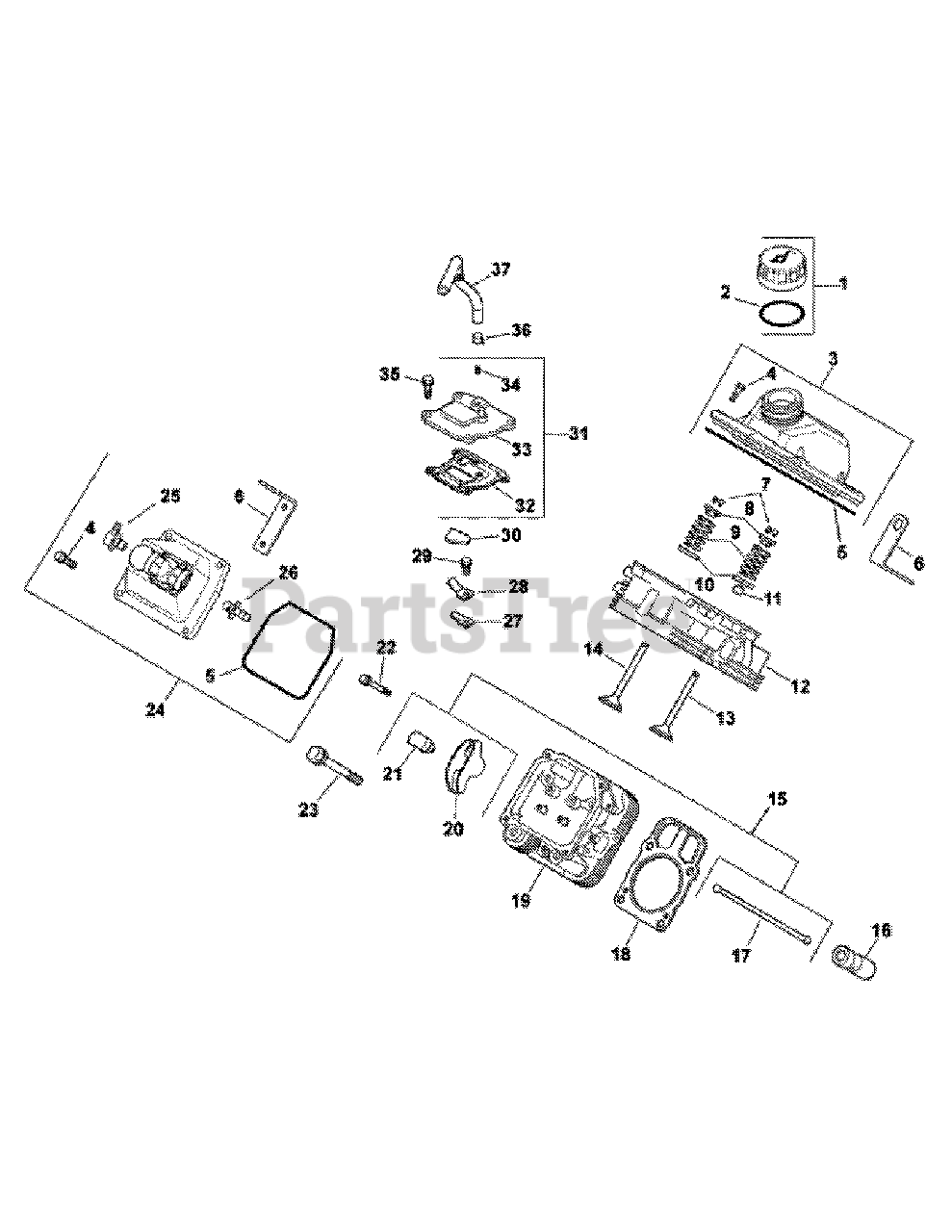

Kohler CH620-3023 Head, Valve & Breather Parts Diagram

  • Title

1

Cub Cadet KH-24-755-46

Kit, Oil Fill Cap (Yellow) (Includes 2)

$

$

Not available

2

Cub Cadet KH-25-153-02-S

O-Ring, Dipstick

$2.49

$

In Stock, only 1 left!

0

3

Cub Cadet KH-24-755-140-S

Kit, Valve Cover-Oil Fill (Includes 4,5)

$36.99

$

In Stock, only 1 left!

0

4

Cub Cadet KH-M-651030-S

Screw, Flg M6X1.0X30
(Superseded to KH-25-086-797-S)

$2.99

$

Usually ships in 3-6 days

0

5

Cub Cadet KH-24-153-30-S

O-Ring, Valve Cover Use 24 153 30-S

$11.99

$

In Stock, Qty 5

0

6

Cub Cadet KH-25-445-01-S

Strap, Lifting Use 25 445 01-S
(Superseded to KH-25-445-03-S)

$

$

Not available

7

Cub Cadet KH-12-755-03

Kit, Retainer

$5.99

$

In Stock, only 2 left!

0

8

Cub Cadet KH-12-173-01

Cap, Valve Spring - Use 25 173 28-S
(Superseded to KH-25-173-28-S)

$8.49

$

In Stock, only 4 left!

0

9

Cub Cadet KH-24-089-02

Spring, Valve

$

$

Not available

10

Cub Cadet KH-235011-S

Retainer, Spring

$6.49

$

In Stock, only 2 left!

0

11

Cub Cadet KH-66-032-05-S

Seal, Valve Stem
(Superseded to KH-25-032-14-S)

$11.99

$

In Stock, Qty 8

0

12

Cub Cadet KH-24-318-107-S

Kit, #1 Cylinder Head Assembly
(Superseded to KH-24-318-202-S)

$286.99

$

Usually ships in 3-6 days

0

13

Cub Cadet KH-24-017-01

Valve, Intake (Std)

$

$

Not available

13

Cub Cadet KH-24-017-02

Valve, Intake (.25)

$

$

Not available

14

Cub Cadet KH-24-016-01

Valve, Exhaust (Std)
(Superseded to KH-32-016-01-S)

$15.99

$

In Stock, only 4 left!

0

14

Cub Cadet KH-24-016-02

Valve, Exhaust (.25)

$

$

Not available

15

Cub Cadet KH-24-755-66

Kit, Valve Train (Includes 17,20,21)

$

$

Not available

16

Cub Cadet KH-25-351-07-S

Kit, Hydraulic Valve Lifter
(Superseded to KH-25-351-11-S)

$23.99

$

In Stock, only 4 left!

0

17

Cub Cadet KH-24-411-05

Rod, Push

$

$

Not available

18

Cub Cadet KH-24-841-01-S

Kit, Cyl Head Gasket (C17-22)

$45.99

$

Usually ships in 2-5 days

0

19

Cub Cadet KH-24-318-115-S

Kit, #2 Cylinder Head Assembly
(Superseded to KH-24-318-203-S)

$286.99

$

Usually ships in 3-6 days

0

20

Cub Cadet KH-25-186-01

Arm, Rocker

$

$

Not available

21

Cub Cadet KH-24-599-02-S

Pivot, Rocker Arm

$2.49

$

In Stock, Qty 8

0

22

Cub Cadet KH-M-640034-S

Screw, Flg M6X1.0X34

$2.49

$

In Stock, Qty 18

0

23

Cub Cadet KH-12-086-16

Screw, Flg M10X1.5X90
(Superseded to KH-62-086-08-S)

$5.99

$

In Stock, Qty 5

0

24

Cub Cadet KH-24-559-12-S

Kit, Valve Cover-Fuel Pump (Includes 4,5,25)

$162.99

$

In Stock, only 2 left!

0

25

Cub Cadet KH-25-294-11-S

Kit, 90 degree Fitting

$11.99

$

In Stock, only 2 left!

0

26

Cub Cadet KH-25-294-10-S

Kit, 1/4" Fitting (Straight)

$6.49

$

Usually ships in 2-5 days

0

27

Cub Cadet KH-24-402-03

Reed, Breather
(Superseded to KH-24-402-06-S)

$3.49

$

Usually ships in 3-6 days

0

28

Cub Cadet KH-66-018-04-S

Retainer, Reed

$4.99

$

In Stock, Qty 6

0

29

Cub Cadet KH-M-0545010

Screw, Flg Thd Frm M5X.8X10

$

$

Not available

30

Cub Cadet KH-24-050-11-S

Filter, Breather Use 24 050 11-S

$2.49

$

Usually ships in 2-5 days

0

31

Cub Cadet KH-24-033-01

Kit, Breather Assembly

$

$

Not available

32

Cub Cadet KH-24-041-67-S

Gasket, Breather Use 24 041 64-S

$13.99

$

In Stock, Qty 9

0

33

Cub Cadet KH-24-096-86-S

Kit, Breather Cover Use 24 033 01-S
(Superseded to KH-24-033-01)

$

$

Not available

34

Cub Cadet KH-25-139-60-S

Plug, Ctsk Pipe 1/8"

$3.49

$

In Stock, only 2 left!

0

35

Cub Cadet KH-M-645020-S

Screw, Flg Thd Frm M6X1.0X20
(Superseded to KH-25-086-396-S)

$2.49

$

In Stock, only 1 left!

0

36

Cub Cadet KH-25-237-14-S

Clamp, Hose 1/2"
(Superseded to KH-25-237-31-S)

$4.99

$

In Stock, only 3 left!

0

37

Cub Cadet KH-24-326-89-S

Breather Hose

$9.99

$

In Stock, Qty 6

0

Cub Cadet KH-24-755-147-S

Kit, Cylinder Head Hardware (not shown)

Note: (SERVICES 1 HEAD. QUANTITIES LISTED ARE FOR BOTH HEADS) includes 7-11,13

$96.99

$

In Stock, only 3 left!

0
