Volunteer 475 FIS Green (37BB475H710) - Cub Cadet 4x2 Utility Vehicle (SN: 1I029Z - 1H020Z) Kohler CH620-3023 Crankcase Parts Diagram

4x2 Utility Vehicle

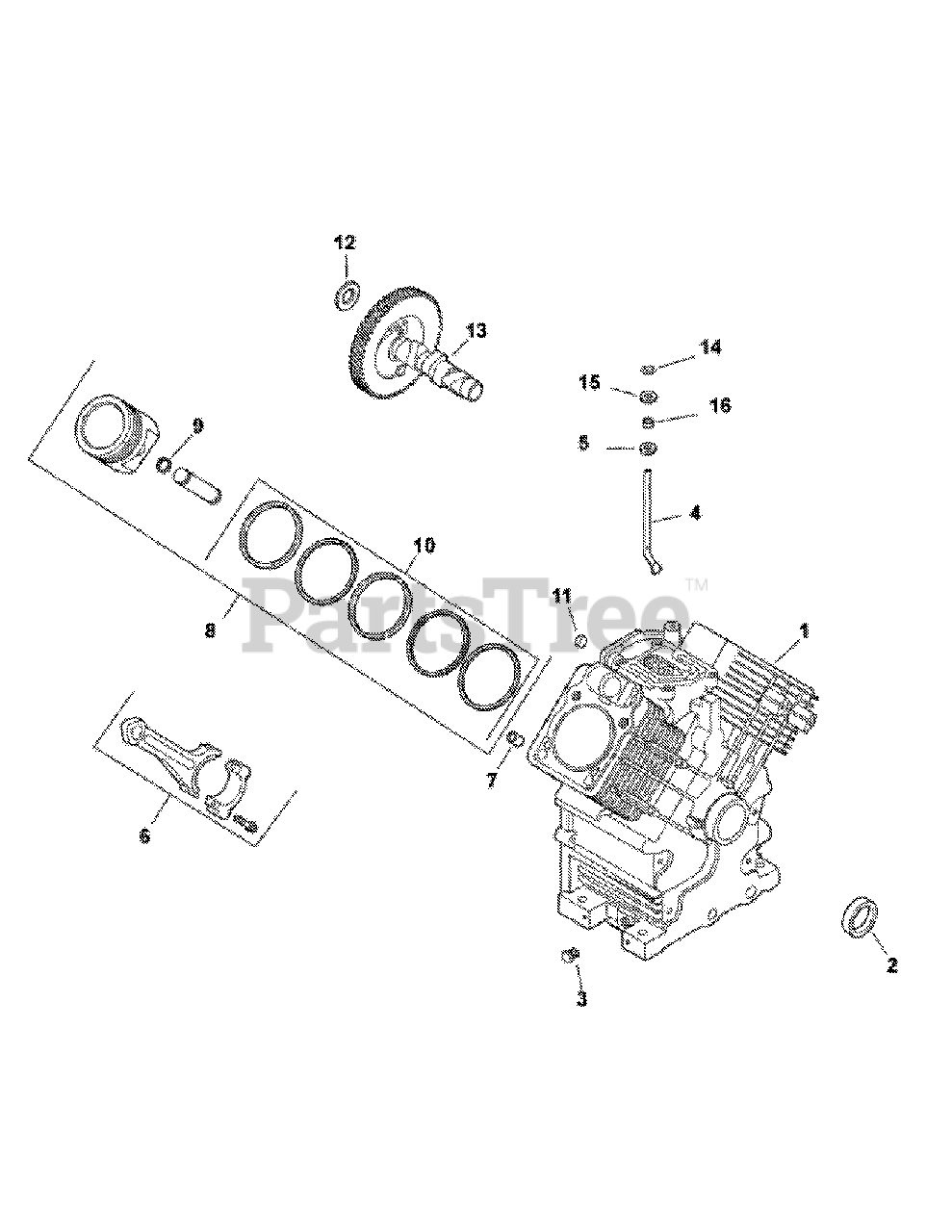

Kohler CH620-3023 Crankcase Parts Diagram

  • Title

1

Cub Cadet N/A

Crankcase Use: Short Block

$

$

Currently unavailable

2

Cub Cadet KH-24-032-19-S

Seal, Oil (Helix Lip) 1.78"Od & 1.26" Id

$7.49

$

In Stock, Qty 20+

0

3

Cub Cadet KH-25-139-57-S

Plug, Sq Hd Pipe 3/8"

$2.49

$

In Stock, only 3 left!

0

4

Cub Cadet KH-24-144-39-S

Shaft, Governor Cross

$41.99

$

Usually ships in 2-5 days

0

5

Cub Cadet KH-24-468-15-S

Washer, Flat 11/32"

$2.49

$

In Stock, Qty 5

0

6

Cub Cadet KH-24-067-28-S

Rod, Assembly Connecting
(Superseded to KH-25-067-04-S)

$59.99

$

In Stock, only 3 left!

0

6

Cub Cadet KH-24-067-29-S

Rod, Assembly Connecting (.25 O.S.)
(Superseded to KH-25-067-05-S)

$59.99

$

In Stock, only 1 left!

0

7

Cub Cadet KH-24-380-16-S

Pin, Locating

$4.49

$

In Stock, only 3 left!

0

8

Cub Cadet KH-24-874-46-S

Kit,Piston Assy W/Ring 77Mm-Std (Inclludes 9 & 10)

$

$

Not available

8

Cub Cadet KH-24-874-47-S

Kit, Piston Assy W/Ring Set (.08)

$

$

Not available

8

Cub Cadet KH-24-874-48-S

Kit,Pstn Assy W/Rng St(0.25,77M)

$

$

Not available

8

Cub Cadet KH-24-874-49-S

Kit,Piston W/Ring St (0.5),77Mm

$

$

Not available

9

Cub Cadet KH-24-018-01-S

Retainer, Piston Pin

$2.99

$

In Stock, Qty 7

0

10

Cub Cadet KH-24-108-22-S

Ring Set (Std)

$

$

Not available

11

Cub Cadet KH-52-139-09-S

Plug, Cup

$4.99

$

In Stock, only 2 left!

0

12

Cub Cadet KH-12-422-07-S

Shim, Camshaft (White .028")

$4.49

$

Usually ships in 2-5 days

0

12

Cub Cadet KH-12-422-08-S

Shim, Camshaft (Blue .03")

$2.49

$

In Stock, only 2 left!

0

12

Cub Cadet KH-12-422-09-S

Shim, Camshaft (Red .032")

$2.49

$

In Stock, only 1 left!

0

12

Cub Cadet KH-12-422-10-S

Shim, Camshaft (Yellow .034")

$2.49

$

In Stock, only 1 left!

0

12

Cub Cadet KH-12-422-11-S

Shim, Camshaft (Green .036")

$2.49

$

Usually ships in 2-5 days

0

12

Cub Cadet KH-12-422-12-S

Shim, Camshaft (Gray .038")

$2.99

$

Usually ships in 2-5 days

0

12

Cub Cadet KH-12-422-13-S

Shim, Camshaft (Black .04")

$2.99

$

Usually ships in 2-5 days

0

13

Cub Cadet KH-24-012-10-S

Kit, Camshaft (Includes 12 422 08-S & 25 357 14-S)
(Superseded to KH-24-012-23-S)

$164.99

$

Usually ships in 3-6 days

0

14

Cub Cadet KH-24-018-09-S

Retainer, Ring

$2.49

$

Usually ships in 2-5 days

0

15

Cub Cadet KH-M-931010-S

Washer, Flat 9 Mm

$2.49

$

In Stock, only 2 left!

0

16

Cub Cadet KH-28-032-09-S

Seal, Governor Cross Shaft

$3.49

$

In Stock, Qty 6

0

Cub Cadet KH-25-357-14-S

Lubricant, Camshaft

Note: (Not Illustrated, not shown)

$2.49

$

In Stock, only 3 left!

0

Cub Cadet KH-24-782-15

Mini Block

Note: (Not shown)

$

$

Not available

Cub Cadet KH-24-522-438

Short Block

Note: (Not shown)

$

$

Not available

Cub Cadet KH-CH620-3034

Complete Engine

Note: (replaces KH-CH620-3023, Not shown)

$

$

Not available
