Volunteer 46G Diesel (37BK46GD710) - Cub Cadet 4x4 Utility Vehicle (SN: 1H030Z - 1G192Z) Yanmar Engine - Transmission Accessories Parts Diagram

4x4 Utility Vehicle

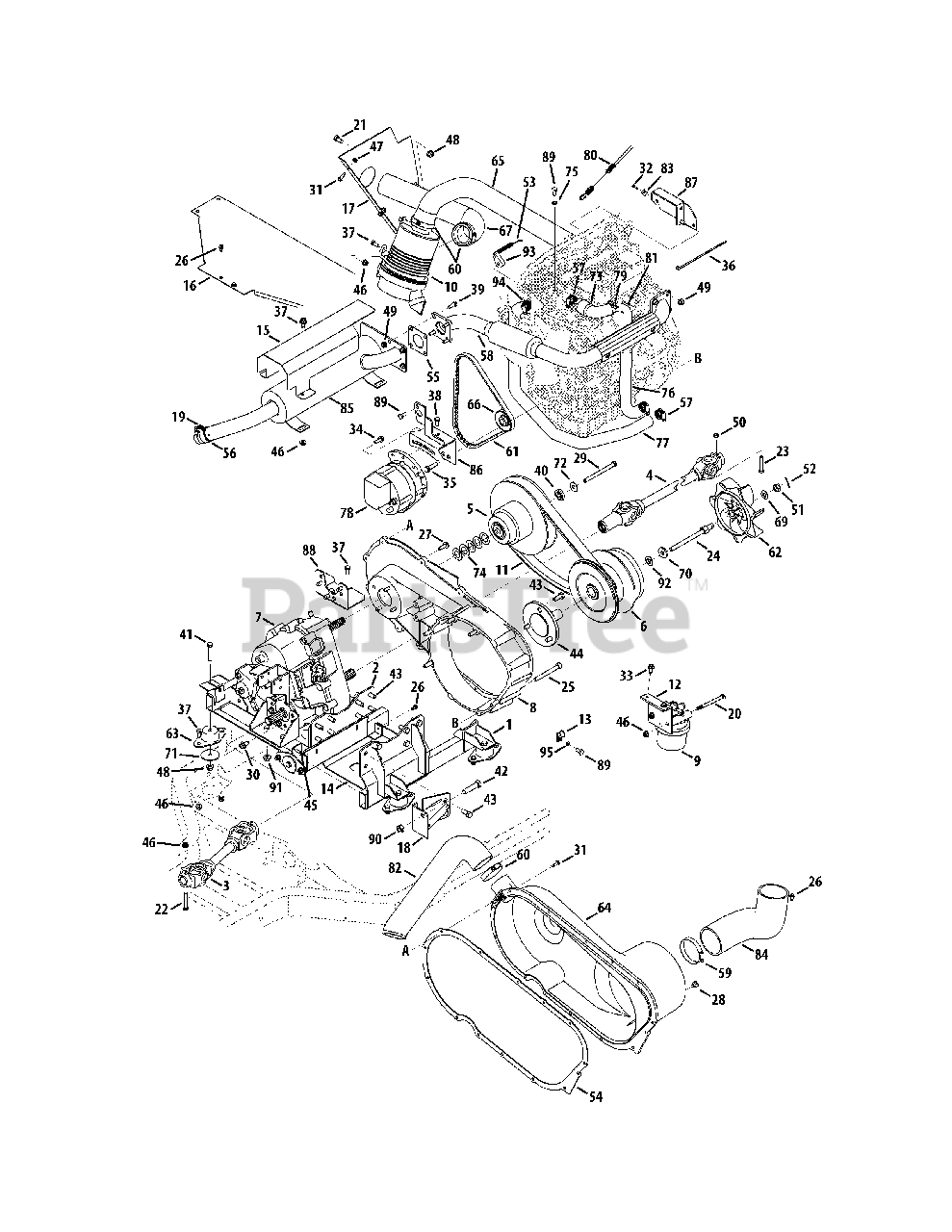

Yanmar Engine - Transmission Accessories Parts Diagram

  • Title

1

Cub Cadet 607-04310-0637

Tray Assembly, Engine, Yanmar

$243.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 607-04311-0637

Tray Assembly, Engine, Trans

$324.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 918-04306

Shaft Assembly, Rr/prop

$800.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 918-04314

Shaft Assembly, Frt/prop, Hilliard

$672.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 918-04586A

Clutch Assembly, Cvt, Driven
(Superseded to 918-04586B)

$786.99

$

Usually ships in 3-6 days

0

6

Cub Cadet 918-04585

Clutch Assembly, Driver, Yanmar

$1226.99

$

Usually ships in 3-6 days

0

7

Cub Cadet 959-04207

Case Assembly, Transfer
(Superseded to 959-05014B)

$2012.99

$

Usually ships in 3-6 days

0

8

Cub Cadet 619-04207

Housing Assembly, Cvt, Machine

$602.99

$

Usually ships in 3-6 days

0

9

Cub Cadet 951-04044

Filter Assembly, Diesel

$

$

Not available

9

Cub Cadet 759-04027

Filter Fuel, Diesel

Note: Not shown

$77.99

$

In Stock, only 3 left!

0

10

Cub Cadet 951-04156

Filter Assembly, Air Cleaner

$168.99

$

Usually ships in 3-6 days

0

10

Cub Cadet 751-10376

Filter, Air

Note: Not shown, For 951-04156 filter assembly

$75.99

$

In Stock, only 4 left!

0

10

Cub Cadet 751-3197

Valve, Dust

Note: Not shown, For 951-04156 filter assembly

$37.99

$

In Stock, only 4 left!

0

11

Cub Cadet 754-04125

Belt, Cvt, 4x4
(Superseded to 754-04125B)

$114.99

$

Usually ships in 3-6 days

0

12

Cub Cadet 707-04714

Bracket, Fuel Filter, Yanmar

Variations

Cub Cadet 707-04714-0637

BRACKET:FILTER:FUEL - POWDER BLACK (0637)

$35.99

$

Usually ships in 3-6 days

0

$30.99

$

Usually ships in 3-6 days

0

13

Cub Cadet 726-0272

Clamp

$7.49

$

Usually ships in 3-6 days

0

14

Cub Cadet 707-05179

Shield, Oil, Engine

$43.99

$

Usually ships in 3-6 days

0

15

Cub Cadet 707-04891

Exhaust, Shield, Heat

$78.99

$

Usually ships in 3-6 days

0

16

Cub Cadet 707-04969

Plate, Heat, Shield, Yanmar

$70.99

$

Usually ships in 3-6 days

0

17

Cub Cadet 707-05257A-0637

Plate, Baffle

$41.99

$

Usually ships in 3-6 days

0

18

Cub Cadet 607-04327-0637

Bracket Mount, Lower, Alternator

$58.99

$

Usually ships in 3-6 days

0

19

Cub Cadet 751-10690

Clamp

$25.99

$

Usually ships in 3-6 days

0

20

Cub Cadet 710-0190

Hex Head Screw, 5/16-18, 4.00

$7.99

$

Usually ships in 3-6 days

0

21

Cub Cadet 710-0216

Hex Head Screw, 3/8-16, .75

$4.49

$

In Stock, Qty 15

0

22

Cub Cadet 710-3103

Hex Head Screw, 5/16-18, 2.00

$4.49

$

In Stock, Qty 20+

0

23

Cub Cadet 710-04653

Hex Head Screw, 5/16-18, 1.875

$4.49

$

Usually ships in 3-6 days

0

24

Cub Cadet 710-04657

Hex Head Screw, 7/16-20, 5.00

$30.99

$

Usually ships in 3-6 days

0

25

Cub Cadet 710-04769

Screw, M10-1.50

$2.49

$

Usually ships in 3-6 days

0

26

Cub Cadet 710-0599

Screw, Tt, 1/4-20, 0.500, Hxindwsh

$4.49

$

In Stock, Qty 20+

0

27

Cub Cadet 710-0602

Screw, Tt, 5/16-18, 1.000, Hxindwsh

$4.49

$

In Stock, Qty 20+

0

28

Cub Cadet 710-0603

Screw, B, 5/16-12, 0.500, Hxindwsh

$4.99

$

Usually ships in 3-6 days

0

29

Cub Cadet 710-04764

Hex Head Screw, 3/8-24, 3.50

$6.99

$

In Stock, only 1 left!

0

30

Cub Cadet 710-0623

Screw, Tt, 3/8-16, 0.750, Hxindwsh

$4.49

$

In Stock, Qty 20+

0

31

Cub Cadet 710-0642

Screw, Tt, 1/4-20, 0.750, Hxindwsh

$4.49

$

In Stock, Qty 20+

0

32

Cub Cadet 710-1003

Screw, #10-16, 0.625, Hxindwsh
(Superseded to 710-04669)

$3.49

$

In Stock, Qty 20+

0

33

Cub Cadet 710-04484

Screw, 5/16-18, 0.750, Hxindwsh

$3.99

$

In Stock, Qty 20+

0

34

Cub Cadet 710-1238

Hex Head Screw, 5/16-18, .875
(Superseded to 710-1238A)

$4.49

$

In Stock, Qty 20+

0

35

Cub Cadet 710-1313

Hex Head Screw, M8-1.5, 35 mm

$3.99

$

Usually ships in 3-6 days

0

36

Cub Cadet 725-0157

Tie, Cable

$3.99

$

In Stock, Qty 20+

0

37

Cub Cadet 710-3008

Hex Head Screw, 5/16-18, .75

$4.49

$

In Stock, Qty 20+

0

38

Cub Cadet 710-3015

Hex Head Screw, 1/4-20, .75

$3.99

$

In Stock, Qty 20+

0

39

Cub Cadet 710-3038

Hex Head Screw, 5/16-18, .875

$4.99

$

In Stock, only 3 left!

0

40

Cub Cadet 738-04232

Spacer, Shoulder

$22.99

$

Usually ships in 3-6 days

0

41

Cub Cadet 710-3144

Hex Head Screw, 3/8-16, 2.00

$4.49

$

In Stock, Qty 20+

0

42

Cub Cadet 710-0489

Hex Head Screw, 1/2-13, 2.00

$7.49

$

Usually ships in 3-6 days

0

43

Cub Cadet 710-3208

Hex Head Screw, M10-1.5, 25mm

$3.99

$

In Stock, only 4 left!

0

44

Cub Cadet 911-04964

Shaft, Output, Yanmar, Tapered

$120.99

$

Usually ships in 3-6 days

0

45

Cub Cadet 712-04193

Nut, U

$9.99

$

Usually ships in 3-6 days

0

46

Cub Cadet 712-04063

Nut, Flange Lock, 5/16-18, Nylon

$3.99

$

In Stock, Qty 20+

0

47

Cub Cadet 712-04064

Nut, Flange Lock, 1/4-20, Nylon

$3.99

$

In Stock, Qty 20+

0

48

Cub Cadet 712-04065

Nut, Flange Lock, 3/8-16, Nylon

$3.99

$

In Stock, Qty 20+

0

49

Cub Cadet 712-3004A

Nut, Flange Lock, 5/16-18, Sd Lk

$3.99

$

In Stock, Qty 20+

0

50

Cub Cadet 912-3009

Nut, Hex Lock, 5/16-18, Ctrlk
(Superseded to 712-3009)

$

$

Not available

51

Cub Cadet 912-3012

Nut, Hex, 1/2-20, Gr5, Slot
(Superseded to 712-3012A)

$13.99

$

Usually ships in 3-6 days

0

52

Cub Cadet 914-0111

Pin, Cot, 3/32, 1.0
(Superseded to 714-0111)

$4.99

$

In Stock, Qty 13

0

53

Cub Cadet 732-04248

Spring, Extension

$10.99

$

In Stock, only 2 left!

0

54

Cub Cadet 721-04292

Gasket, CVT Cover

$

$

Not available

55

Cub Cadet 721-04167

Gasket, Engine
(Superseded to 721P04167)

$16.99

$

In Stock, only 4 left!

0

56

Cub Cadet 751-10689

Spark Arrester Screen

$28.99

$

Usually ships in 3-6 days

0

57

Cub Cadet 726-04114

Clamp, Hose, Adj

$8.99

$

Usually ships in 3-6 days

0

58

Cub Cadet 751-10756

Pipe, Exhaust, Yanmar

$308.99

$

Usually ships in 3-6 days

0

59

Cub Cadet 726-04080

Clamp, Hose, Adj

$11.99

$

In Stock, Qty 11

0

60

Cub Cadet 726-0476

Clamp, Hose, Adj 2-3"

$12.99

$

Usually ships in 3-6 days

0

61

Cub Cadet 954-04225

Belt, V

$41.99

$

In Stock, only 1 left!

0

62

Cub Cadet 731-04275

Impeller, Blo

$35.99

$

In Stock, only 4 left!

0

63

Cub Cadet 731-04667

Compression Mount, Eng, Head

$112.99

$

Usually ships in 3-6 days

0

64

Cub Cadet 731-06748

Cover, Cvt

$65.99

$

Usually ships in 3-6 days

0

65

Cub Cadet 751-10994

Hose, Air Inlet, Yanmar

$59.99

$

Usually ships in 3-6 days

0

66

Cub Cadet 756-04379

Pulley

$50.99

$

Usually ships in 3-6 days

0

67

Cub Cadet 751-10995

Hose, Air Inlet

$49.99

$

Usually ships in 3-6 days

0

68

Cub Cadet 936-0264

Washer, Flat, .330 x .630 x .0635

$6.99

$

In Stock, only 3 left!

0

69

Cub Cadet 936-0272

Washer, Flat, .510 x 1.00 x .060
(Superseded to 736-0272)

$4.99

$

In Stock, Qty 20+

0

70

Cub Cadet 736-0322

Washer, Flat, .450 x 1.250 x .164

$9.49

$

In Stock, Qty 7

0

71

Cub Cadet 736-04018

Washer, Flat, .38 x 2.00 x .12

$7.99

$

Usually ships in 3-6 days

0

72

Cub Cadet 936-0452

Washer, Bell, .396 x 1.140 x .095
(Superseded to 736-0452)

$4.99

$

In Stock, Qty 5

0

73

Cub Cadet 751-10894

Tube, Upr, rr, Rdtr, Yanmar

$29.99

$

Usually ships in 3-6 days

0

74

Cub Cadet 736-0566

Washer, Flat, .793 x 1.368 x .025

$6.99

$

In Stock, Qty 13

0

75

Cub Cadet 736-0607

Washer, Lock, 5/16 Ext Tooth

$3.99

$

In Stock, Qty 20+

0

76

Cub Cadet 751-10893

Tube, lwr, rdtr

$29.99

$

Usually ships in 3-6 days

0

77

Cub Cadet 751-10779

Hose, Rdtr, Rr, Yanmar

$60.99

$

Usually ships in 3-6 days

0

78

Cub Cadet 725-04806

Alternator, Aux, 65 Amp

$1039.99

$

Usually ships in 3-6 days

0

79

Cub Cadet 737-04232

Fitting, Petcock, 1/8"

$21.99

$

Usually ships in 3-6 days

0

80

Cub Cadet 946-04540

Cable, Throttle Control, Yanmar

$74.99

$

Usually ships in 3-6 days

0

81

Cub Cadet 750-04989

Tube, Rdtr

$71.99

$

Usually ships in 3-6 days

0

82

Cub Cadet 751-10997

Hose, CVT, Exhaust

$54.99

$

Usually ships in 3-6 days

0

83

Cub Cadet 751B221535

Clamp, Casing

$10.99

$

In Stock, Qty 10

0

84

Cub Cadet 751-10510

Tube, Cvt, Intake

$106.99

$

Usually ships in 3-6 days

0

85

Cub Cadet 751-10152B

Muffler

$1079.99

$

Usually ships in 3-6 days

0

86

Cub Cadet 607-04312-0637

Assembly Mount, Alternator

$56.99

$

Usually ships in 3-6 days

0

87

Cub Cadet 607-04325A-0637

Bracket, Throttle Mount

$43.99

$

Usually ships in 3-6 days

0

88

Cub Cadet 607-04326-0637

Bracket, Transmission Mount, rr

$48.99

$

Usually ships in 3-6 days

0

89

Cub Cadet 710-3138

Hex Head Screw, M8-1.25

$6.99

$

Usually ships in 3-6 days

0

90

Cub Cadet 712-3022

Nut, Hex Lock, 1/2-13

$3.99

$

In Stock, Qty 20+

0

91

Cub Cadet 712-3086

Nut, M8-1.25

$4.49

$

In Stock, only 2 left!

0

92

Cub Cadet 738-04231

Spacer, Shoulder

$26.99

$

Usually ships in 3-6 days

0

93

Cub Cadet 707-05272

Bracket, Throttle, Spring, Return

$14.99

$

Usually ships in 3-6 days

0

94

Cub Cadet 726-0132

Clamp, Hose, Adj

$15.99

$

Usually ships in 3-6 days

0

95

Cub Cadet 736-0173

Washer, Flat 1/4"

$4.49

$

In Stock, Qty 20+

0
