Volunteer 46G Diesel (37BK46GD010) - Cub Cadet 4x4 Utility Vehicle (SN: 1G202Z - 1G313Z) Pedals and Levers Parts Diagram

4x4 Utility Vehicle

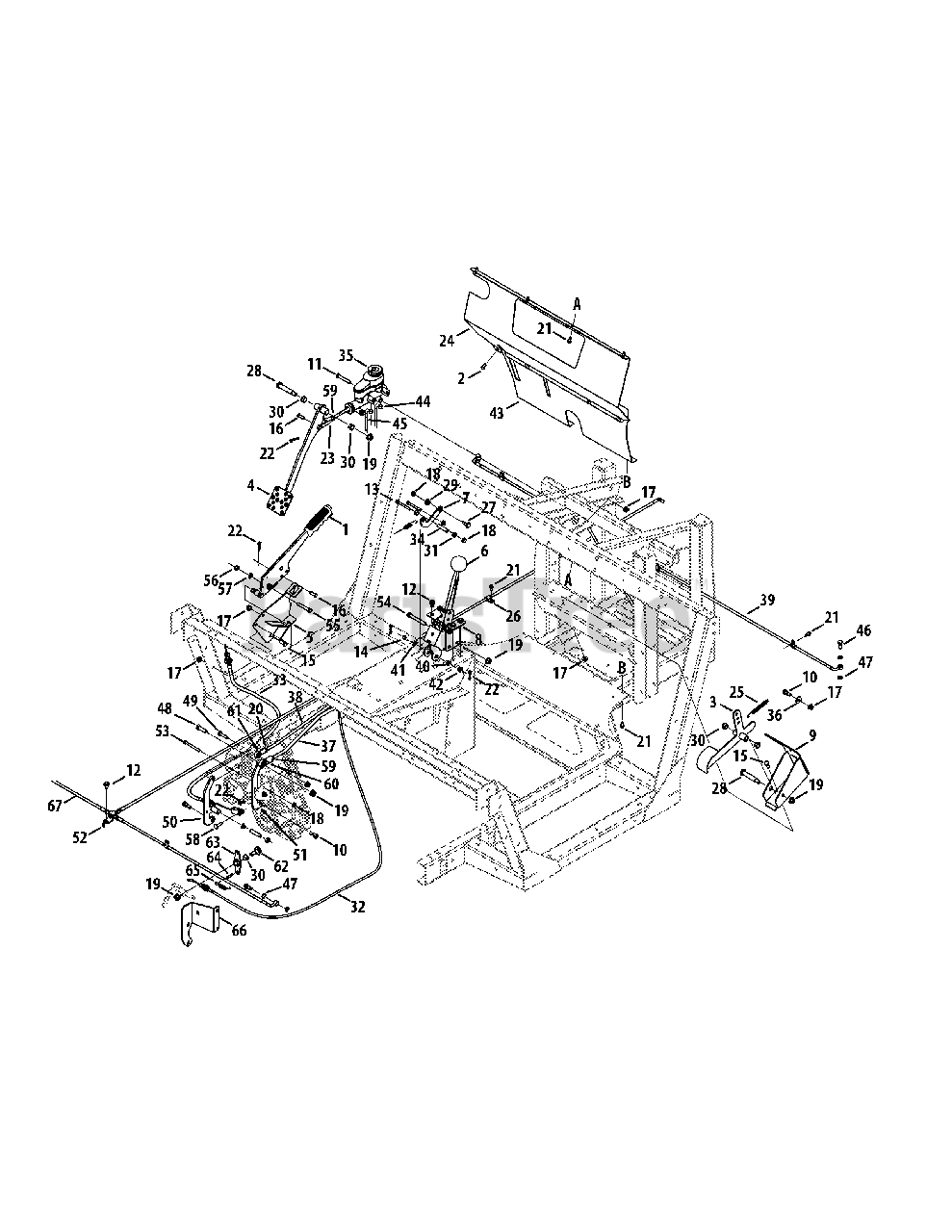

Pedals and Levers Parts Diagram

  • Title

1

Cub Cadet 603-04089

Lever Assembly, Brake

$283.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 710-1017

Screw, ab, 1/4-14, 0.625,

$8.49

$

In Stock, Qty 9

0

3

Cub Cadet 607-04188D-0637

Pedal Assembly, Accelerator

$66.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 607-04193B-0637

Pedal Assembly, Brake

$110.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 607-04208-0637

Bracket Assembly, Park Brake

$80.99

$

Usually ships in 3-6 days

0

6

Cub Cadet 907-04212A

Shaft Assembly, Hurst, 4x4

Note: Equipped on 4x4 Units

$524.99

$

Usually ships in 3-6 days

0

6

Cub Cadet 607-04246

Shaft Assembly, Hurst, 4x2

Note: Equipped on 4x2 Units

$549.99

$

Usually ships in 3-6 days

0

7

Cub Cadet 707-04642

Plate, Pawl, Over Center

$14.99

$

Usually ships in 3-6 days

0

8

Cub Cadet 707-04805-0637

Shaft, Console Mount

$23.99

$

Usually ships in 3-6 days

0

9

Cub Cadet 707-04823D-0637

Bracket, Accelerator Pedal

$77.99

$

Usually ships in 3-6 days

0

10

Cub Cadet 710-04027

Screw, Shldr, .372 x .375, 5/16-18

$15.99

$

In Stock, only 1 left!

0

11

Cub Cadet 710-04039

Screw, 5/16-18, 2.00, Gr5, Patch

$4.99

$

In Stock, only 4 left!

0

12

Cub Cadet 710-0607

Screw, Tt, 5/16-18, 0.500

$6.99

$

In Stock, Qty 12

0

13

Cub Cadet 710-0641

Screw, 1/4-20, 2.25, Gr5, Std

$4.49

$

In Stock, only 2 left!

0

14

Cub Cadet 741-04198

Bearing., Flange, .315 ID

$9.49

$

Usually ships in 3-6 days

0

15

Cub Cadet 710-3008

Screw, 5/16-18, .75, Gr5, Std

$4.49

$

In Stock, Qty 20+

0

16

Cub Cadet 711-05063

Pin, Clevis, 312 Od x 1.0"

$3.99

$

In Stock, only 4 left!

0

17

Cub Cadet 712-04063

Nut, Flange Lock, 5/16-18

$3.99

$

In Stock, Qty 20+

0

18

Cub Cadet 712-04064

Nut, Flange Lock, 1/4-20, Nylon

$3.99

$

In Stock, Qty 20+

0

19

Cub Cadet 712-04065

Nut, Flange Lock, 3/8-16, Nylon

$3.99

$

In Stock, Qty 20+

0

20

Cub Cadet 712-3025

Nut, Jam, 5/16-24, Gr5

$7.49

$

Usually ships in 3-6 days

0

21

Cub Cadet 710-0599

Screw, Tt, 1/4-20 x .500

$4.49

$

In Stock, Qty 20+

0

22

Cub Cadet 714-04040

Pin, Cot, 3/32, 1.0

$1.49

$

In Stock, Qty 20+

0

23

Cub Cadet 719-3018

Yoke, 5/16-24

$43.99

$

Usually ships in 3-6 days

0

24

Cub Cadet 707-04711B-0637

Panel, Dash, Upper

$121.99

$

Usually ships in 3-6 days

0

25

Cub Cadet 932-0611

Spring, External, .38 Od x 3.6

$7.49

$

In Stock, Qty 20+

0

25

Cub Cadet 732-04973

Spring, External, .49 Od x 3.15

Note: Diesel & Kohler EFI Engines

$4.49

$

Usually ships in 3-6 days

0

26

Cub Cadet 726-04056

Clamp, Hose

$4.99

$

Usually ships in 3-6 days

0

27

Cub Cadet 938-0974

Screw, Shldr, .375x.380, 1/4-20
(Superseded to 738-0974)

$

$

Not available

28

Cub Cadet 738-1011A

Screw, Shldr, .500 x 2.230, 3/8-16

$8.49

$

In Stock, Qty 11

0

29

Cub Cadet 941-0475

Plastic Bushing .380 Id

$4.49

$

In Stock, Qty 20+

0

30

Cub Cadet 741-0491

Bearing, Flange, .500 x .34

$5.49

$

In Stock, only 4 left!

0

31

Cub Cadet 941-3073

Bearing, Flng., .375 x .580 x .250

$5.49

$

In Stock, Qty 20+

0

32

Cub Cadet 746-04248

Cable, Cont, Diff, Lock
(Superseded to 746P04248)

$56.99

$

Usually ships in 3-6 days

0

33

Cub Cadet 946-04254

Cable, Cont, Park, Brake, 4x4

$71.99

$

In Stock, only 1 left!

0

34

Cub Cadet 750-04500

Spacer, Pivot, Diff Lock

$37.99

$

Usually ships in 3-6 days

0

35

Cub Cadet 661-04042

Cylinder, Master, Tandem

$183.99

$

Usually ships in 3-6 days

0

36

Cub Cadet 936-0159

Washer, Flat, .349 x .879 x .063
(Superseded to 736-0159)

$

$

Not available

37

Cub Cadet 747-04528A

Link, Shaft, F N R

$52.99

$

In Stock, only 1 left!

0

38

Cub Cadet 747-04529A

Link, Shaft, Hi Lo, 4x4

Note: Equipped on 4x4 Units

$44.99

$

Usually ships in 3-6 days

0

39

Cub Cadet 927-04224

Hose, brake, front

$88.99

$

Usually ships in 3-6 days

0

40

Cub Cadet 936-0140

Washer, Flat, .385 x .62 x .063
(Superseded to 736-0140)

$

$

Not available

41

Cub Cadet 936-0264

Washer, Flat, .330 x .630 x .0635

$6.99

$

In Stock, only 3 left!

0

42

Cub Cadet 741-04199

Bearing, Flange, .377 Id

$11.99

$

Usually ships in 3-6 days

0

43

Cub Cadet 707-04712D-0637

Panel, Dash, Lower, 4x4

$121.99

$

Usually ships in 3-6 days

0

44

Cub Cadet 927-04233

Hose, Brake, Master Cyl, Front

$62.99

$

Usually ships in 3-6 days

0

45

Cub Cadet 927-04230

Hose, Brake, Master Cyl, Rear

$150.99

$

Usually ships in 3-6 days

0

46

Cub Cadet 737-04129

Fitting, Banjo Ftg Bolt, M10 x 1.00

$28.99

$

Usually ships in 3-6 days

0

47

Cub Cadet 737-04130

Fitting, Banjo Ftg Crush Washer

$8.99

$

Usually ships in 3-6 days

0

48

Cub Cadet 710-3005

Screw, 3/8-16 x 1.25

$3.99

$

In Stock, Qty 12

0

49

Cub Cadet 710-0528

Screw, 5/16-18 x 1.25

Note: Equipped on 4x4 Units

$4.49

$

In Stock, Qty 20+

0

50

Cub Cadet 607-04210

Lever, Assembly, Shift, Hi-Lo, 4x4
(Superseded to 907-04210)

Note: Equipped on 4x4 Units

$82.99

$

Usually ships in 3-6 days

0

51

Cub Cadet 607-04211

Lever, Assembly, Shift, F N R
(Superseded to 607E04211)

$81.99

$

In Stock, only 2 left!

0

52

Cub Cadet 737-04128

Fitting, Tee, -3, 45 Deg Flare

$57.99

$

Usually ships in 3-6 days

0

53

Cub Cadet 710-1122

Screw, 1/4-20 x 2.50

$7.49

$

Usually ships in 3-6 days

0

54

Cub Cadet 710-3022

Screw, 3/8-16 x 2.75

$4.99

$

In Stock, Qty 7

0

55

Cub Cadet 710-3103

Screw, 5/16-18 x 2.00

$4.49

$

In Stock, only 4 left!

0

56

Cub Cadet 912-3010

Nut, Hex, 5/16-18
(Superseded to 712-3010)

$4.49

$

In Stock, Qty 20+

0

57

Cub Cadet 936-0275

Washer, Flat, .344 x .688 x .065
(Superseded to 736-0275)

$

$

Not available

58

Cub Cadet 711-04585

Pin, Clevis

$6.99

$

In Stock, only 1 left!

0

59

Cub Cadet 912-3001

Nut, Jam, 3/8-24

$6.99

$

In Stock, Qty 18

0

60

Cub Cadet 723-04038

Rod, End, 3/8 ID

$60.99

$

Usually ships in 3-6 days

0

61

Cub Cadet 723-04039

Rod, End, 5/16 ID

Note: Equipped on 4x4 Units

$57.99

$

Usually ships in 3-6 days

0

62

Cub Cadet 738-04409

Screw, shldr, .500 dia x .434

$3.49

$

Usually ships in 3-6 days

0

63

Cub Cadet 607-04216A

Lever, Assembly, Diff Lock

$62.99

$

Usually ships in 3-6 days

0

64

Cub Cadet 715-04011

Pin, Roll

$5.49

$

Usually ships in 3-6 days

0

65

Cub Cadet 732-0418

Spring, external, .38od x 2.10

$10.99

$

In Stock, only 1 left!

0

66

Cub Cadet 707-04693A-0637

Bracket, diff, Cable,mnt

$49.99

$

Usually ships in 3-6 days

0

67

Cub Cadet 927-04228

Hose, brake, rear

$84.99

$

In Stock, only 1 left!

0
