Volunteer 46G Diesel (37AK46GD710) - Cub Cadet 4x4 Utility Vehicle (SN: 1I019G & Before) Seats, Battery & Fuel Tank Parts Diagram

4x4 Utility Vehicle

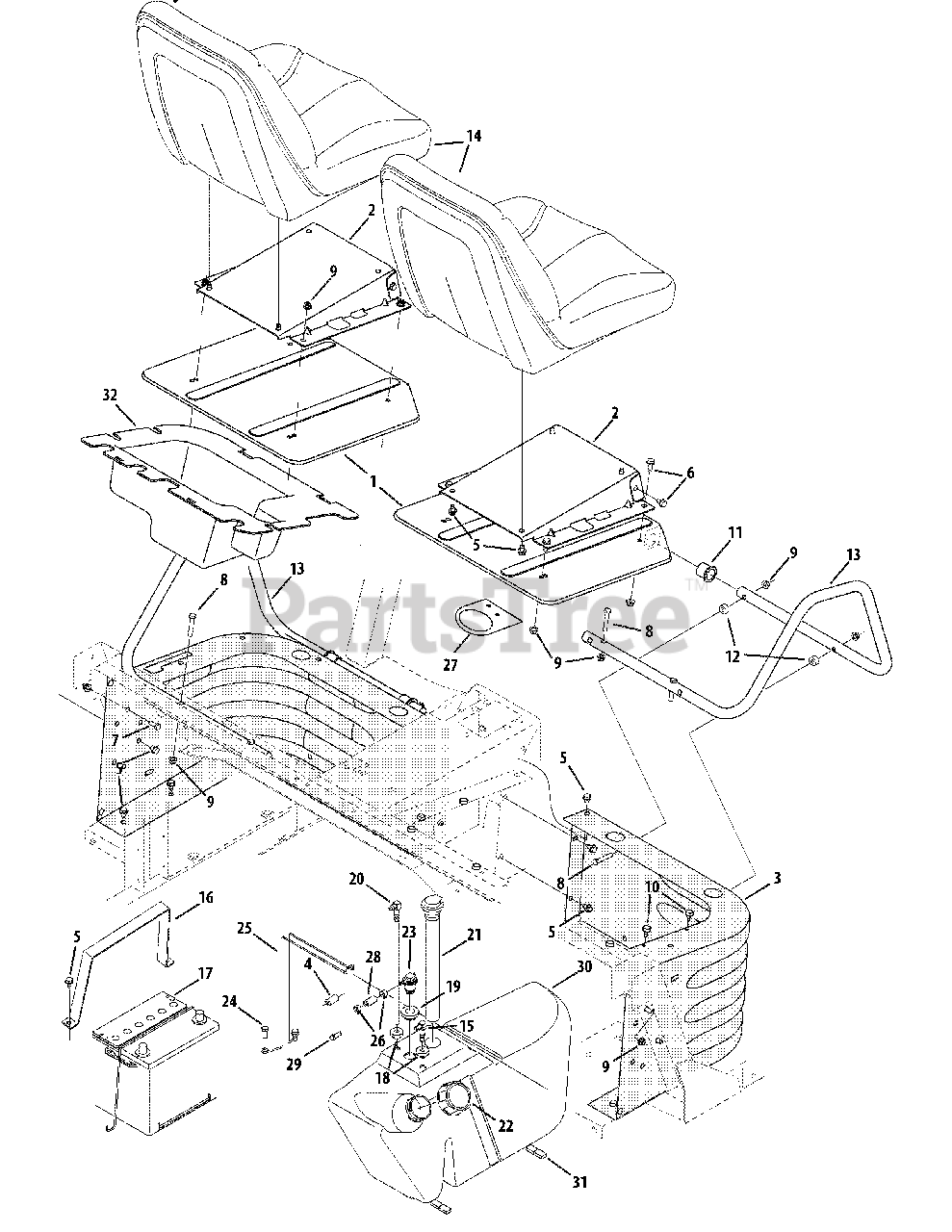

Seats, Battery & Fuel Tank Parts Diagram

  • Title

1

Cub Cadet 607-04228B-0637

Plt, Seat, Assm.

$86.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 707-05261

Brkt., Mt., Seat
(Superseded to 707-05261-0637)

Variations

Cub Cadet 707-05261-0637

BRACKET-MOUNT SEAT - POWDER BLACK (0637)

$

$

Not available

$

$

3

Cub Cadet 607-04223B-0637

Box, Seat
(Superseded to 607-04223C-0637)

$121.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 751-10681

Line, Fuel, HP

Note: Kohler EFI Engine

$4.49

$

Usually ships in 3-6 days

0

5

Cub Cadet 710-0607

Scr., TT, 5/16-18 x .500

$6.99

$

In Stock, Qty 9

0

6

Cub Cadet 710-1260A

Screw, LD, 5/16-18 x .750

$3.99

$

In Stock, Qty 20+

0

7

Cub Cadet 710-3008

Screw, 5/16-18 x .75

$4.49

$

In Stock, Qty 20+

0

8

Cub Cadet 710-3180

Screw, 5/16-18 x 1.75

$5.49

$

In Stock, Qty 20+

0

9

Cub Cadet 712-04063

Nut, Flglk, 5/16-18

$3.99

$

In Stock, Qty 20+

0

10

Cub Cadet 735-0271A

Bmpr, .62 Dia. x .3

$8.99

$

In Stock, only 1 left!

0

11

Cub Cadet 741-04215

Brg, Flg, .894 ID x 1.1315 OD

$9.99

$

Usually ships in 3-6 days

0

12

Cub Cadet 750-0258

Spcr, .315 x .750 x .375 Lg.

$11.99

$

In Stock, only 1 left!

0

13

Cub Cadet 750-05186

Hndl, Grab

Variations

Cub Cadet 750-05186-0637

HANDLE-GRAB - POWDER BLACK (0637)

$75.99

$

Usually ships in 3-6 days

0

$66.99

$

Usually ships in 3-6 days

0

14

Cub Cadet 757-04008A

Seat, High Back
(Superseded to 757-04097)

$426.99

$

Usually ships in 3-6 days

0

14

Cub Cadet 757-04060

Seat Cover, Gray:Black

Note: Not shown, for 757-04008A seat

$

$

Not available

14

Cub Cadet 757-04097

Seat, Sport

Note: Kohler EFI Engine

$426.99

$

Usually ships in 3-6 days

0

15

Cub Cadet 751-3174

Ftg., Fuel, Pickup

Note: Diesel Yanmar Engine, Kohler EFI Engine

$19.99

$

In Stock, only 1 left!

0

16

Cub Cadet 707-04870A-0637

Brkt., Mt., Battery
(Superseded to 707-04870B-0637)

$54.99

$

Usually ships in 3-6 days

0

17

Cub Cadet 925-04514

Battery, 450 CCA Dry

Note: (Service replacement battery must be filled with acid before installation, purchase locally)

$314.99

$

Usually ships in 3-6 days

0

18

Cub Cadet 735-04065

Bush, Tank, Gas

$14.99

$

In Stock, only 1 left!

0

19

Cub Cadet 735-04067

Bush, Tank, Vent

$10.99

$

In Stock, only 1 left!

0

20

Cub Cadet 751-10288

Ftg, Fuel, Pickup

$21.99

$

Usually ships in 3-6 days

0

21

Cub Cadet 951-10361

Sensor, Fuel, Low

$133.99

$

Usually ships in 3-6 days

0

21

Cub Cadet 735-0699

Grommet 1.21X1.58

Note: Not Shown

$16.99

$

In Stock, only 3 left!

0

22

Cub Cadet 751-10374

Cap, Fuel

Note: Kohler Engine

$20.99

$

In Stock, only 3 left!

0

22

Cub Cadet 751-10373

Cap, Fuel

Note: Diesel Yanmar Engine

$22.99

$

Usually ships in 3-6 days

0

23

Cub Cadet 951-10375

Ftg, Fuel, Vent

$77.99

$

Usually ships in 3-6 days

0

24

Cub Cadet 710-0607

Screw, 5/16-18 x .500

Note: Kohler Engine

$6.99

$

In Stock, Qty 9

0

24

Cub Cadet 710-3008

Screw, 5/16-18 x .75

Note: Diesel Yanmar Engine

$4.49

$

In Stock, Qty 20+

0

25

Cub Cadet 732-04357

Wire, tank, fuel

$21.99

$

Usually ships in 3-6 days

0

26

Cub Cadet 726-0205

Clamp, Hose, .490 Dia.

Note: Diesel Yanmar Engine

$3.99

$

In Stock, Qty 20+

0

27

Cub Cadet 707-04991-0637

Brkt., Tube, CVT

$18.99

$

In Stock, only 1 left!

0

28

Cub Cadet 751-10350

Fuel Line, 5/16 Id

Note: Kohler Engine, Diesel Yanmar Engine

$4.49

$

Usually ships in 3-6 days

0

28

Cub Cadet 751-10349

Hose, Fuel Line, Low Permeation

Note: Diesel Yanmar Engine, Kohler EFI Engine

$9.49

$

Usually ships in 3-6 days

0

29

Cub Cadet 737-0296

Vent, 3/8 Dia.

Note: Diesel Yanmar Engine

$12.99

$

Usually ships in 3-6 days

0

30

Cub Cadet 951-04208

Tank assembly, Fuel
(Superseded to 951-04208A)

Note: Kohler EFI Engine

$210.99

$

Usually ships in 3-6 days

0

30

Cub Cadet KH-24-050-12-S

Filter, In Line Fuel
(Superseded to KH-24-050-22-S)

Note: Low Pressure, not shown

$16.99

$

Usually ships in 2-5 days

0

30

Cub Cadet 951-04158

Tank assembly, Fuel
(Superseded to 951-05244)

Note: Diesel Yanmar Engine

$430.99

$

In Stock, only 1 left!

0

30

Cub Cadet 951-04159

Tank assembly, Fuel
(Superseded to 951-04247B)

Note: Kohler Engine

$270.99

$

Usually ships in 3-6 days

0

31

Cub Cadet 722-3022-12

Tape, .625 Wide X.25 Thk Foam
(Superseded to 722-3022A-12)

$18.99

$

Usually ships in 3-6 days

0

32

Cub Cadet 731-05622

Tray, Seat box

$113.99

$

Usually ships in 3-6 days

0
