Volunteer 46F Diesel (37AK46FH710) - Cub Cadet 4x4 Utility Vehicle Yanmar Engine Cooling Water System Parts Diagram

4x4 Utility Vehicle

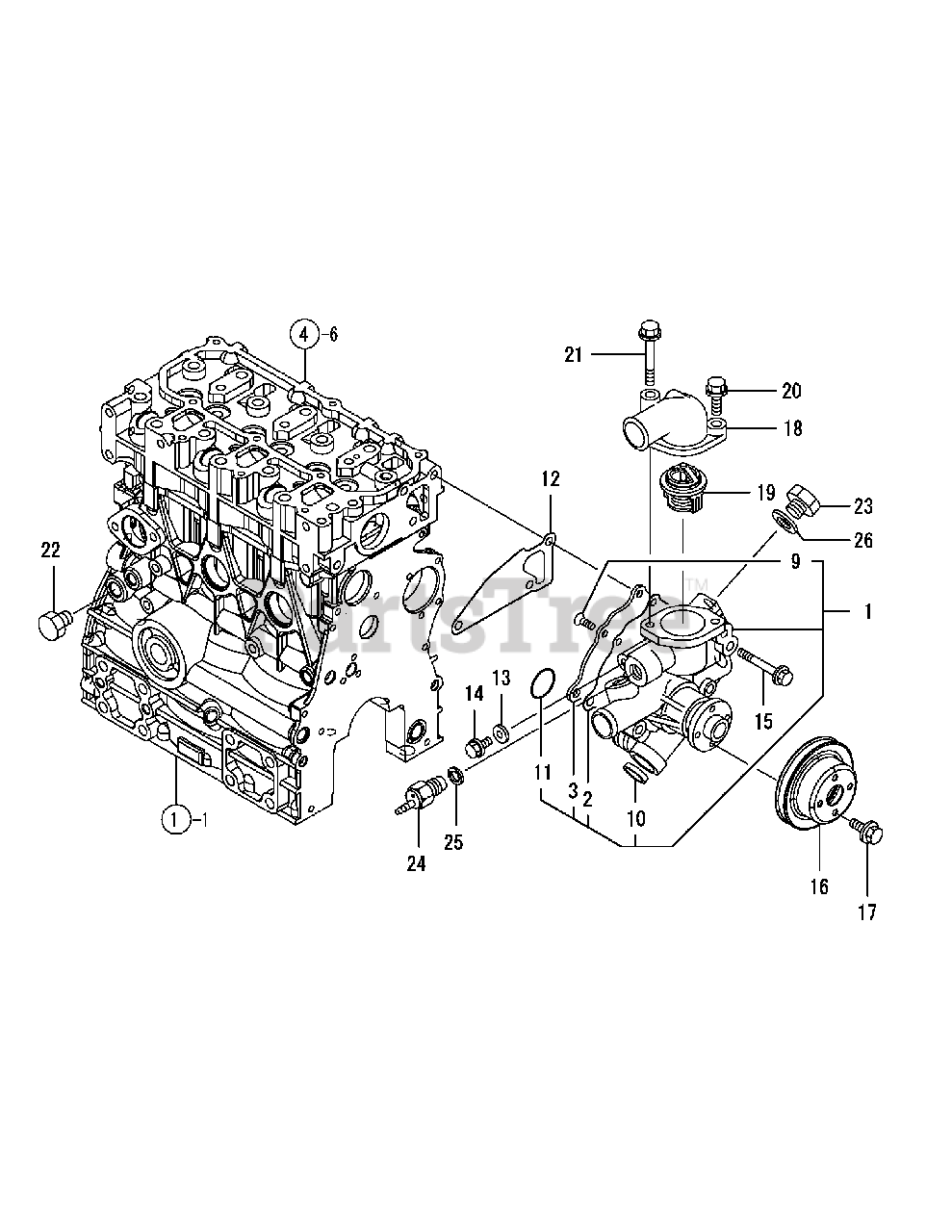

Yanmar Engine Cooling Water System Parts Diagram

  • Title
1

Cub Cadet YA-119515-42001

Pump Assembly, Water
(Superseded to YA-11951542002P)

$619.99

$

Usually ships in 3-6 days

0

$29.99

$

Usually ships in 3-6 days

0

$192.99

$

Usually ships in 3-6 days

0

9

Cub Cadet YA-26577-060122

Screw, M 6 x 12

$0.99

$

Usually ships in 3-6 days

0

$2.99

$

Usually ships in 3-6 days

0

$4.49

$

Usually ships in 3-6 days

0

12

Cub Cadet YA-119515-42020

Gasket, Water Pump

$12.99

$

Usually ships in 3-6 days

0

13

Cub Cadet YA-23414-080000

Gasket 8, Round

$0.99

$

Usually ships in 3-6 days

0

14

Cub Cadet YA-26106-080122

Bolt, M 8 x 12 Plated

$0.99

$

Usually ships in 3-6 days

0

15

Cub Cadet YA-26106-080502

Bolt, M 8 x 50 Plated

$1.49

$

Usually ships in 3-6 days

0

16

Cub Cadet YA-119717-42350

V-Pulley, C.W. Pump

$54.99

$

Usually ships in 3-6 days

0

17

Cub Cadet YA-26106-060122

Bolt, M 6 x 12 Plated

$0.99

$

Usually ships in 3-6 days

0

18

Cub Cadet YA-124101-49531

Cover, Thermostat

$83.99

$

Usually ships in 3-6 days

0

$60.99

$

Usually ships in 3-6 days

0

20

Cub Cadet YA-26106-080252

Bolt, M 6 x 25 Plated

$1.49

$

Usually ships in 3-6 days

0

21

Cub Cadet YA-26106-080652

Bolt, M 6 x 65 Plated

$1.49

$

Usually ships in 3-6 days

0

22

$17.99

$

Usually ships in 3-6 days

0

$6.99

$

Usually ships in 3-6 days

0

24

Cub Cadet YA-121250-44901

Switch, Thermo

$29.99

$

In Stock, only 1 left!

0

$2.49

$

In Stock, only 1 left!

0

$2.49

$

In Stock, only 1 left!

0

Note:1-1 Refers to Yanmar Engine Cylinder Head, Ref No.1

$

$

Not available

Note:4-6 Refers to Yanmar Engine Cylinder Head & Bonnet, Ref No.6

$

$

Not available
