Volunteer 46E EFI (37AM46ED710) - Cub Cadet 4x4 Utility Vehicle (SN: 1I018G - 1I019G) Kohler EFI Engine Head, Valve & Breather Parts Diagram

4x4 Utility Vehicle

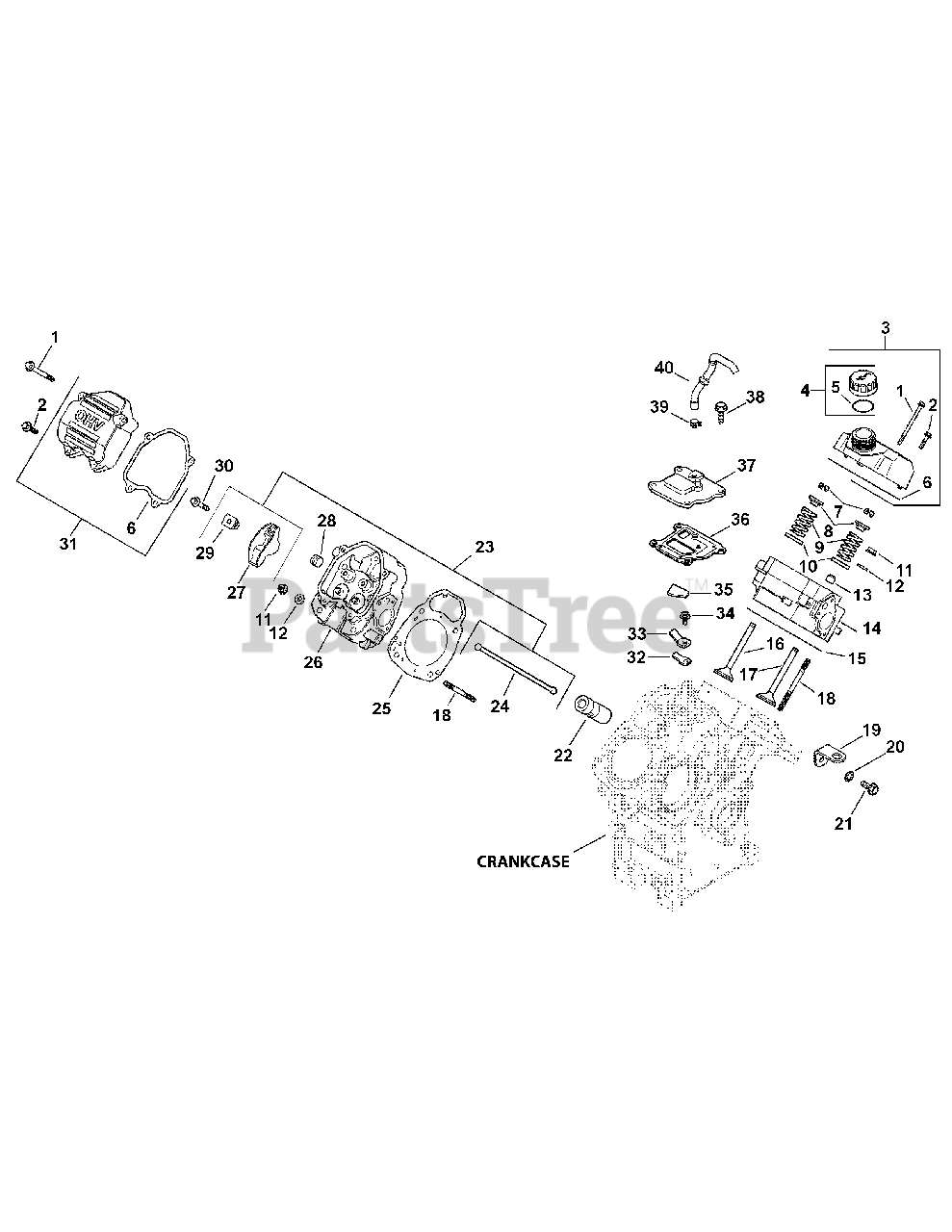

Kohler EFI Engine Head, Valve & Breather Parts Diagram

  • Title

1

Cub Cadet KH-M-651050-S

Screw, Flg, M6 x 1.0 x 50

$2.99

$

Usually ships in 2-5 days

0

2

Cub Cadet KH-25-086-124-S

Screw, Flg, M6 x 1.0 x 25

$2.49

$

In Stock, only 3 left!

0

3

Cub Cadet KH-66-755-10-S

Kit, Rocker Cover (Oil Fill)

Note: (Includes 1,2,4-6)

$34.99

$

In Stock, only 1 left!

0

3

Cub Cadet KH-66-096-08-S

Rocker Cover & Gasket (Oil Fill)
(Superseded to KH-66-755-10-S)

$34.99

$

In Stock, only 1 left!

0

4

Cub Cadet KH-24-755-46

Kit, Oil Fill Cap (Yellow)

Note: (Incl. Ref No. 5)

$

$

Not available

5

Cub Cadet KH-24-153-01

O-Ring, Oil Pick-up

$

$

Not available

6

Cub Cadet KH-66-041-09-S

Gasket, Valve Cover

$6.49

$

In Stock, Qty 7

0

7

Cub Cadet KH-12-755-03

Kit, Retainer

$5.99

$

In Stock, only 2 left!

0

8

Cub Cadet KH-12-173-01

Cap, Valve Spring
(Superseded to KH-25-173-28-S)

$8.49

$

In Stock, Qty 5

0

9

Cub Cadet KH-24-089-02

Spring, Valve

$

$

Not available

10

Cub Cadet KH-66-018-02-S

Retainer
(Superseded to KH-235011-S)

$6.49

$

In Stock, only 2 left!

0

11

Cub Cadet KH-24-100-10-S

Nut, Flg, M8 x 1.25

$4.49

$

Usually ships in 2-5 days

0

12

Cub Cadet KH-220534

Washer, Flat, 5/16"

$

$

Not available

13

Cub Cadet KH-66-032-05-S

Seal, Valve Stem
(Superseded to KH-25-032-14-S)

$11.99

$

In Stock, Qty 8

0

14

Cub Cadet KH-66-318-27-S

Kit, Cylinder Head (#1 Side)

$

$

Not available

15

Cub Cadet KH-66-841-01-S

Kit, Cyl Head Gasket (#1 Side)

Note: (Incl. Ref No. 11 [Qty 4], 12 [Qty 4], KH-24-041-49-S & KH-66-041-05-S)

$71.99

$

In Stock, only 1 left!

0

16

Cub Cadet KH-24-016-01

Valve, Exhaust (Std)
(Superseded to KH-32-016-01-S)

$15.99

$

In Stock, only 4 left!

0

16

Cub Cadet KH-24-016-02

Valve, Exhaust (.25)

$

$

Not available

17

Cub Cadet KH-24-017-01

Valve, Intake (Std)

$

$

Not available

17

Cub Cadet KH-24-017-02

Valve, Intake (.25)

$

$

Not available

18

Cub Cadet KH-66-072-03-S

Stud

$9.49

$

Usually ships in 2-5 days

0

19

Cub Cadet KH-12-445-05

Strap, Lifting
(Superseded to KH-25-445-02-S)

$2.99

$

In Stock, only 1 left!

0

20

Cub Cadet KH-X-22-11

Washer, Int Tooth Lock 1/4

$

$

Not available

21

Cub Cadet KH-M-645016-S

Screw, Flg Thd Frm M6x1.0x16

$3.99

$

In Stock, Qty 15

0

22

Cub Cadet KH-25-351-04-S

Kit, Hyd Valve Lifter
(Superseded to KH-25-351-11-S)

Note: (Incl KH-25-357-14-S)

$23.99

$

In Stock, only 4 left!

0

23

Cub Cadet KH-24-755-66

Kit, Valve Train

Note: (Incl. Ref No.24, 27, 29)

$

$

Not available

24

Cub Cadet KH-24-411-05

Rod, Push

$

$

Not available

25

Cub Cadet KH-66-841-04-S

Kit, Cyl Head Gasket (#2 Side)

Note: (Incl. Ref No. 11 [Qty 4], 12 [Qty 4], KH-24-041-49-S & KH-66-041-05-S)

$71.99

$

In Stock, only 2 left!

0

26

Cub Cadet KH-66-318-30-S

Kit, Cylinder Head (#2 Side)

$361.99

$

Usually ships in 2-5 days

0

27

Cub Cadet KH-25-186-01

Arm, Rocker

$

$

Not available

28

Cub Cadet KH-25-139-62-S

Plug, Pipe Ctsk, 3/8

$3.49

$

In Stock, only 2 left!

0

29

Cub Cadet KH-24-599-02-S

Pivot, Rocker Arm

$2.49

$

In Stock, Qty 8

0

30

Cub Cadet KH-66-086-07-S

Screw, Rocker Arm Pivot
(Superseded to KH-M-640034-S)

$2.49

$

In Stock, Qty 18

0

31

Cub Cadet KH-66-096-11-S

Kit, Rocker Cover

Note: (Incl. Ref No. 6)

$36.99

$

In Stock, only 1 left!

0

32

Cub Cadet KH-24-402-03

Reed, Breather
(Superseded to KH-24-402-06-S)

$3.49

$

Usually ships in 3-6 days

0

33

Cub Cadet KH-66-018-04-S

Retainer, Reed

$4.99

$

In Stock, Qty 6

0

34

Cub Cadet KH-M-0545010

Screw, Flg Thd Frm, M5x.8x10

$

$

Not available

35

Cub Cadet KH-24-050-11-S

Filter, Breather

$2.49

$

Usually ships in 2-5 days

0

36

Cub Cadet KH-24-041-51-S

Gasket, Breather
(Superseded to KH-24-041-67-S)

$13.99

$

In Stock, Qty 9

0

37

Cub Cadet KH-24-096-86-S

Cover, Breather
(Superseded to KH-24-033-01)

$

$

Not available

38

Cub Cadet KH-M-645020-S

Screw, Flg Thd Frm, M6x1.0x20
(Superseded to KH-25-086-396-S)

$2.49

$

In Stock, only 1 left!

0

39

Cub Cadet KH-25-237-08-S

Clamp, Band Spring Hose
(Superseded to KH-25-237-37-S)

$2.49

$

In Stock, Qty 11

0

40

Cub Cadet KH-66-326-34-S

Hose Assembly, Breather

$21.99

$

Usually ships in 2-5 days

0

Cub Cadet KH-24-041-49-S

Gasket, Exhaust

Note: (Not Shown)

$

$

Not available

Cub Cadet KH-66-041-05-S

Gasket, Intake Manifold

Note: (Not Shown)

$2.49

$

In Stock, only 3 left!

0

Cub Cadet KH-25-357-14-S

Lubricant, Camshaft

Note: (Not Shown)

$2.49

$

In Stock, only 3 left!

0
