Volunteer 467 Tracker EFI Camo (37AM467D710) - Cub Cadet 4x4 Utility Vehicle (SN: 1H318G & Before) EFI Engine Engine Controls Parts Diagram

4x4 Utility Vehicle

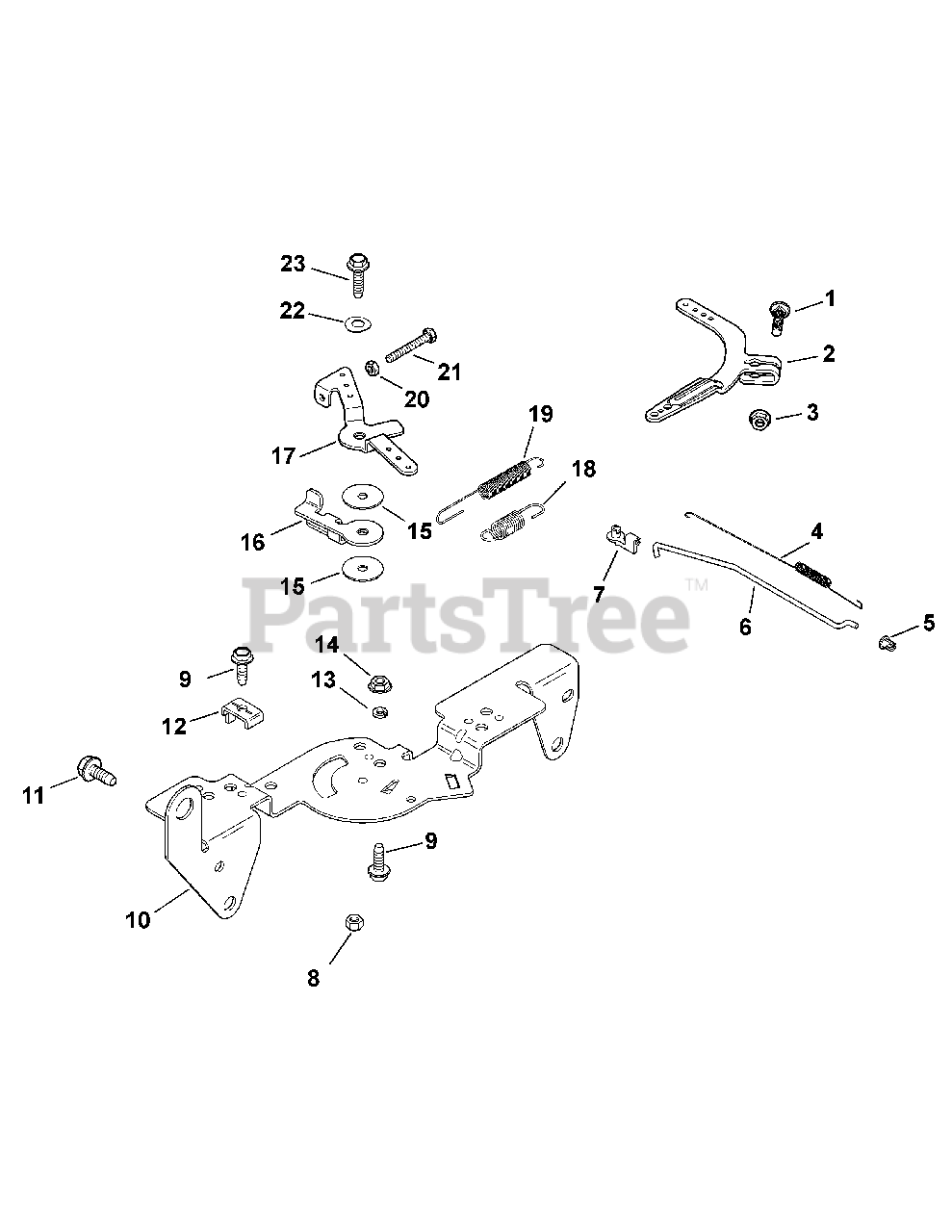

EFI Engine Engine Controls Parts Diagram

  • Title
1

Cub Cadet KH-24-211-03-S

BOLT, RD HD SQ NECK M6X1.0X25

$2.49

$

In Stock, Qty 15

0

2

Cub Cadet KH-24-090-51-S

LEVER, GOVERNOR
(Superseded to KH-24-090-69-S)

$8.99

$

In Stock, only 1 left!

0

3

Cub Cadet KH-M-641060-S

NUT, FLG M6X1.0

$4.49

$

In Stock, Qty 8

0

4

Cub Cadet KH-24-089-01

SPRING, LINKAGE

$

$

Not available

5

Cub Cadet KH-25-158-08

BUSHING, LINKAGE RETAINING

$5.99

$

Usually ships in 2-5 days

0

6

Cub Cadet KH-24-079-01

LINKAGE, THROTTLE

$

$

Not available

7

Cub Cadet KH-25-158-11

BUSHING, THROTTLE LINKAGE

$

$

Not available

8

Cub Cadet KH-M-547050-S

NUT, LOCK M5X.8

$2.49

$

In Stock, only 2 left!

0

9

Cub Cadet KH-M-545016-S

SCREW, FLG THD FRM M5X0.8X16
(Superseded to KH-25-086-398-S)

$3.99

$

Usually ships in 2-5 days

0

10

Cub Cadet KH-24-126-56

BRACKET, CONTROL
(Superseded to KH-24-126-176-S)

$

$

Not available

11

Cub Cadet KH-M-645016-S

SCREW, FLG THD FRM M6X1.0X16

$3.99

$

In Stock, Qty 15

0

12

Cub Cadet KH-12-237-01

CLAMP, CABLE
(Superseded to KH-25-237-53-S)

$3.99

$

Usually ships in 3-6 days

0

13

Cub Cadet KH-X-20-1

WASHER, SPRING LOCK 1/4"

$

$

Not available

14

Cub Cadet KH-M-541050-S

NUT, FLG M5X.8

$2.99

$

In Stock, Qty 10

0

15

Cub Cadet KH-24-468-01

WASHER, FLAT 5.5 MM

$

$

Not available

16

Cub Cadet KH-24-090-07

LEVER, THROTTLE ACTUATOR
(Superseded to KH-24-090-65-S)

$5.49

$

In Stock, only 1 left!

0

17

Cub Cadet KH-24-090-13

LEVER, THROTTLE CONTROL

$

$

Not available

18

Cub Cadet KH-24-089-49-S

SPRING, GOVERNOR

$8.99

$

In Stock, only 3 left!

0

19

Cub Cadet KH-24-089-51-S

SPRING, THROTTLE LIMITER

$5.49

$

In Stock, only 1 left!

0

20

$2.49

$

In Stock, only 4 left!

0

21

Cub Cadet KH-M-401030

SCREW, CAP M4X.7X30

$

$

Not available

22

Cub Cadet KH-41-468-03

WASHER, SPRING 1/4"

$

$

Not available

23

Cub Cadet KH-M-545020-S

SCREW, FLG THD FRM M5X.8X20
(Superseded to KH-25-086-473-S)

$2.49

$

In Stock, Qty 6

0
