Volunteer 467 EFI Camo (37AM467D710) - Cub Cadet 4x4 Utility Vehicle (SN: 1I018G - 1I019G) Kohler EFI Engine & Transmission Accessories Parts Diagram

4x4 Utility Vehicle

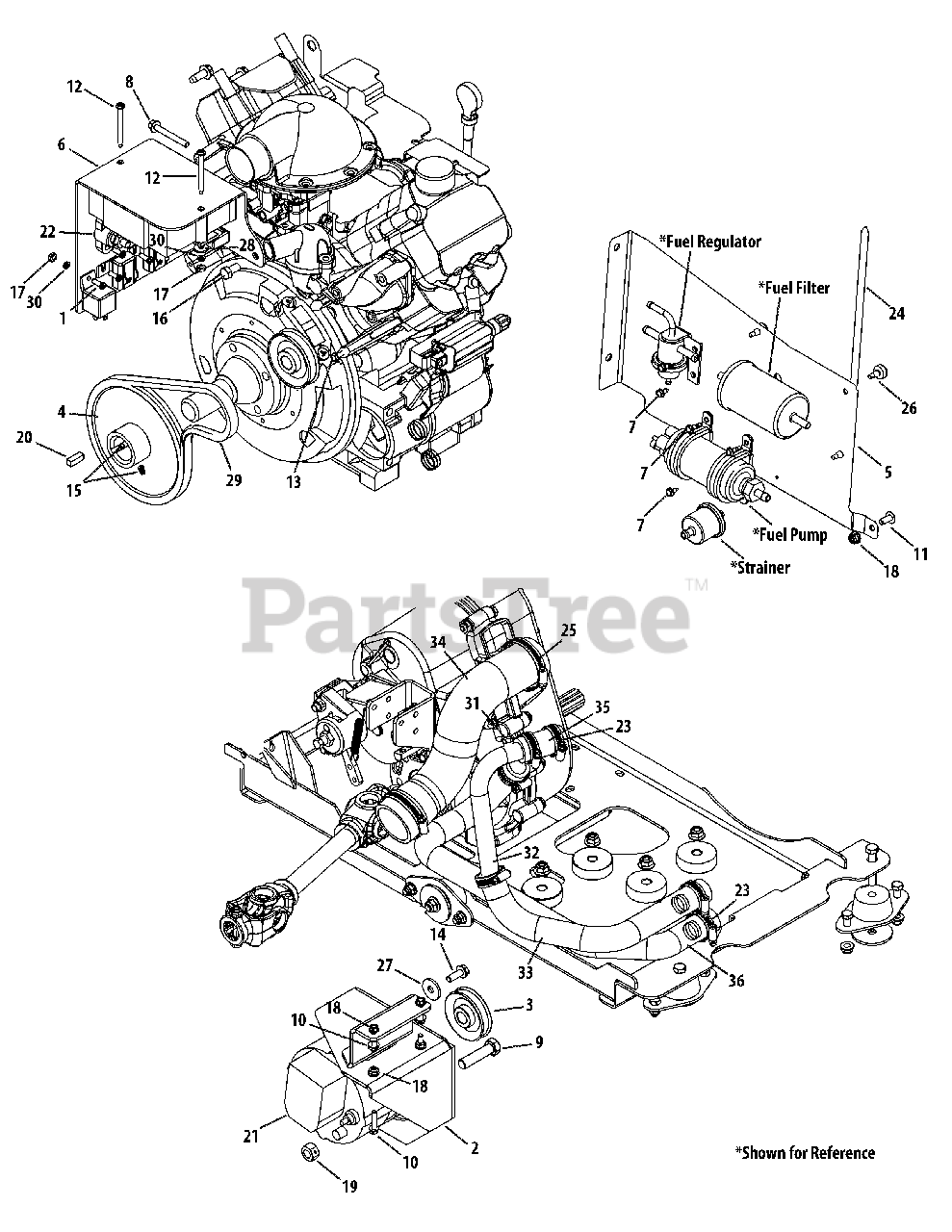

Kohler EFI Engine & Transmission Accessories Parts Diagram

  • Title

1

Cub Cadet 791-181862

Screw
(Superseded to 1964)

$4.49

$

In Stock, Qty 20+

0

2

Cub Cadet 607-04227-0637

Supt, Asm, Altnr, UV, Kohler

$112.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 756-04097

Pulley, 2.65 OD x 3L

$108.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 756-04357

Pulley, 6.00 OD x 1.125

$102.99

$

In Stock, only 1 left!

0

5

Cub Cadet 707-05161-0637

Brkt, Fuel System, Kohler EFI

$63.99

$

Usually ships in 3-6 days

0

6

Cub Cadet 707-05167-0637

Brkt, Electrical, Kohler EFI

$56.99

$

Usually ships in 3-6 days

0

7

Cub Cadet 910-0224

Screw, #10-16 x .500

$3.99

$

In Stock, Qty 20+

0

8

Cub Cadet 710-04192

Screw, M6-1

$

$

Not available

9

Cub Cadet 710-0489

Hhcs, 1/2-13 x 2.00

$7.49

$

Usually ships in 3-6 days

0

10

Cub Cadet 710-0788

Scr, tt, 1/4-20 x 1.00

$7.49

$

In Stock, only 2 left!

0

11

Cub Cadet 710-0946

Scr, Mach, 1/4-20 x .625

$3.99

$

Usually ships in 3-6 days

0

12

Cub Cadet 710-1184

Scr, Mach, #10-32 x 2.00

$

$

Not available

13

Cub Cadet 710-1237

Scr, #10-32 x .625

$4.49

$

Usually ships in 3-6 days

0

14

Cub Cadet 710-1238

Scr, 5/16-18 x .875
(Superseded to 710-1238A)

$4.49

$

In Stock, Qty 20+

0

15

Cub Cadet 1903631

Scr, 1/4-20 x 3/8

$3.99

$

Usually ships in 3-6 days

0

16

Cub Cadet 710-3138

Hhcs, M8-1.25

$6.99

$

Usually ships in 3-6 days

0

17

Cub Cadet 712-0349

Nut, Hex, #10-32

$4.99

$

In Stock, Qty 5

0

18

Cub Cadet 712-04064

Nut, Flglk, 1/4-20

$3.99

$

In Stock, Qty 20+

0

19

Cub Cadet 712-3022

Nut, Hexlk, 1/2-13

$3.99

$

In Stock, Qty 20+

0

20

Cub Cadet 914-0119

Sq key, 1/4 x .75lg
(Superseded to 714-0119)

$8.49

$

Usually ships in 3-6 days

0

21

Cub Cadet 725-04806

Altrnr, Aux, 65 Amp

$1039.99

$

Usually ships in 3-6 days

0

22

Cub Cadet 725-04661

Elec, Power, Distribution Post

$39.99

$

Usually ships in 3-6 days

0

23

Cub Cadet 726-0174

Clamp, Hose, Adj

$9.99

$

Usually ships in 3-6 days

0

24

Cub Cadet 726-0230

Tie, Cable

$27.99

$

In Stock, only 1 left!

0

25

Cub Cadet 726-0476

Clamp, Hose, Adj

$12.99

$

Usually ships in 3-6 days

0

26

Cub Cadet 735-0271A

Bumper

$8.99

$

In Stock, only 1 left!

0

27

Cub Cadet 936-0231

Wash, Flat, .344 x 1.125 x .12
(Superseded to 736-0231)

$

$

Not available

28

Cub Cadet 936-0400

Wash, Flat, .194 x .62 x .063
(Superseded to 736-0400)

$

$

Not available

29

Cub Cadet 954-04014

Belt, V-Type

$28.99

$

In Stock, only 3 left!

0

30

Cub Cadet 936-0722

Wash, Lock
(Superseded to 736-0722)

$6.99

$

Usually ships in 3-6 days

0

31

Cub Cadet 737-04232

Ftg, Petcock

$21.99

$

Usually ships in 3-6 days

0

32

Cub Cadet 750-04989

Tube, Rdtr

$71.99

$

Usually ships in 3-6 days

0

33

Cub Cadet 751-10258A

Hose, Rdtr

$38.99

$

Usually ships in 3-6 days

0

34

Cub Cadet 751-10677

Hose, Air Inlet

$

$

Not available

35

Cub Cadet 751-10678

Hose, Rdtr, Top Rear

$98.99

$

Usually ships in 3-6 days

0

36

Cub Cadet 751-10679

Hose, Rdtr, Lower Rear

$32.99

$

Usually ships in 3-6 days

0
