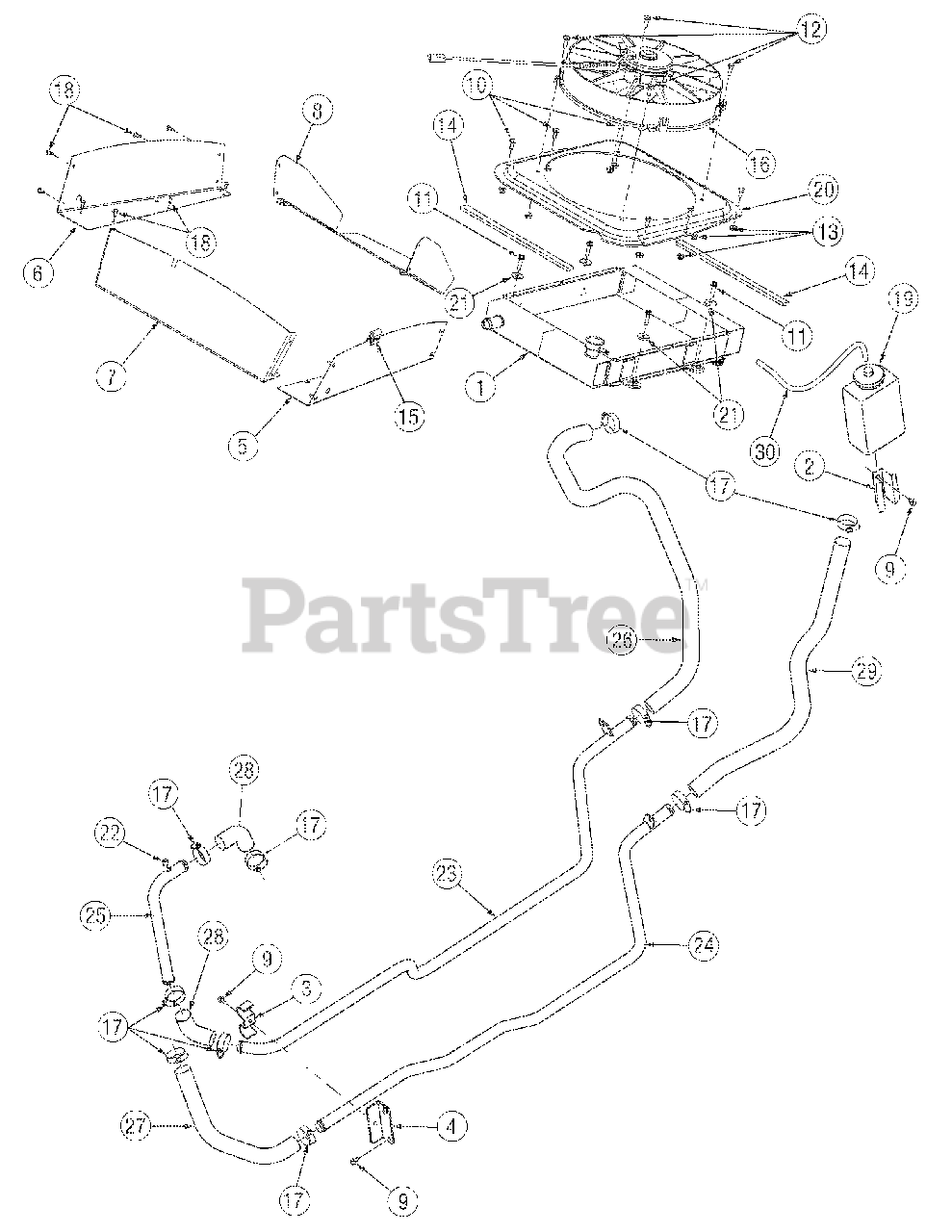

Volunteer 467 Diesel Camo (37AJ467D710) - Cub Cadet 4x4 Utility Vehicle (SN: 1B017G & Before) Diesel Radiator Parts Diagram

4x4 Utility Vehicle

Diesel Radiator Parts Diagram

  • Title
1

Cub Cadet 651-04148

Radiator Asm, zin Core
(Superseded to 951-04148)

$1149.99

$

Usually ships in 3-6 days

0

Cub Cadet 759-04130

Radiator Drain Plug

Note: not shown

$

$

Not available

Cub Cadet 759-04131

Radiator Temp Sensor
(Superseded to 959-04131)

Note: not shown

$

$

Not available

Cub Cadet 759-04132

Radiator Mount Gromment

Note: not shown

$5.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 703-05461A

Brkt, over Flow, bottle

Variations

Cub Cadet 703-05461A-0637

USE 703-05461B-0637 BRACKET-O - POWDER BLACK (0637)

$66.99

$

Usually ships in 3-6 days

0

$55.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 707-04659

Brkt, tube, uv

Variations

Cub Cadet 707-04659-0637

BRACKET:TUBE:UV - POWDER BLACK (0637)

$16.99

$

Usually ships in 3-6 days

0

$14.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 707-04697

Brkt, rdtr Hose

Variations

Cub Cadet 707-04697-0637

BRACKET:RADIATOR HOSE - POWDER BLACK (0637)

$31.99

$

Usually ships in 3-6 days

0

$27.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 707-04894

Shroud, Radiator, RH
(Superseded to 707-04894-0637)

Variations

Cub Cadet 707-04894-0637

SHROUD:4X4 UV:CAT - POWDER BLACK (0637)

$41.99

$

Usually ships in 3-6 days

0

$41.99

$

Usually ships in 3-6 days

0

6

Cub Cadet 707-04895

Shroud, Radiator, LH
(Superseded to 707-04895-0637)

Variations

Cub Cadet 707-04895-0637

SHROUD:4X4 UV:CAT - POWDER BLACK (0637)

$41.99

$

Usually ships in 3-6 days

0

$41.99

$

Usually ships in 3-6 days

0

7

Cub Cadet 707-04896

Shroud, Radiator, Rear
(Superseded to 707-04896-0637)

Variations

Cub Cadet 707-04896-0637

SHROUD:4X4 UV:CAT - POWDER BLACK (0637)

$44.99

$

Usually ships in 3-6 days

0

$44.99

$

Usually ships in 3-6 days

0

8

Cub Cadet 707-04897

Shroud, Radiator, Front
(Superseded to 707-04897-0637)

Variations

Cub Cadet 707-04897-0637

SHROUD:4X4 UV:CAT - POWDER BLACK (0637)

$56.99

$

Usually ships in 3-6 days

0

$56.99

$

Usually ships in 3-6 days

0

9

Cub Cadet 710-0599

Scr, tt, 1/4-20, 0.500, hxindwsh

$4.49

$

In Stock, Qty 20+

0

10

Cub Cadet 710-0751

Hhcs, 1/4-20 x .62 GR5

$3.99

$

In Stock, Qty 20+

0

11

Cub Cadet 710-0788

Scr, tt, 1/4-20, 1.000, hxindwsh

$7.49

$

In Stock, only 2 left!

0

12

Cub Cadet 710-3015

HHCS, 1/4-20 x .75 GR5

$3.99

$

In Stock, Qty 20+

0

13

Cub Cadet 712-04064

Nut, flglk, 1/4-20, grf, nylon

$3.99

$

In Stock, Qty 20+

0

14

Cub Cadet 722-3022

Tape, .625 Wide x .25 Thk Foam
(Superseded to 722-3022A-12)

$18.99

$

Usually ships in 3-6 days

0

15

Cub Cadet 723-3061

Heat Baffle Seal

$2.49

$

Usually ships in 3-6 days

0

16

Cub Cadet 725-04224

Fan, electric, 12v
(Superseded to 725-04224A)

$

$

Not available

17

Cub Cadet 726-0174

Clamp, hose, adj

$9.99

$

Usually ships in 3-6 days

0

18

Cub Cadet 728-0123

Pop Rivet 3/16 Dia x .450, sty1
(Superseded to 928-0123)

$4.99

$

Usually ships in 3-6 days

0

19

Cub Cadet 731-04731

Cntnr, over Flow, coolant

$143.99

$

Usually ships in 3-6 days

0

20

Cub Cadet 731-05688

Shroud, Fan Mount

$178.99

$

Usually ships in 3-6 days

0

21

Cub Cadet 736-0176

Wash, flat, .265 x .938 x .120

$4.99

$

In Stock, only 4 left!

0

22

Cub Cadet 737-04146

Plug, pipe, 1/8-27 Npt, HHCS

$

$

Currently unavailable

23

Cub Cadet 750-04557

Tube, rdtr 4x4

Variations

Cub Cadet 750-04557-0637

USE 750-04557 TUBE:RDTR:4X4 - POWDER BLACK (0637)

$127.99

$

Usually ships in 3-6 days

0

$127.99

$

Usually ships in 3-6 days

0

24

Cub Cadet 750-04558

Tube, rdtr 4x4

Variations

Cub Cadet 750-04558-0637

TUBE:RDTR:4X4 (POWDER BLACK) - POWDER BLACK (0637)

$

$

Not available

$

$

25

Cub Cadet 750-04608

Tube, rdtr, 4x4 Rr

Variations

Cub Cadet 750-04608-0637

TUBE:RDTR:4X4:RR - POWDER BLACK (0637)

$

$

Not available

$

$

26

Cub Cadet 751-10256

Hose, rdtr, frt 4x4

$65.99

$

Usually ships in 3-6 days

0

27

Cub Cadet 751-10258A

Hose, rdtr, rr 4x4

$38.99

$

Usually ships in 3-6 days

0

28

Cub Cadet 751-10260

Hose, rdtr, rr 4x4
(Superseded to 751-10260A)

$

$

Not available

29

Cub Cadet 751-10261

Hose, rdtr, frt 4x4

$65.99

$

Usually ships in 3-6 days

0

30

Cub Cadet 751-10377

Tube, overflow, rdtr

$8.99

$

Usually ships in 3-6 days

0
